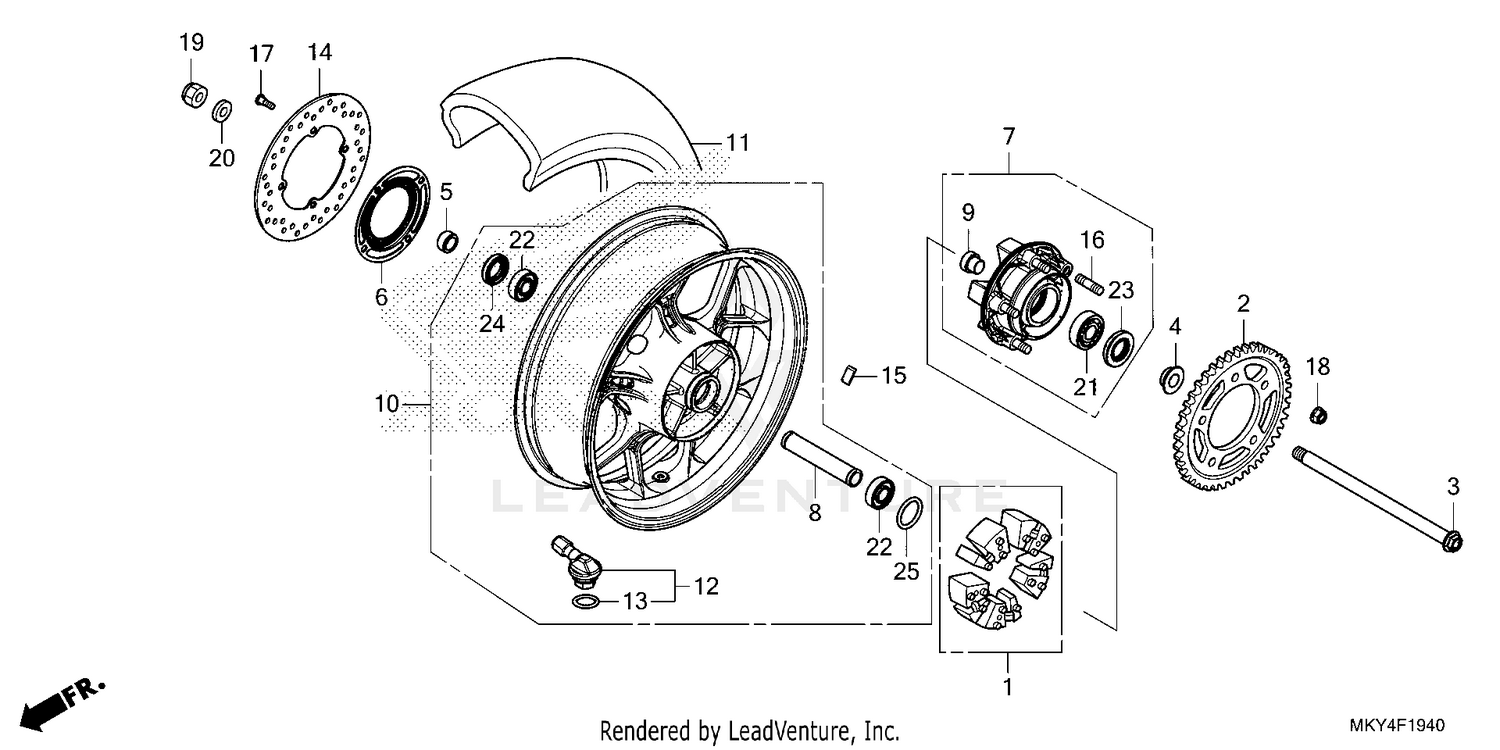

| Ref | Part Number | Description |
|---|
| 1 |
06410-MGS-D30 |
DAMPER SET, WHEEL Price: $69.60 |
| 2 |
41201-MKN-D51 |
SPROCKET, FINAL DRIVEN (42T) This part replaces 41201-MKN-D50. Price: $72.51 |
| 3 |
42301-MKY-D50 |
AXLE, RR. WHEEL Price: $29.98 |
| 4 |
42311-MER-D00 |
COLLAR, L. RR. WHEEL SIDE Price: $21.33 |
| 5 |
42312-MER-D00 |
COLLAR, RR. BRAKE SIDE Price: $12.45 |
| 6 |
42515-MKN-D50 |
RING, RR. PULSER Price: $54.65 |
| 7 |
42615-MJE-D00 |
FLANGE SUB-ASSY., RR. DRIVEN Price: $151.44 |
| 8 |
42620-MKN-D50 |
COLLAR, RR. AXLE DISTANCE Price: $23.38 |
| 9 |
42625-MER-D00 |
COLLAR B, RR. WHEEL DISTANCE Price: $21.27 |
| 10 |
42650-MKY-D50ZB |
WHEEL SUB-ASSY., RR. (TYPE1) (WOL) Price: $444.07 |
| 11 |
42711-MKN-D52 |
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP) Price: $134.12 |
| 12 |
42755-MKA-D81 |
VALVE ASSY., CLAMP IN Price: $20.09 |
| 13 |
42758-MKA-D81 |
O-RING Price: $1.75 |
| 14 |
43251-MKY-D51 |
DISK, RR. BRAKE Price: $102.34 |
| 15 |
44721-MGH-H21 |
WEIGHT, BALANCE (10G) Price: $4.05 |
| 15 |
44722-MGH-H21 |
WEIGHT, BALANCE (15G) Price: $4.85 |
| 15 |
44723-MGH-H21 |
WEIGHT, BALANCE (20G) Price: $4.63 |
| 16 |
90102-MAS-000 |
BOLT 2, STUD (12X25) Price: $5.04 |
| 17 |
90105-MGS-D30 |
BOLT, DISK (8X25) Price: $3.55 |
| 18 |
90306-KGH-901 |
NUT, U (12MM) (FUJI SEIMITSU) Price: $2.93 |
| 19 |
90306-MJE-D01 |
NUT, U (18MM) Price: $11.02 |
| 20 |
90401-KZ4-890 |
WASHER (18X32X2) Price: $5.62 |
| 21 |
91051-MAS-003 |
BEARING, RADIAL BALL (63/22) Price: $48.51 |
| 22 |
91053-MKY-D51 |
BEARING, RADIAL BALL (6204UU) (NSK) Price: $18.38 |
| 23 |
91252-MAS-003 |
DUST SEAL (30X56X7.5) Price: $14.69 |
| 24 |
91253-MAE-003 |
DUST SEAL (30X47X7.5) Price: $19.33 |
