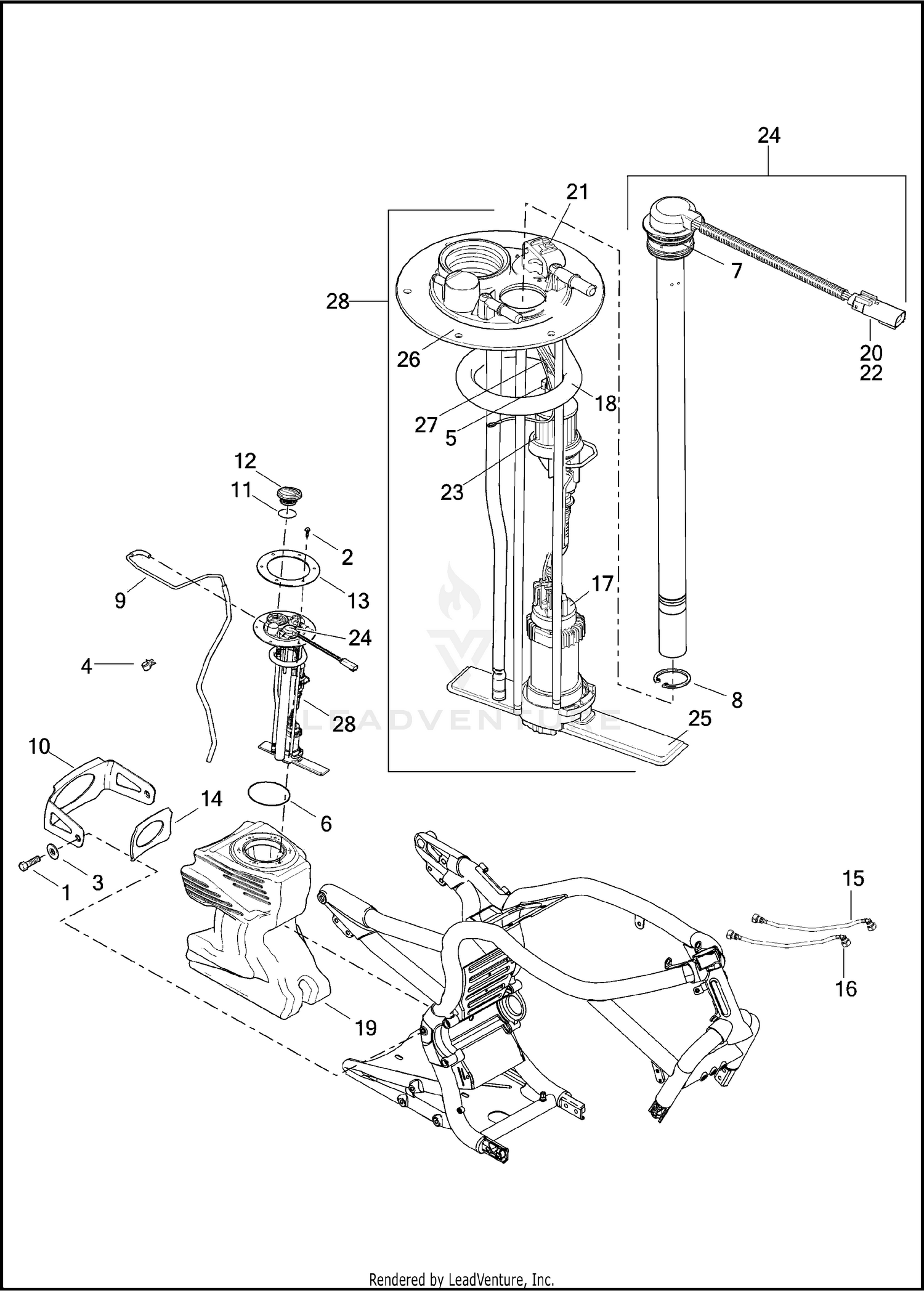

| Ref | Part Number | Description |
|---|
| 1 |
3700MA |
SCREW M10 X 1.5 X 30 SOCKET BUTTON HD. Price: $1.22 |
| 2 |
10201472 |
KIT,SCR,HEX CAP,W/WASHER This part replaces 4484M. Price: $16.98 |
| 3 |
6856M |
WASHER M10 Not Available Price: |
| 4 |
10224 |
CLIP Not Available Price: |
| 5 |
10297 |
CLAMP Price: $16.70 |
| 6 |
11570 |
O-RING Price: $7.56 |
| 7 |
11630 |
O-RING Price: $1.15 |
| 8 |
11632 |
SNAP RING Price: $6.05 |
| 9 |
27431-07C |
TUBE ASSEMBLY TANK TO ATMOSPHERE (ALL EXCEPT CALIFORNIA AND BRAZIL) Not Available This part replaces 27431-07B. Price: |
| 10 |
60970-07 |
BRACKET Not Available Price: |
| 11 |
61100194 |
CAP,FUEL,GASKET This part replaces 61109-85D. Price: $20.27 |
| 12 |
61274-92B |
CAP,FUEL,RH-THREAD,VAC VENTED This part replaces 61274-92. Price: $18.61 |
| 13 |
61284-06 |
CLAMP RING Not Available Price: |
| 14 |
61285-06 |
PAD Not Available Price: |
| 15 |
61504-07 |
FUEL LINE PRESSURE Price: $24.10 |
| 16 |
61505-07 |
FUEL LINE RETURN Price: $24.98 |
| 17 |
62109-07 |
FUEL PUMP W/ 75254-04A Price: $116.66 |
| 18 |
62113-07 |
HOSE FILTER TO FUEL Price: $59.49 |
| 19 |
62921-07A |
FUEL TANK ASSEMBLY W/ 61285-06 Not Available Price: |
| 20 |
72169-07 |
TERMINAL PIN Price: $0.58 |
| 21 |
72506-07 |
CONNECTOR 4-WAY Not Available Price: |
| 22 |
72541-07BN |
HOUSING 3-WAY (BROWN) Not Available Price: |
| 23 |
75169-07 |
FILTER PRESSURE SIDE Price: $42.36 |
| 24 |
25701497 |
COVER,RKRA/VALVE,LWR,ASSY,SCRCH CHRM This part replaces 75210-09. Price: $395.92 |
| 25 |
75254-04A |
STRAINER Price: $30.35 |
| 26 |
75272-07 |
FLANGE W/ 72506-07 Price: $114.54 |
| 27 |
75274-07 |
ELECTRICAL HARNESS Price: $37.07 |
