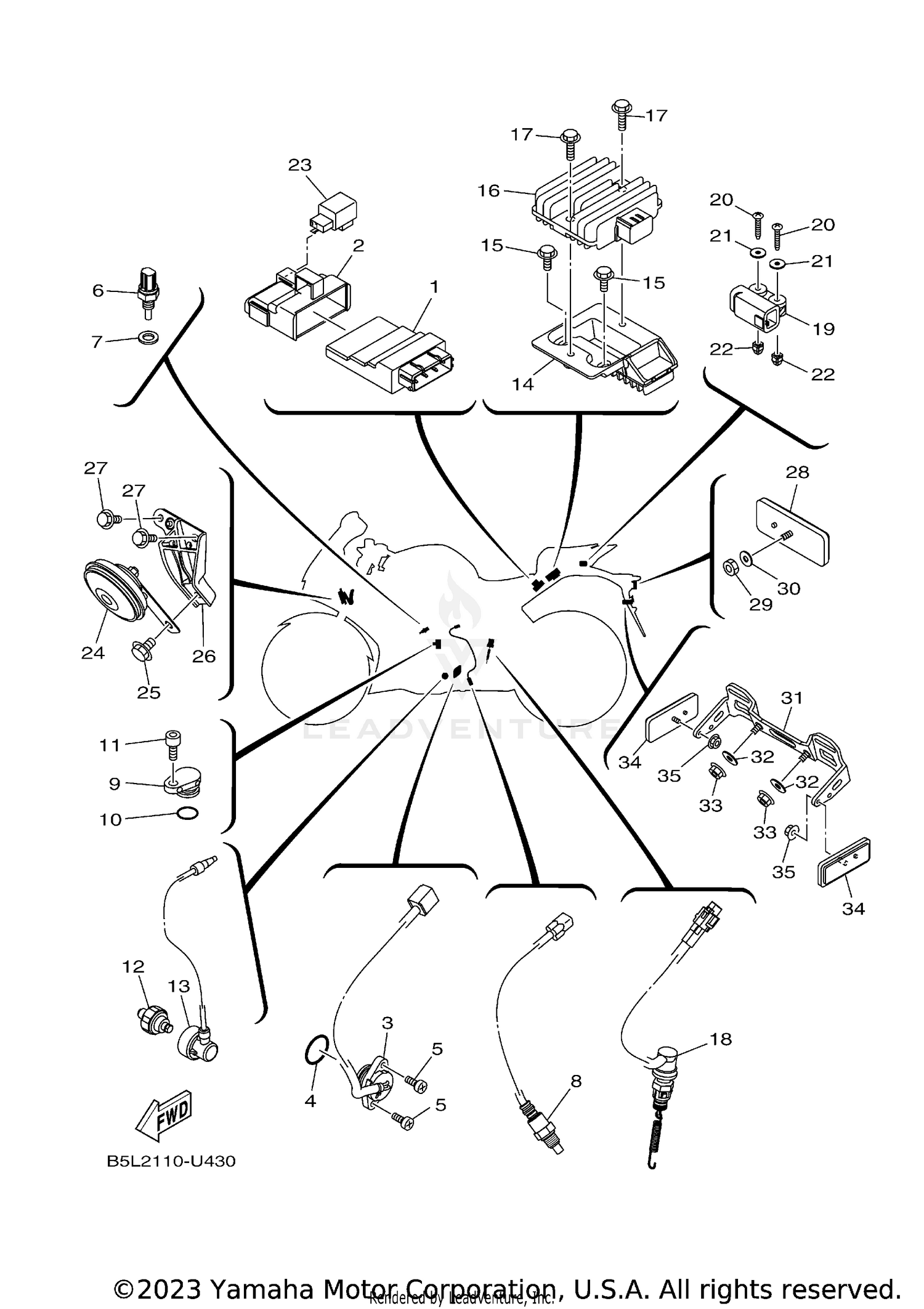

| Ref | Part Number | Description |
|---|
| 1 |
B02-H591A-10-00 |
ENGINE CONTROL UNIT ASSY Price: $341.99 |
| 2 |
1WD-H5546-00-00 |
BAND Price: $7.49 |
| 3 |
1WD-H2540-00-00 |
NEUTRAL SWITCH ASSY Price: $35.99 |
| 4 |
93210-21801-00 |
O-RING Price: $1.55 |
| 5 |
98507-05016-00 |
SCREW, PAN HEAD This part replaces 98502-05016-00. Price: $1.80 |
| 6 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 54P-H3591-00-00. Price: $37.99 |
| 7 |
90430-10804-00 |
GASKET Price: $5.49 |
| 8 |
1WD-H592A-10-00 |
SENSOR OXYGEN This part replaces 1WD-H592A-00-00. Price: $100.99 |
| 9 |
2WD-E5189-00-00 |
PLUG Price: $7.49 |
| 10 |
93210-15566-00 |
O-RING Price: $8.49 |
| 11 |
91332-06016-00 |
BOLT Price: $0.50 |
| 12 |
1WS-82504-01-00 |
OIL PRESSURE SWITCH ASSY This part replaces 1WS-82504-00-00. Price: $76.99 |
| 13 |
1WD-H1315-01-00 |
LEAD WIRE ASSY Price: $16.49 |
| 14 |
1WD-H1961-00-00 |
COVER Price: $61.99 |
| 15 |
95D02-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 16 |
1WD-H1960-00-00 |
RECTIFIER & REGULATOR ASSY Price: $118.99 |
| 17 |
95D02-06025-00 |
BOLT, FLANGE DEEP RE Price: $1.00 |
| 18 |
1WD-H2530-10-00 |
STOP SWITCH ASSY Price: $47.99 |
| 19 |
1WD-H2576-00-00 |
SENSOR, LEAN ANGLE Price: $86.99 |
| 20 |
90160-04009-00 |
SCREW, ROUND TAPPING Price: $8.49 |
| 21 |
90201-04028-00 |
WASHER, PLATE Price: $9.49 |
| 22 |
4B4-84334-00-00 |
NUT, ADJUSTING Price: $5.49 |
| 23 |
3HT-83350-01-00 |
FLASHER RELAY ASSY Price: $61.99 |
| 24 |
1WD-H3371-00-00 |
HORN Price: $34.99 |
| 25 |
95D02-08012-00 |
BOLT, FLANGE DEEP RE Price: $0.75 |
| 26 |
1WD-H3378-00-00 |
STAY, HORN Price: $26.99 |
| 27 |
95D07-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $1.25 |
| 28 |
3C1-H5130-00-00 |
REAR REFLECTOR ASSY Price: $4.20 |
| 29 |
95617-05100-00 |
NUT, U This part replaces 95602-05100-00. Price: $10.49 |
| 30 |
90201-05043-00 |
WASHER, PLATE Price: $8.49 |
| 31 |
2MS-H4751-00-00 |
BRACKET, LICENSE Price: $14.49 |
| 32 |
90201-06055-00 |
WASHER, PLATE Price: $3.20 |
| 33 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95607-06200-00. Price: $2.95 |
| 34 |
3C1-H5130-00-00 |
REAR REFLECTOR ASSY Price: $4.20 |
