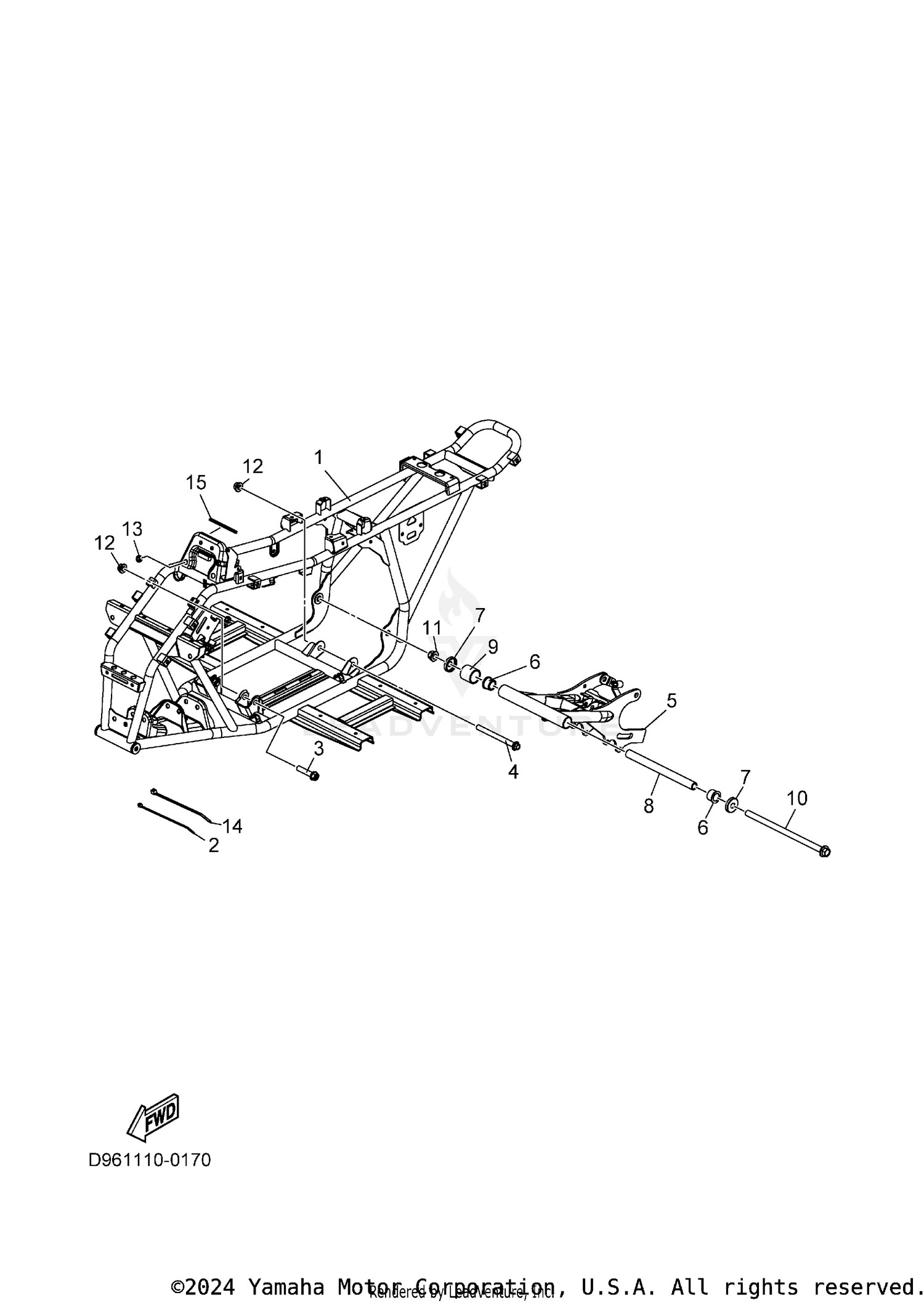

FRAME
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | D96-F1110-00-00 | FRAME COMP. Price: $1,615.99 |
| 2 | BD3-F1646-00-00 | BAND Price: $1.85 |
| 3 | BYS-F6332-00-00 | BOLT Price: $8.99 |
| 4 | BYS-F4178-00-00 | BOLT 3 Price: $22.99 |
| 5 | BYS-F2110-00-00 | REAR ARM COMP. Price: $317.99 |
| 6 | BD3-F2123-00-00 | BUSH 1 Price: $11.49 |
| 7 | BD3-F2128-00-00 | COVER, THRUST 1 Price: $11.49 |
| 8 | BD3-F2126-00-00 | COLLAR, DISTANCE Price: $37.99 |
| 9 | BD3-F2151-00-00 | SEAL, GUARD Price: $8.49 |
| 10 | BD3-F1722-10-00 | BOLT 2 Price: $81.99 |
| 11 | BD3-F1535-10-00 | NUT 1 Price: $17.49 |
| 12 | BYS-F1839-00-00 | NUT Price: $13.99 |
| 13 | BD3-F1719-00-00 | GROMMET Price: $2.40 |
| 14 | BW4-F1647-00-00 | BAND Price: $2.70 |
