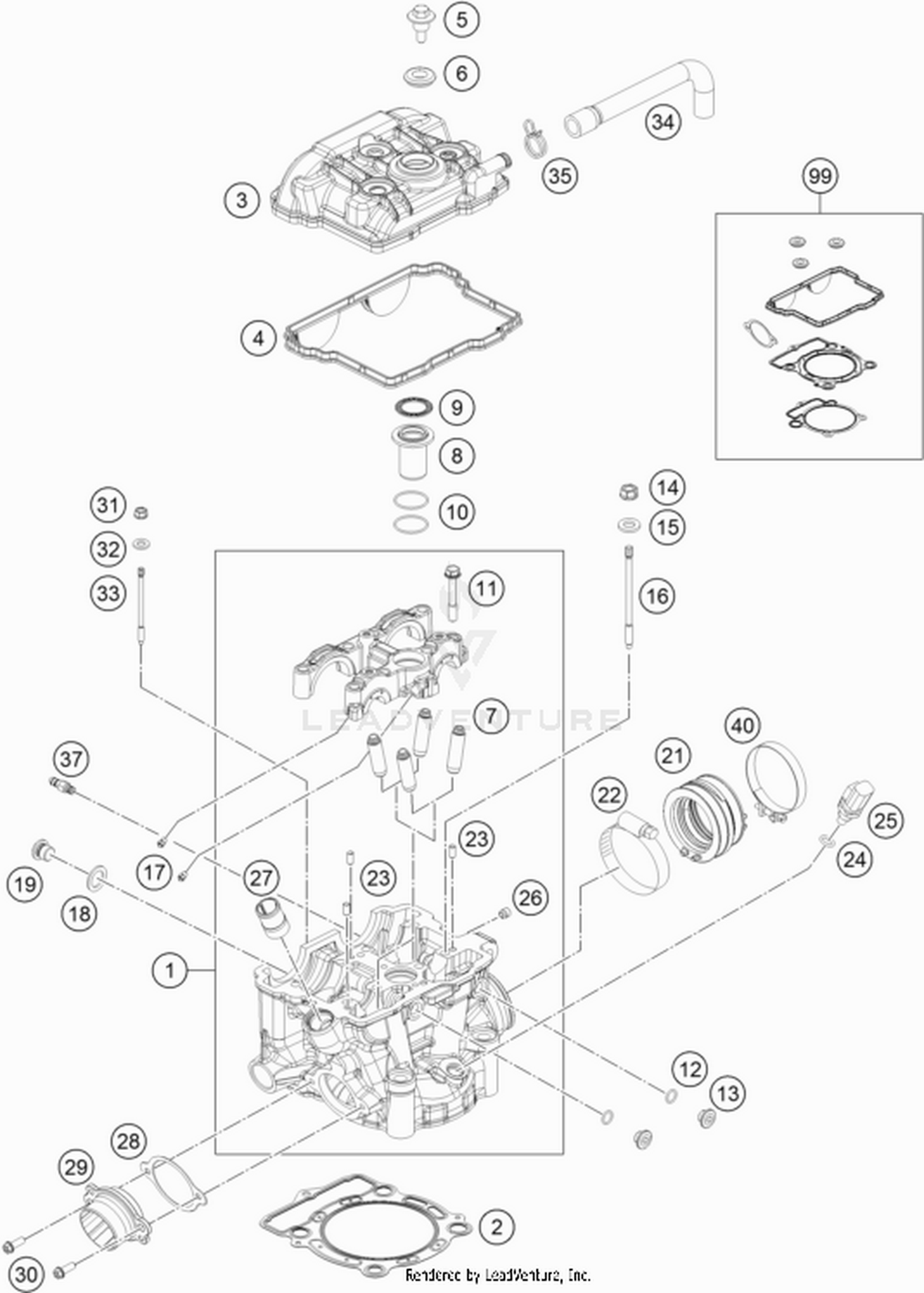

36 CYLINDER HEAD
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 77536020000 | CYLINDER HEAD CPL. Price: Call Us |
| 2 | 77830036085 | CYLINDER HEAD GASKET Price: Call Us |
| 3 | 7723605200033 | VALVE COVER Price: Call Us |
| 4 | 77236053000 | VALVE COVER GASKET Price: Call Us |
| 5 | 77336054150 | VALVE COVER SCREW Price: Call Us |
| 6 | 77036054250 | Sealing element This part replaces 77036054150. Price: Call Us |
| 7 | 77236025001 | VALVE GUIDE INTAKT Price: Call Us |
| 8 | 77236075000 | INSERT SPARK-PLUG SHAFT Price: Call Us |
| 9 | 77336053050 | GASKET SPARK-PLUG SHAFT Price: Call Us |
| 10 | 0770260015 | O-RING 1,5x26 Price: Call Us |
| 11 | 77330067242 | Collar screw M7x1x42 This part replaces 77330067142. Price: Call Us |
| 12 | 07700900151 | O-RING 9x1,5 V80 SH Price: Call Us |
| 13 | 77236080000 | SCREW PLUG Price: Call Us |
| 14 | 77336088210 | COLLAR NUT M10X1,25 SW13 Price: Call Us |
| 16 | 77230044000 | STUD SCREW M10X1,25 Price: Call Us |
| 18 | 58038022000 | CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 21 | 77236044000 | CONNECTION RUBBER EFI Price: Call Us |
| 22 | 61036047000 | Hose clamp GEMI 63mm 05 Price: Call Us |
| 25 | 60011252000 | TEMPERAT.-SENSOR WATER LC8 02 Price: Call Us |
| 26 | 59030296000 | SCREW PLUG Price: Call Us |
| 27 | 58030010200 | SCREW IN NOZZLE M20X1,5 Price: Call Us |
| 28 | 77236041000 | GASKET EXHAUST FLANGE Price: Call Us |
| 29 | 77236139000 | ENGINEFLANGE Price: Call Us |
| 30 | 0025060166 | HH collar screw M6x16 TX30 Price: Call Us |
| 31 | 77336088106 | COLLAR NUT M6X1 SW8 Price: Call Us |
| 32 | 0125060003 | WASHER DIN0125-A 6,4 Price: Call Us |
| 33 | 77330043000 | STUD SCREW M6 Price: Call Us |
| 34 | 77538187000 | Engine vent hose This part replaces 77538087000. Price: Call Us |
| 35 | 58431082100 | YDNAC-clamp 10173 (16MM) Price: Call Us |
| 37 | 60036123000 | Vacuum fitting M6 This part replaces 60036023100. Price: Call Us |
| 40 | 77236048000 | Hose clip GEMI 58 Price: Call Us |
