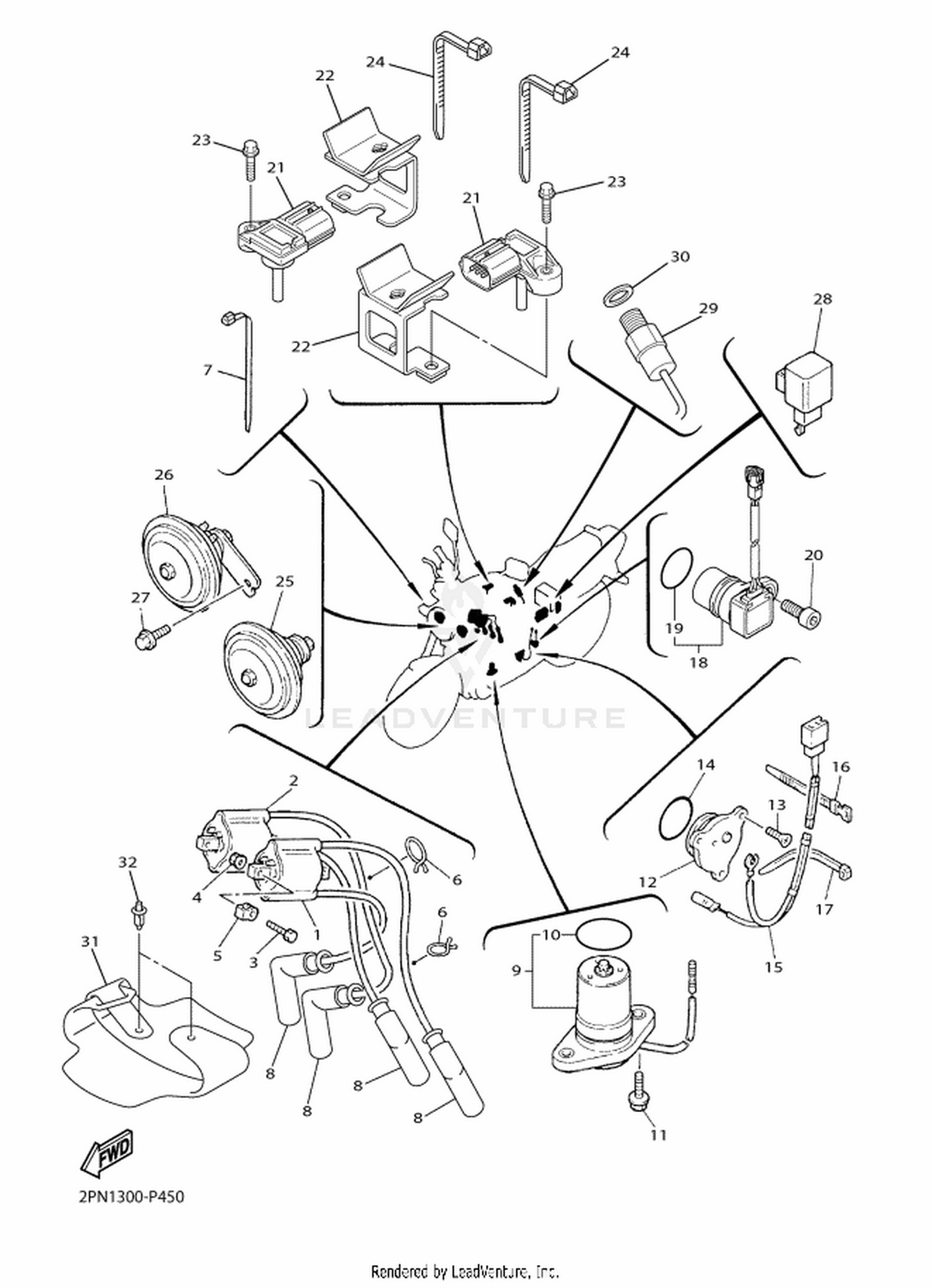

45 ELECTRICAL 1

45 ELECTRICAL 1

Parts (28)

RefPart NumberDescription
1 5EA-82310-11 IGNITION COIL ASSY Price: Call Us
2 5EA-82320-11 IGNITION COIL ASSY Price: Call Us
3 97080-06070 BOLT Price: Call Us
4 95702-06500 NUT, WITH WASHER Price: Call Us
5 4BR-82317-00 DAMPER, IGNITION COIL Price: Call Us
6 90464-16039 CLAMP Price: Call Us
7 90464-13073 CLAMP Price: Call Us
8 5EA-82370-00 PLUG CAP ASSY Price: Call Us
9 5LV-85720-10 OIL LEVEL GAUGE ASSY Price: Call Us
11 95022-06016 BOLT, FLANGE Price: Call Us
12 1L9-82540-00 NEUTRAL SWITCH ASSY Price: Call Us
14 93210-29196 O-RING Price: Call Us
15 2PN-82509-00 WIRE, SUB LEAD Price: Call Us
16 90465-10098 CLAMP Price: Call Us
17 90464-13077 CLAMP Price: Call Us
18 5UX-83755-10 SENSOR, SPEED Price: Call Us
20 90110-06193 BOLT, HEXAGON SOCKET HEAD Price: Call Us
21 2C0-82380-00 SENSOR, PRESSURE Price: Call Us
22 5UX-2119M-00 BRKT., 10 Price: Call Us
23 90110-05038 BOLT, HEXAGON SOCKET HEAD Price: Call Us
24 1UA-82591-00 BAND Price: Call Us
25 4KG-83371-20 HORN Price: Call Us
26 4KG-83371-30 HORN Price: Call Us
27 95807-06012 BOLT, FLANGE Price: Call Us
28 5YU-83350-00 FLASHER RELAY ASSY Price: Call Us
29 5PX-83591-00 THERMO UNIT Price: Call Us
30 90201-12172 WASHER, PLATE Price: Call Us
31 5UX-2117G-01 PROTECTOR Price: Call Us
