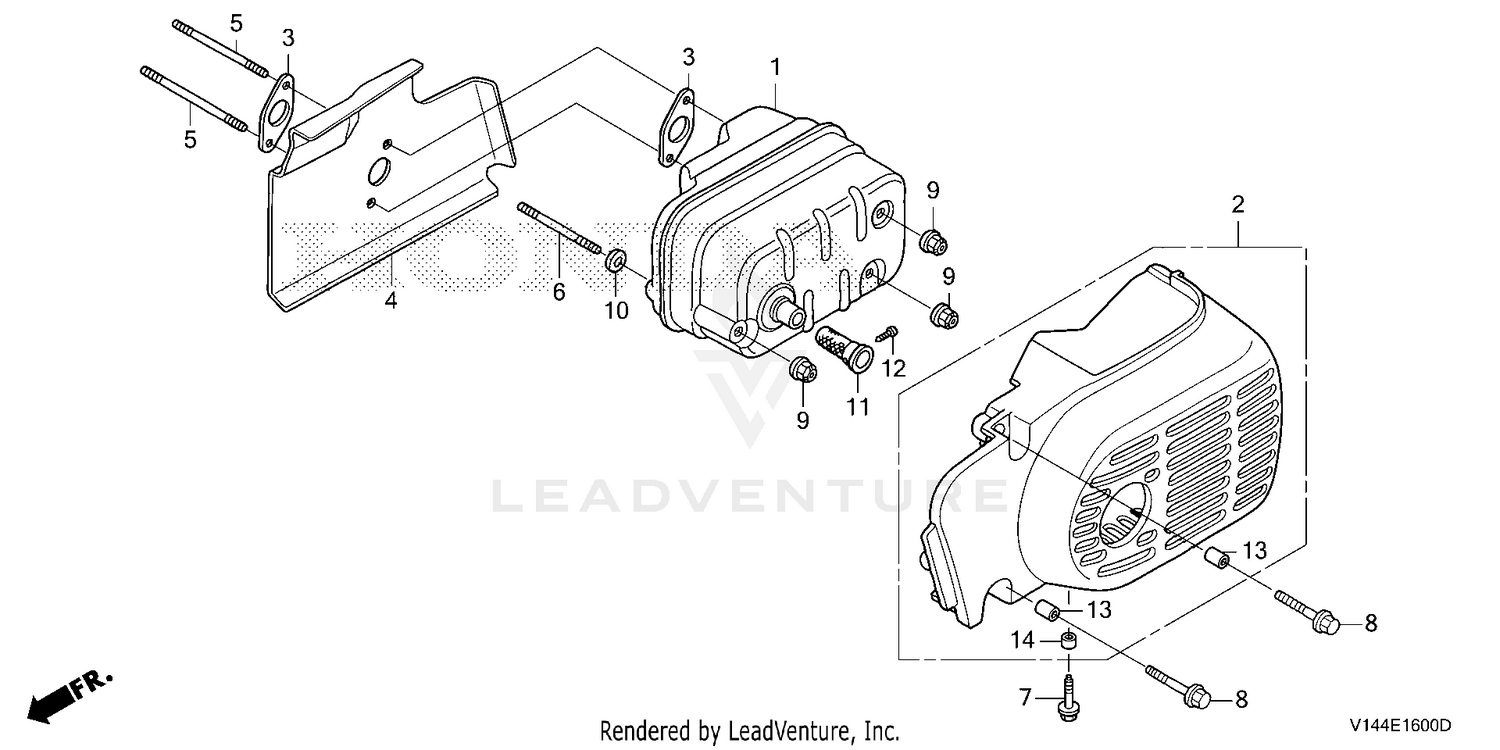

| Ref | Part Number | Description |
|---|
| 1 |
18310-Z0G-620 |
MUFFLER Price: $37.06 |
| 2 |
18320-Z0G-000 |
PROTECTOR, MUFFLER Price: $44.56 |
| 3 |
18381-Z0G-010 |
GASKET, MUFFLER Price: $4.16 |
| 4 |
18515-Z0G-000 |
GUIDE, AIR Price: $8.56 |
| 5 |
90003-Z0G-620 |
BOLT 2, STUD (5X57) Price: $2.24 |
| 6 |
90004-Z0G-620 |
BOLT 2, STUD (5X37) Price: $2.04 |
| 7 |
90012-892-000 |
BOLT, FLANGE (5X16) (Honda Code 0941096). Price: $1.88 |
| 8 |
90014-KCZ-000 |
BOLT, FLANGE (5X25) (CT200) Price: $2.60 |
| 9 |
90136-SM4-901 |
NUT, SELF-LOCK (5MM) Price: $7.70 |
| 10 |
90483-178-000 |
WASHER, STOPPER (14MM) Price: $2.68 |
| 13 |
33720-KCT-690 |
COLLAR, TAILLIGHT MOUNT Price: $3.74 |
