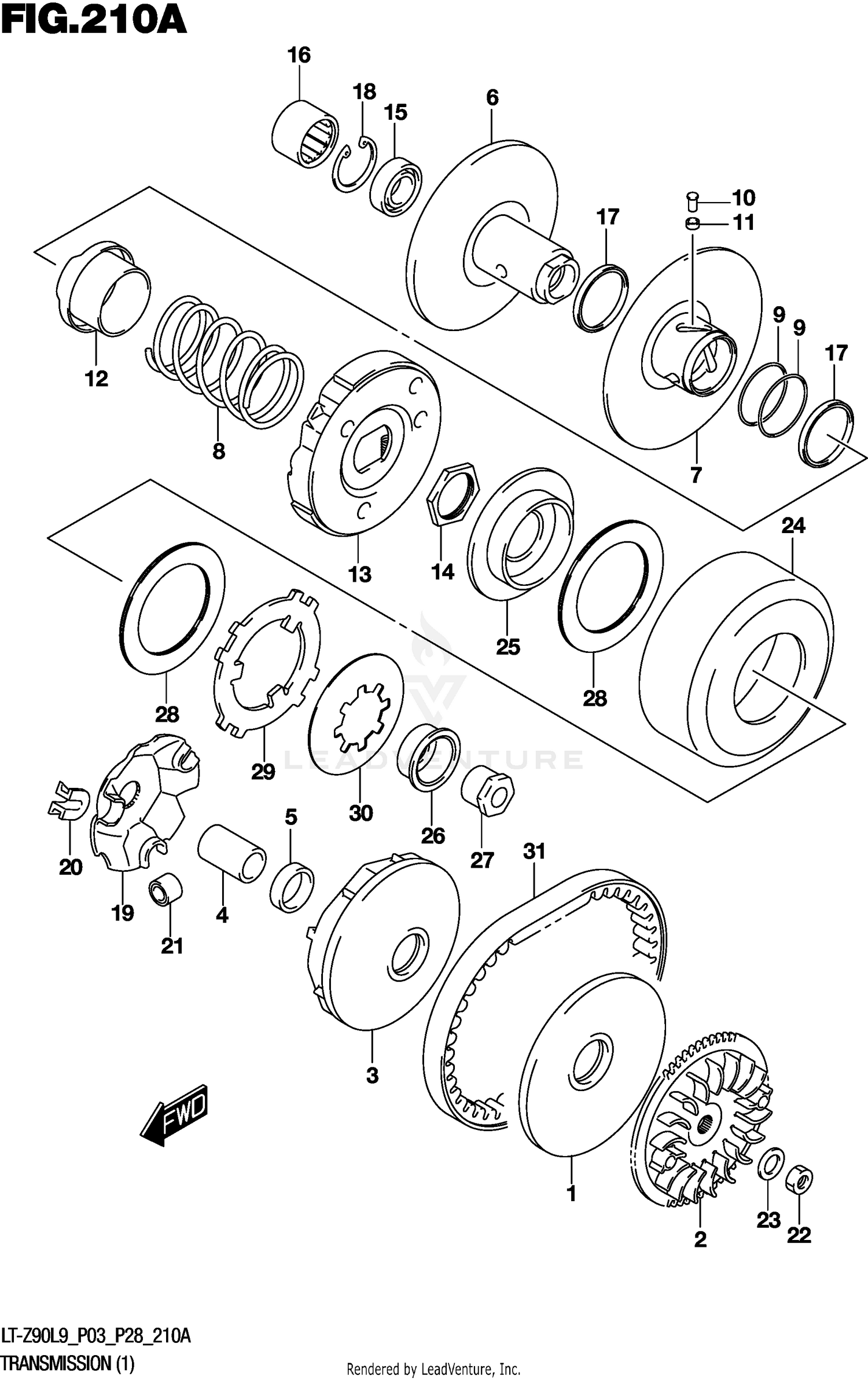

| Ref | Part Number | Description |
|---|
| 1 |
21111-08H00 |
FACE,FIXED DRIVE Price: $39.59 |
| 2 |
21113-08H00 |
FAN,FIXED DRIVE FACE (NT:36) Price: $83.71 |
| 3 |
21120-33G00 |
FACE,MOVABLE DRIVE Price: $104.83 |
| 4 |
21125-33G00 |
SPACER,MOVABLE DRIVE Price: $35.35 |
| 5 |
21128-08H00 |
SPACER,MOVABLE DRIVE STOPPER Price: $6.99 |
| 6 |
21210-33G00 |
FACE,FIXED DRIVEN Price: $125.22 |
| 7 |
21240-33G01 |
FACE,MOVABLE DRIVEN Price: $120.56 |
| 8 |
21243-33G00 |
SPRING,MOVABLE DRIVEN Price: $52.26 |
| 9 |
21245-33G00 |
O-RING,MOVABLE DRIVEN Price: $9.22 |
| 10 |
21248-33G00 |
PIN,MOVABLE DRIVEN Price: $7.72 |
| 11 |
21249-33G00 |
SPACER,MOVABLE DRIVEN PIN Price: $8.46 |
| 12 |
21471-33G00 |
SHEET,MOVABLE DRIVEN Price: $29.42 |
| 13 |
21501-08H00 |
CLUTCH ASSY,SHOE Price: $284.21 |
| 14 |
09140-28004 |
NUT, SHOE CLUTCH Price: $9.99 |
| 15 |
09262-15035 |
BEARING (15X24X5) Price: $61.30 |
| 16 |
09263-20093 |
BEARING (20X26X14) Price: $26.35 |
| 17 |
09284-34004 |
SEAL,OIL,33.2X39X3 (34X39X3) This part replaces 09284-34003. Price: $14.25 |
| 18 |
09381-24005 |
CIRCLIP Price: $4.04 |
| 19 |
21431-33G00 |
PLATE,MOVABLE DRIVE Price: $26.67 |
| 20 |
21481-14F00 |
DAMPER,MOVABLE DRIVE PLATE Price: $8.92 |
| 21 |
21650-21F70 |
ROLLER,MOVABLE DRIVE Price: $17.80 |
| 22 |
09140-12039 |
NUT (M12) Price: $3.77 |
| 23 |
09164-12020 |
WASHER, FIXED DRIVE FACE Price: $2.45 |
| 24 |
21220-29A01 |
HOUSING,CLUTCH Price: $101.51 |
| 25 |
21411-08H00 |
HUB,LIMITER CLUTCH Price: $52.61 |
| 26 |
21412-08H00 |
STOPPER,LIMITER Price: $13.93 |
| 27 |
21413-08H00 |
NUT,CLUTCH HOUSING Price: $6.15 |
| 28 |
21441-29A01 |
PLATE,LIMITER CL FRICTION Price: $22.06 |
| 29 |
21461-29A01 |
PLATE,LIMITER CLUTCH PRESSURE Price: $7.92 |
| 30 |
09164-30003 |
SPRING Price: $14.40 |
