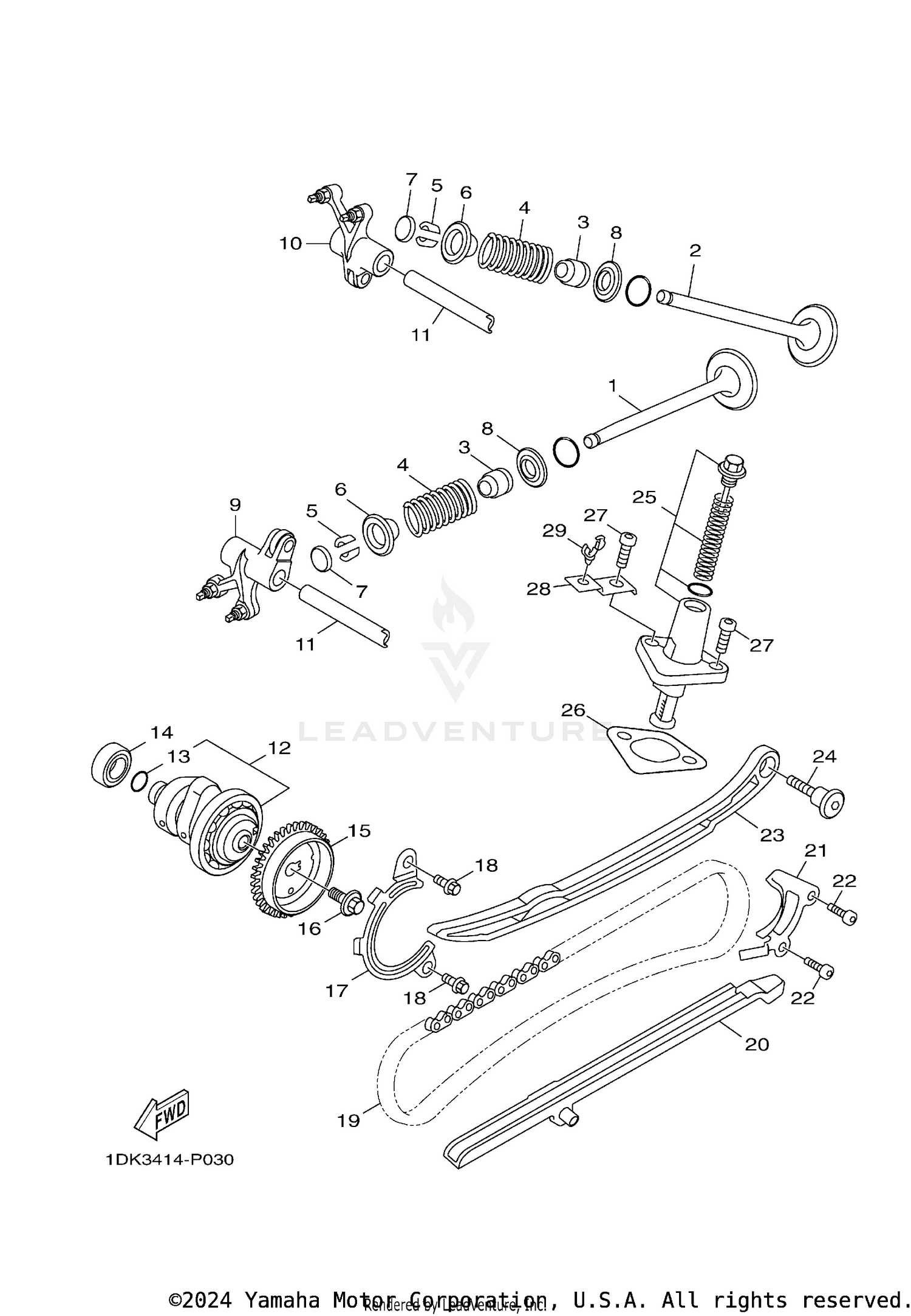

| Ref | Part Number | Description |
|---|
| 1 |
52S-E2111-00-00 |
VALVE, INTAKE Price: $8.99 |
| 2 |
52S-E2121-00-00 |
VALVE, EXHAUST Price: $16.49 |
| 3 |
52S-E2119-00-00 |
SEAL, VALVE STEM Price: $3.80 |
| 4 |
3C1-E2113-00-00 |
SPRING, VALVE INNER Price: $6.49 |
| 5 |
1WG-12118-00-00 |
LOCK, VALVE SPRING RETAINER Price: $9.49 |
| 6 |
52S-E2117-00-00 |
RETAINER, VALVE SPRING Price: $2.99 |
| 7 |
52S-E2169-10-00 |
PAD, ADJUSTING Price: $5.49 |
| 8 |
52S-E2126-00-00 |
SEAT, VALVE SPRING 2 Price: $2.30 |
| 9 |
52S-E2150-01-00 |
VALVE ROCKER ARM ASSY Price: $50.99 |
| 10 |
52S-E2160-01-00 |
VALVE ROCKER ARM ASSY 2 Price: $51.99 |
| 11 |
52S-E2156-00-00 |
SHAFT, ROCKER 2 Price: $6.49 |
| 12 |
1DK-E2170-00-00 |
CAMSHAFT ASSY 1 Price: $64.99 |
| 13 |
93210-09859-00 |
O-RING Price: $0.25 |
| 14 |
93306-001Y9-00 |
BEARING Price: $5.49 |
| 15 |
52S-E1540-00-00 |
CAM CHAIN SPROCKET ASSY 1 Price: $17.49 |
| 16 |
52S-E2157-00-00 |
BOLT Price: $2.10 |
| 17 |
1B9-E111F-00-00 |
PLATE Price: $5.99 |
| 18 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 19 |
94568-75096-00 |
CHAIN Price: $19.49 |
| 20 |
52S-E2231-00-00 |
GUIDE, STOPPER 1 Price: $4.05 |
| 21 |
52S-E2233-00-00 |
PLATE, GUIDE STOPPER 1 Price: $1.45 |
| 22 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 23 |
1DK-E2241-00-00 |
GUIDE, STOPPER 2 Price: $17.49 |
| 24 |
52S-E2228-00-00 |
BOLT Price: $1.80 |
| 25 |
5LW-E2210-00-00 |
TENSIONER ASSY, CAM CHAIN Price: $14.99 |
| 27 |
4DH-E2213-01-00 |
GASKET, TENSIONER CASE Price: $1.15 |
| 28 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 29 |
1DK-E2492-00-00 |
CLAMP 2 Price: $1.30 |
