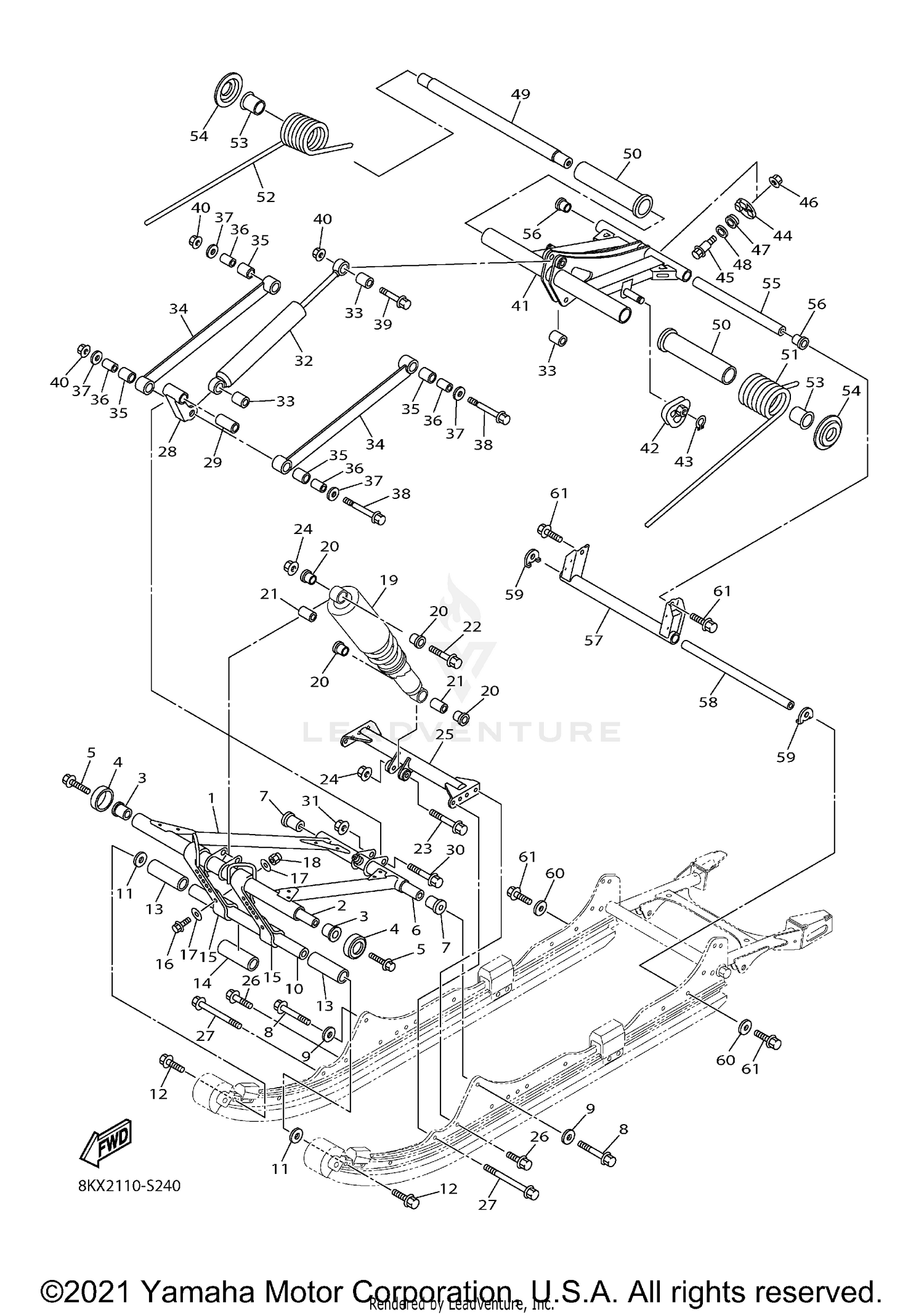

| Ref | Part Number | Description |
|---|
| 1 |
8KA-47331-00-00 |
ARM, PIVOT 1 Price: $432.99 |
| 2 |
8KA-47465-00-00 |
SHAFT 1 Price: $93.99 |
| 3 |
90383-22001-00 |
BUSH, FORMED Price: $6.49 |
| 4 |
8KA-47341-00-00 |
SPACER Price: $5.49 |
| 5 |
90109-10032-00 |
BOLT This part replaces 90109-10030-00. Price: $9.49 |
| 6 |
8JD-47486-00-00 |
SHAFT 4 Price: $47.99 |
| 7 |
90387-10022-00 |
COLLAR Price: $20.99 |
| 8 |
90105-10209-00 |
BOLT, FLANGE This part replaces 90105-10329-00. Price: $9.49 |
| 9 |
90201-10072-00 |
WASHER, PLATE Price: $4.20 |
| 10 |
83R-47485-02-00 |
SHAFT 3 Price: $83.99 |
| 11 |
90201-102G9-00 |
WASHER, PLATE This part replaces 90201-10126-00. Price: $10.49 |
| 12 |
95817-10030-00 |
BOLT, FLANGE This part replaces 90105-10237-00. Price: $9.49 |
| 13 |
90387-19002-00 |
COLLAR Price: $8.49 |
| 14 |
90387-19007-00 |
COLLAR Price: $9.49 |
| 15 |
8HR-47495-00-00 |
STOPPER 1 Price: $73.99 |
| 16 |
97017-06025-00 |
BOLT This part replaces 97002-06025-00. Price: $4.55 |
| 17 |
90201-06081-00 |
WASHER, PLATE Price: $9.49 |
| 18 |
95707-06300-00 |
NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 19 |
8KE-47481-00-00 |
SHOCK ABSORBER 2 Price: $406.99 |
| 20 |
90381-14101-00 |
BUSH, SOLID Price: $9.49 |
| 21 |
90387-105G5-00 |
COLLAR Price: $11.49 |
| 22 |
95812-10045-00 |
BOLT, FLANGE Price: $5.49 |
| 23 |
95817-10070-00 |
BOLT, FLANGE This part replaces 95812-10070-00. Price: $6.49 |
| 24 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 25 |
8KA-47349-10-00 |
BRACKET, ARM PIVOT Price: $108.99 |
| 26 |
95817-10020-00 |
BOLT, FLANGE This part replaces 95812-10020-00. Price: $9.49 |
| 27 |
95812-10080-00 |
BOLT, FLANGE Price: $10.49 |
| 28 |
8KA-47416-10-00 |
BRACKET 2 Price: $32.99 |
| 29 |
90387-10054-00 |
COLLAR Price: $9.49 |
| 30 |
90105-10390-00 |
BOLT, FLANGE Price: $8.49 |
| 31 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 32 |
8KA-47480-00-00 |
SHOCK ABSORBER Price: $323.99 |
| 33 |
90387-10023-00 |
COLLAR Price: $21.99 |
| 34 |
8KA-47494-00-00 |
ROD, RELAY Price: $47.99 |
| 35 |
90386-16001-00 |
BUSH Price: $13.49 |
| 36 |
90387-101A1-00 |
COLLAR Price: $4.85 |
| 37 |
90201-10043-00 |
WASHER, PLATE Price: $2.65 |
| 38 |
90105-10288-00 |
BOLT, FLANGE Price: $9.49 |
| 39 |
90105-10390-00 |
BOLT, FLANGE Price: $8.49 |
| 40 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 41 |
8KA-47332-10-00 |
ARM, PIVOT 2 Price: $329.99 |
| 42 |
8ES-47447-00-00 |
HOOK 2 Price: $21.99 |
| 43 |
99009-14400-00 |
CIRCLIP Price: $3.59 |
| 44 |
8KA-47448-00-00 |
HOOK 3 Price: $10.99 |
| 45 |
90109-08186-00 |
BOLT Price: $5.49 |
| 46 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 47 |
90480-16501-00 |
GROMMET Price: $6.49 |
| 48 |
90201-12047-00 |
WASHER, PLATE Price: $9.49 |
| 49 |
8KA-47475-00-00 |
SHAFT 2 Price: $110.99 |
| 50 |
8GL-47445-01-00 |
PROTECTOR Price: $13.49 |
| 51 |
8KA-47473-00-00 |
SPRING, REAR 1 (K=2800NMM/DEG) Price: $374.99 |
| 52 |
8KA-47474-00-00 |
SPRING, REAR 1 (K=2800NMM/DEG) Price: $374.99 |
| 53 |
90381-28108-00 |
BUSH, SOLID Price: $17.49 |
| 54 |
8ES-47467-00-00 |
PLATE, GUIDE Price: $19.99 |
| 55 |
8JD-47488-00-00 |
SHAFT 6 Price: $64.99 |
| 56 |
90381-19111-00 |
BUSH, SOLID Price: $17.49 |
| 57 |
8JD-47417-01-00 |
BRACKET 3 Price: $97.99 |
| 58 |
83R-47485-02-00 |
SHAFT 3 Price: $83.99 |
| 59 |
90214-10007-00 |
WASHER, CLAW Price: $4.60 |
| 60 |
90201-10052-00 |
WASHER, PLATE Price: $9.49 |
