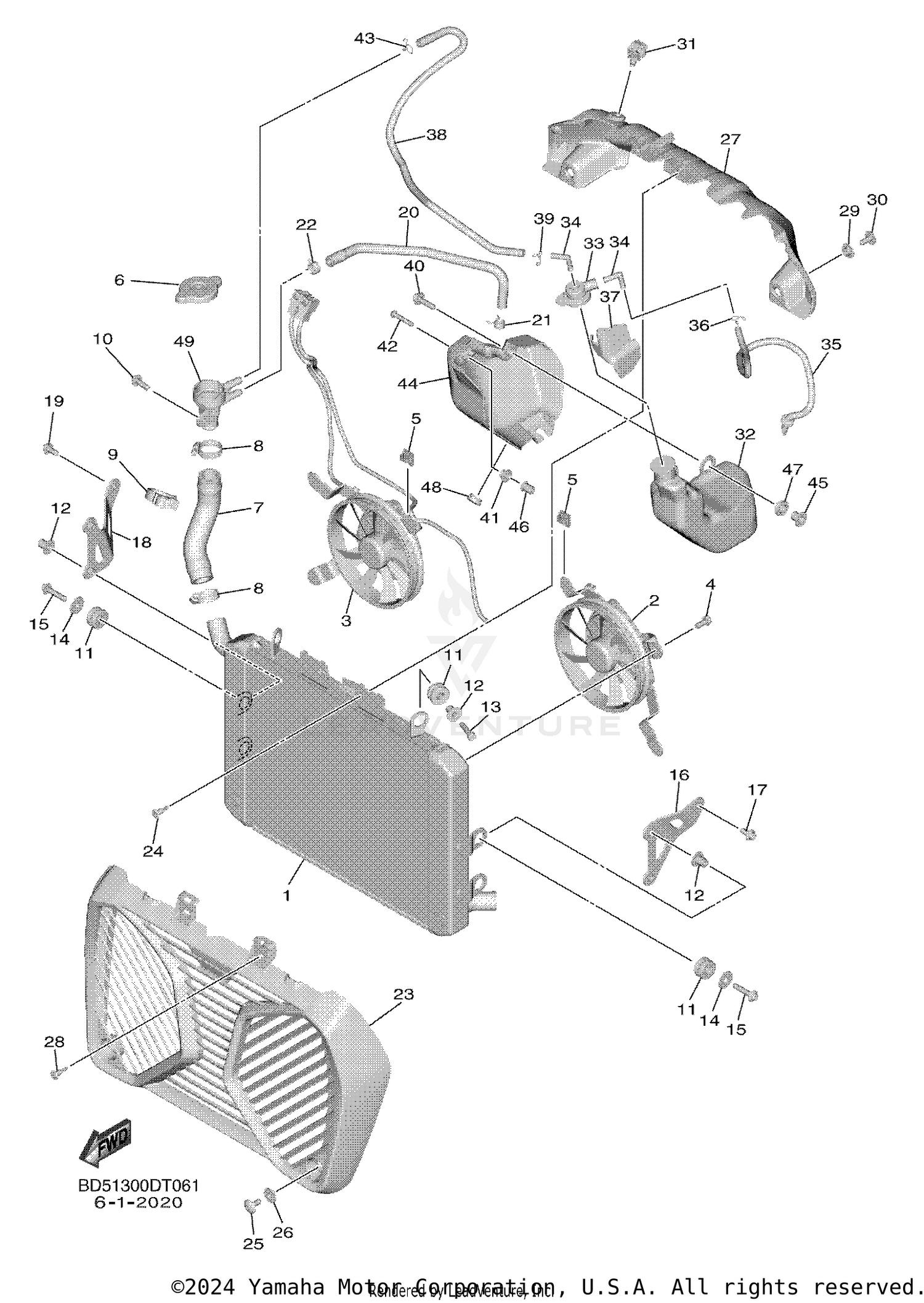

| Ref | Part Number | Description |
|---|
| 1 |
BD5-12461-00-00 |
RADIATOR COMP Price: $322.99 |
| 2 |
BD5-12405-00-00 |
BLOWER ASSY Price: $273.99 |
| 3 |
BD5-12405-10-00 |
BLOWER ASSY Price: $273.99 |
| 4 |
3D8-12675-00-00 |
BOLT, BLOWER HOLDING Price: $8.49 |
| 5 |
1AA-12535-00-00 |
PLATE Price: $15.49 |
| 6 |
4FL-12462-00-00 |
CAP, RADIATOR This part replaces 22W-12462-00-00. Price: $68.99 |
| 7 |
BD5-12589-00-00 |
HOSE 6 Price: $10.99 |
| 8 |
90450-32003-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 9 |
90464-23004-00 |
CLAMP Price: $2.90 |
| 10 |
90110-06048-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 11 |
90480-15363-00 |
GROMMET Price: $9.49 |
| 12 |
90387-06158-00 |
COLLAR Price: $9.49 |
| 13 |
91317-06025-00 |
BOLT This part replaces 90110-06178-00. Price: $2.65 |
| 14 |
90201-063J2-00 |
WASHER, PLATE This part replaces 90201-06071-00. Price: $6.49 |
| 15 |
90110-06415-00 |
BOLT, HEXAGON SOCKET HEAD Price: $0.95 |
| 16 |
BD5-2142K-00-00 |
BRACKET, RADIATOR Price: $30.99 |
| 17 |
90110-06428-00 |
BOLT, HEXAGON SOCKET Price: $2.55 |
| 18 |
BD5-2142L-00-00 |
BRACKET, RADIATOR 2 Price: $25.99 |
| 19 |
90110-06428-00 |
BOLT, HEXAGON SOCKET Price: $2.55 |
| 20 |
BD5-12576-00-00 |
HOSE 1 Price: $17.49 |
| 21 |
90467-10039-00 |
CLIP Price: $10.49 |
| 22 |
90467-13133-00 |
CLIP This part replaces 90467-13083-00. Price: $9.49 |
| 23 |
BD5-2837N-00-00 |
GRILL, AIR INTAKE 1 Price: $80.99 |
| 24 |
90269-06001-00 |
RIVET Price: $6.49 |
| 25 |
90111-06151-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06161-00. Price: $3.45 |
| 26 |
90387-06066-00 |
COLLAR Price: $9.49 |
| 27 |
BD5-12467-00-00 |
COVER, RADIATOR Price: $24.99 |
| 28 |
90269-06001-00 |
RIVET Price: $6.49 |
| 29 |
90387-06066-00 |
COLLAR Price: $9.49 |
| 30 |
90111-06151-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.45 |
| 31 |
90464-12018-00 |
CLAMP Price: $2.65 |
| 32 |
1RC-21871-00-00 |
TANK, RECOVERY Price: $39.99 |
| 33 |
1RC-21875-01-00 |
CAP This part replaces 1RC-21875-00-00. Price: $21.99 |
| 34 |
1RC-21828-00-00 |
ELBOW Price: $4.75 |
| 35 |
1RC-21826-00-00 |
PIPE, BREATHER Price: $39.99 |
| 36 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 37 |
1RC-22825-00-00 |
PROTECTOR 1 Price: $5.49 |
| 38 |
BD5-21816-00-00 |
PIPE 1 Price: $11.49 |
| 39 |
90467-08017-00 |
CLIP Price: $11.49 |
| 40 |
90110-06233-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 41 |
1RC-21748-00-00 |
COLLAR Price: $5.99 |
| 42 |
92012-05030-00 |
BOLT, BUTTON HEAD Price: $8.49 |
| 43 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 44 |
1RC-2172W-00-00 |
COVER Price: $18.99 |
| 45 |
90387-06285-00 |
COLLAR Price: $4.82 |
| 46 |
90179-05523-00 |
NUT Price: $7.49 |
| 47 |
1RC-21749-00-00 |
COLLAR Price: $4.40 |
| 48 |
90480-14153-00 |
GROMMET This part replaces 90480-13203-00. Price: $10.49 |
