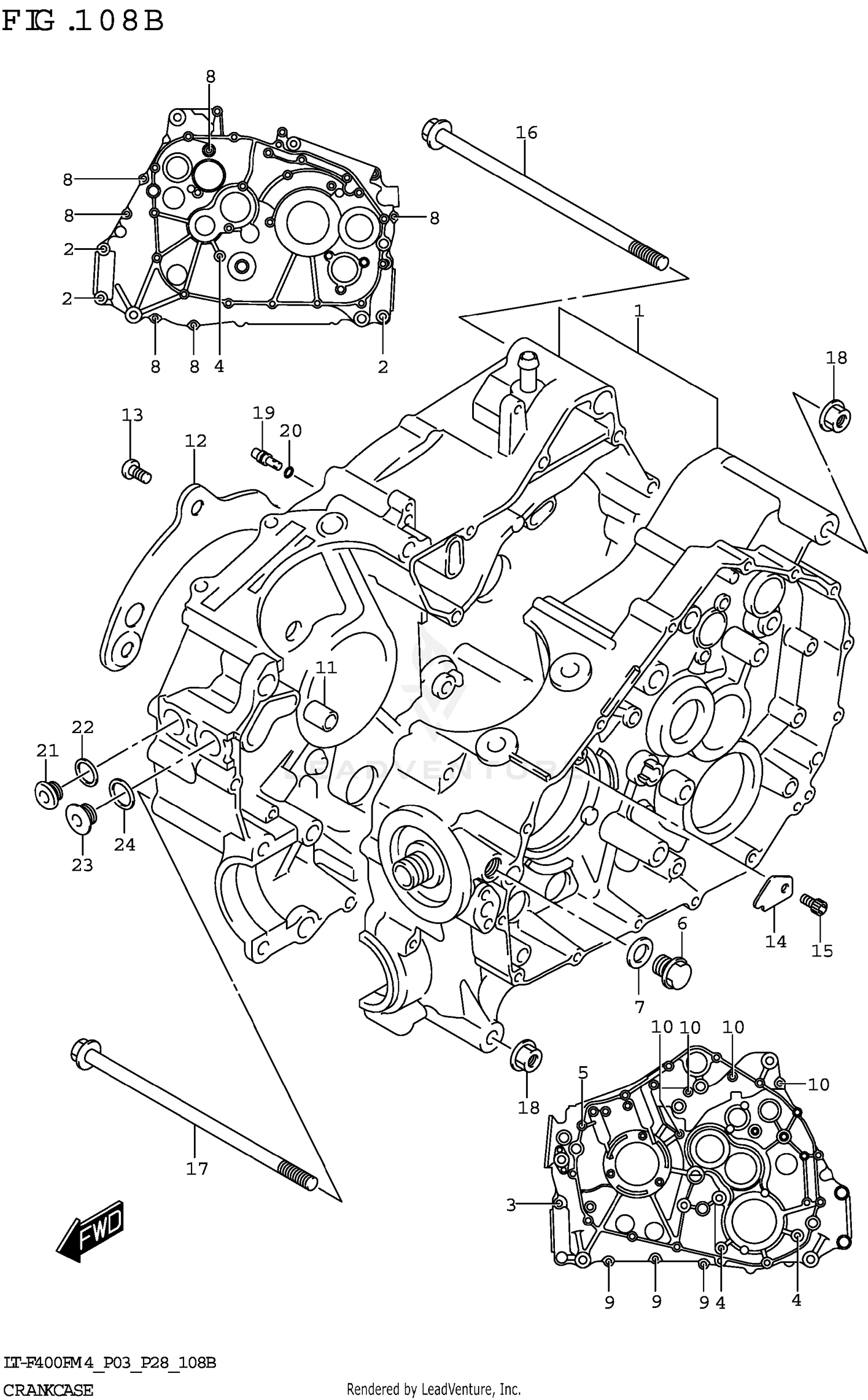

CRANKCASE
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11302-38852 | CRANKCASE SET Price: $1,984.47 |
| 2 | 09103-08081 | BOLT (8X50) Price: $3.91 |
| 3 | 09103-08081 | BOLT (8X50) Price: $3.91 |
| 7 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 11 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 12 | 11317-38F10 | PLATE,OIL GUIDE Price: $3.94 |
| 13 | 02112-0612A | SCREW Price: $1.73 |
| 14 | 11323-38F00 | PLATE,OIL GUIDE,L Price: $2.48 |
| 15 | 02112-0612A | SCREW Price: $1.73 |
| 16 | 09103-10118 | BOLT (L:195) Price: $13.46 |
| 17 | 11611-03G00 | BOLT,ENG MTG (10X180) Price: $23.76 |
| 18 | 09159-10115 | NUT (M10) Price: $4.33 |
| 19 | 09493-32006 | JET,OIL GALLERY (16) Price: $17.72 |
| 20 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 21 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 22 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 23 | 09248-18011 | PLUG (18X8) Price: $7.72 |
