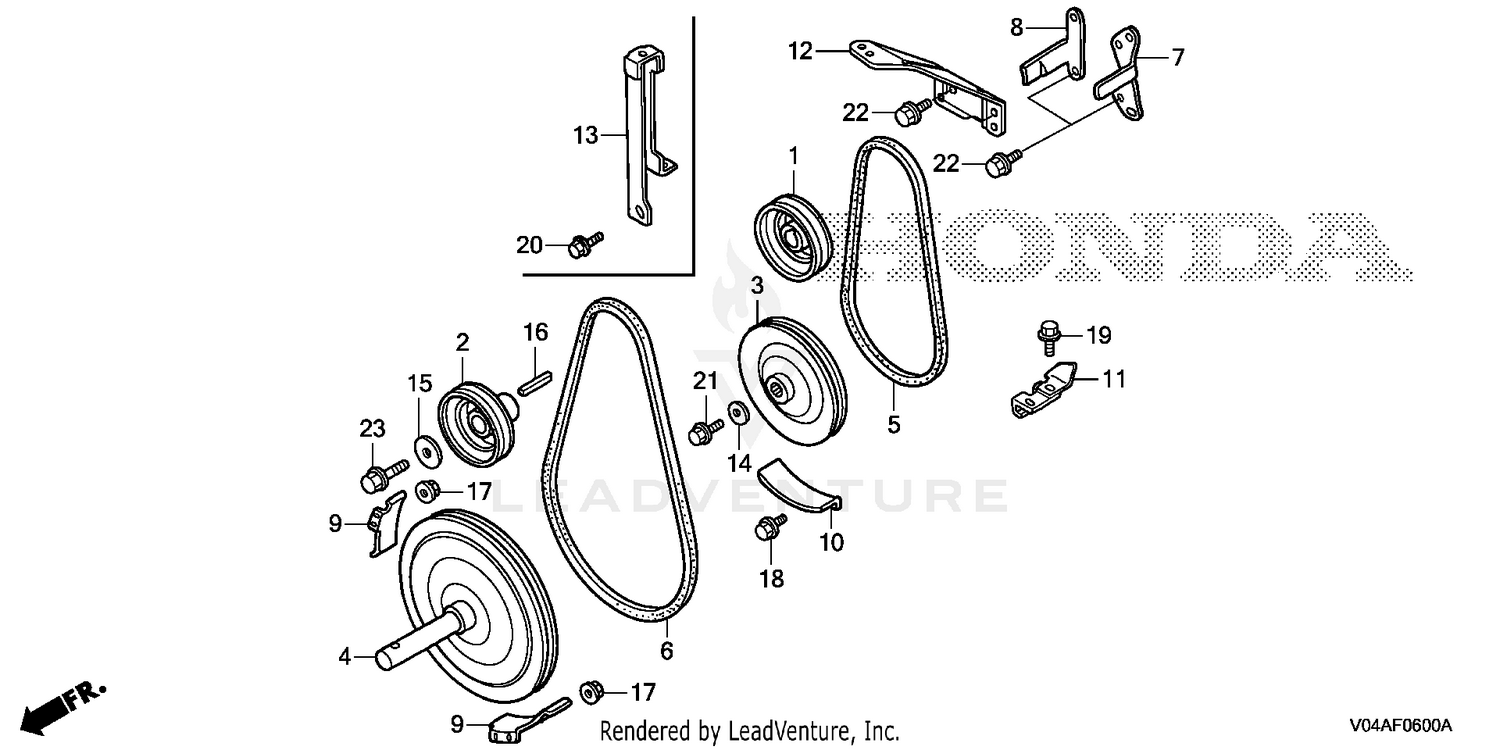

| Ref | Part Number | Description |
|---|
| 1 |
22411-736-000 |
PULLEY, WHEEL DRIVEN Price: $50.02 |
| 2 |
22412-736-000 |
PULLEY, AUGER DRIVE Price: $50.02 |
| 3 |
22423-767-000 |
PULLEY, WHEEL DRIVEN (133MM) Price: $72.48 |
| 4 |
22424-767-010 |
PULLEY, AUGER DRIVEN (198MM) Price: $90.80 |
| 5 |
22431-767-003 |
V-BELT (SA-27) Price: $19.58 |
| 6 |
22432-V03-000 |
SEE PART DETAILS - PRI; V-BELT (SB-35) Price: $39.42 |
| 7 |
22441-767-000 |
STOPPER, R. BELT (L. SIDE) Price: $17.88 |
| 8 |
22442-736-A00 |
STOPPER, L. BELT (R. SIDE) Price: $13.72 |
| 9 |
22444-767-000 |
STOPPER, AUGER BELT Price: $14.84 |
| 10 |
22451-767-000 |
PROTECTOR, BELT (WHEEL) Price: $7.32 |
| 11 |
22453-767-000 |
GUIDE, BELT Price: $11.96 |
| 14 |
90417-115-000 |
WASHER, CAMSHAFT SIDE Price: $3.74 |
| 15 |
90534-706-010 |
SEE PART DETAILS - PRI; WASHER, LOCK (8MM) (Honda Code 0177998). Price: $6.70 |
| 16 |
90741-883-621 |
KEY (5MM) (Honda Code 0636092). Price: $7.14 |
| 17 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 18 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 19 |
95701-06014-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884). Price: $1.26 |
| 21 |
95701-06016-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807). Price: $1.82 |
| 22 |
95701-08016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016. Price: $2.26 |
