Parts Catalog

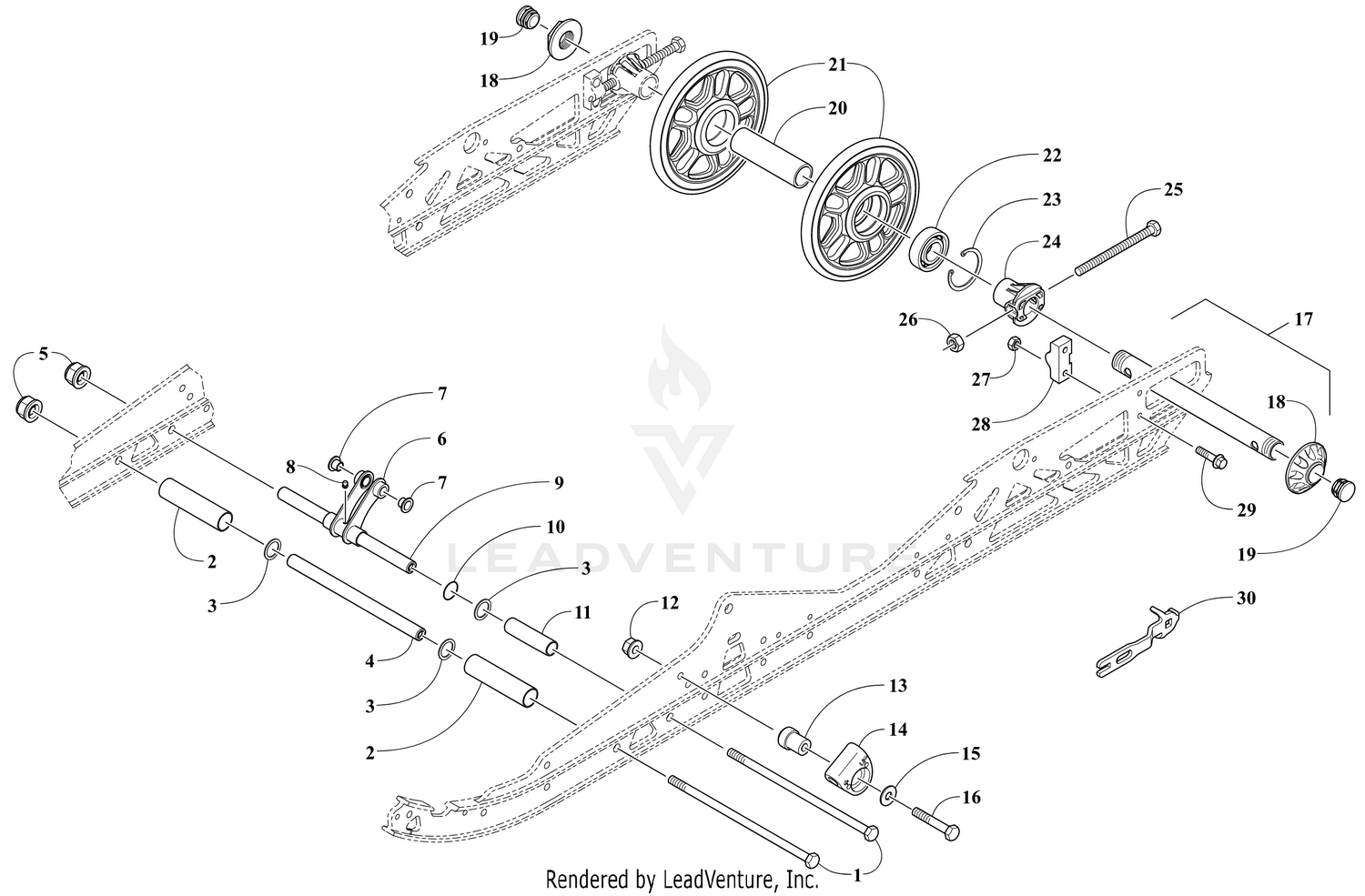

IDLER WHEEL ASSEMBLY [106235]

Parts (26)

Ref	Part Number	Description
1	1423-431	Screw, Cap Price: $7.23
2	3604-083	Spacer Price: $13.28
3	0623-912	Washer Price: $1.07
4	3604-798	Axle Price: $64.95
5	2623-202	Nut, Lock w/Washer Price: $1.32
7	0104-386	Bushing Price: $4.48
8	9916-963	Fitting, Grease Price: $4.35
9	3604-269	Axle Price: $64.95
10	2604-698	O-Ring Price: $0.48
11	3604-581	Spacer Price: $18.95
12	8427-802	Nut, Lock Price: $0.58
13	3604-204	Block, Slide Price: $15.71
14	2604-515	Slide, Spring Price: $7.23
15	8450-133	Washer Price: $0.35
16	8408-850	Screw, Cap Price: $1.20
18	2604-914	Nut, Axle Price: $24.20
19	3606-799	Cap Price: $1.78
20	2604-115	Spacer Price: $26.95
22	0107-598	Bearing Price: $13.28
23	1623-622	Ring, Retaining Price: $7.23
24	4604-087	Bushing, Adjuster Price: $19.35
25	0124-310	Screw, Cap Price: $2.61
26	8041-486	Nut, Hex - Thin Lock Price: $0.46
27	8040-366	Nut, Lock Price: $0.35
28	1704-379	Adjuster, Track Price: $27.95
29	1623-539	Screw, Cap Price: $8.95
