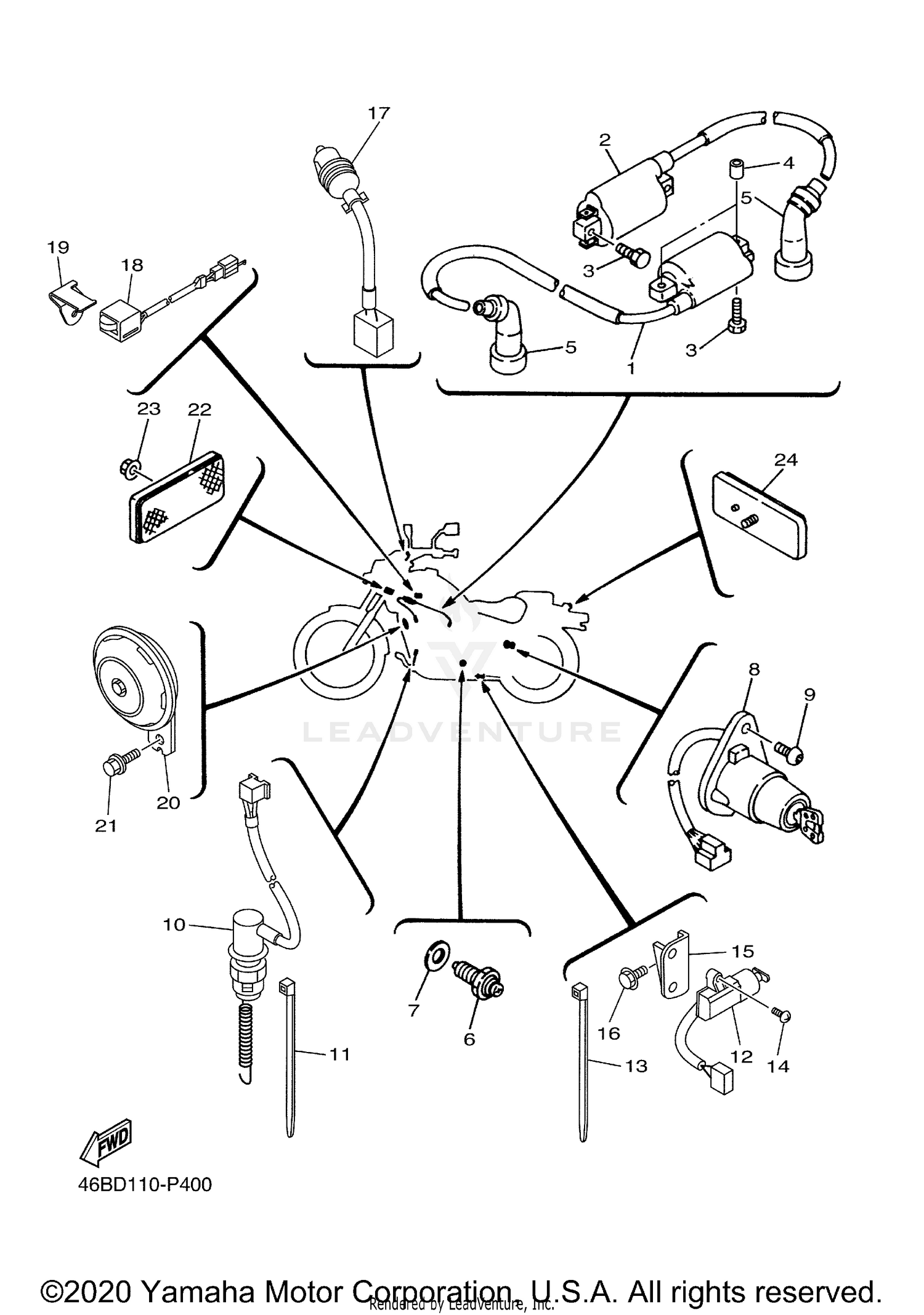

ELECTRICAL 2
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2UJ-82310-02-00 | IGNITION COIL ASSY Price: $42.99 |
| 2 | 2UJ-82320-01-00 | IGNITION COIL ASSY Price: $42.99 |
| 3 | 97027-05020-00 | BOLT This part replaces 97007-05020-00. Price: $3.55 |
| 4 | 90445-07176-00 | HOSE (L200) This part replaces 90445-070K7-00. Price: $7.70 |
| 5 | 3NS-82370-00-00 | PLUG CAP ASSY This part replaces 1UY-82370-20-00. Price: $41.99 |
| 6 | 4GY-82540-10-00 | NEUTRAL SWITCH ASSY This part replaces 4KM-82540-00-00. Price: $41.99 |
| 7 | 90430-10148-00 | GASKET Price: $5.99 |
| 8 | 46B-82510-00-00 | MAIN SWITCH ASSY Price: $237.99 |
| 9 | 90149-06228-00 | SCREW Price: $10.49 |
| 10 | 5PW-82530-01-00 | STOP SWITCH ASSY This part replaces 5PW-82530-00-00. Price: $33.99 |
| 11 | 90464-16061-00 | CLAMP Price: $9.49 |
| 12 | 3LD-82566-61-00 | SWITCH, SIDE STAND This part replaces 3LD-82566-60-00. Price: $56.99 |
| 13 | 90464-16061-00 | CLAMP Price: $9.49 |
| 14 | 98507-05014-00 | SCREW, PAN HEAD This part replaces 90157-05079-00. Price: $9.49 |
| 15 | 2UJ-82565-00-00 | PANEL, SWITCH Price: $17.99 |
| 16 | 95817-06010-00 | BOLT,FLANGE This part replaces 95827-06010-00. Price: $5.49 |
| 17 | 19D-83980-10-00 | FRONT STOP SWITCH ASSY Price: $44.99 |
| 18 | 5FU-82560-40-00 | THERMO SWITCH ASSY Price: $23.99 |
| 19 | 3BG-82571-00-00 | PANEL, SWITCH Price: $5.49 |
| 20 | 1HX-83371-11-00 | HORN Price: $44.99 |
| 21 | 95817-06010-00 | BOLT,FLANGE This part replaces 95807-06010-00. Price: $5.49 |
| 22 | 11H-85110-01-00 | REFLECTOR ASSY Price: $30.99 |
| 23 | 95707-05500-00 | NUT, FLANGE Price: $9.49 |
