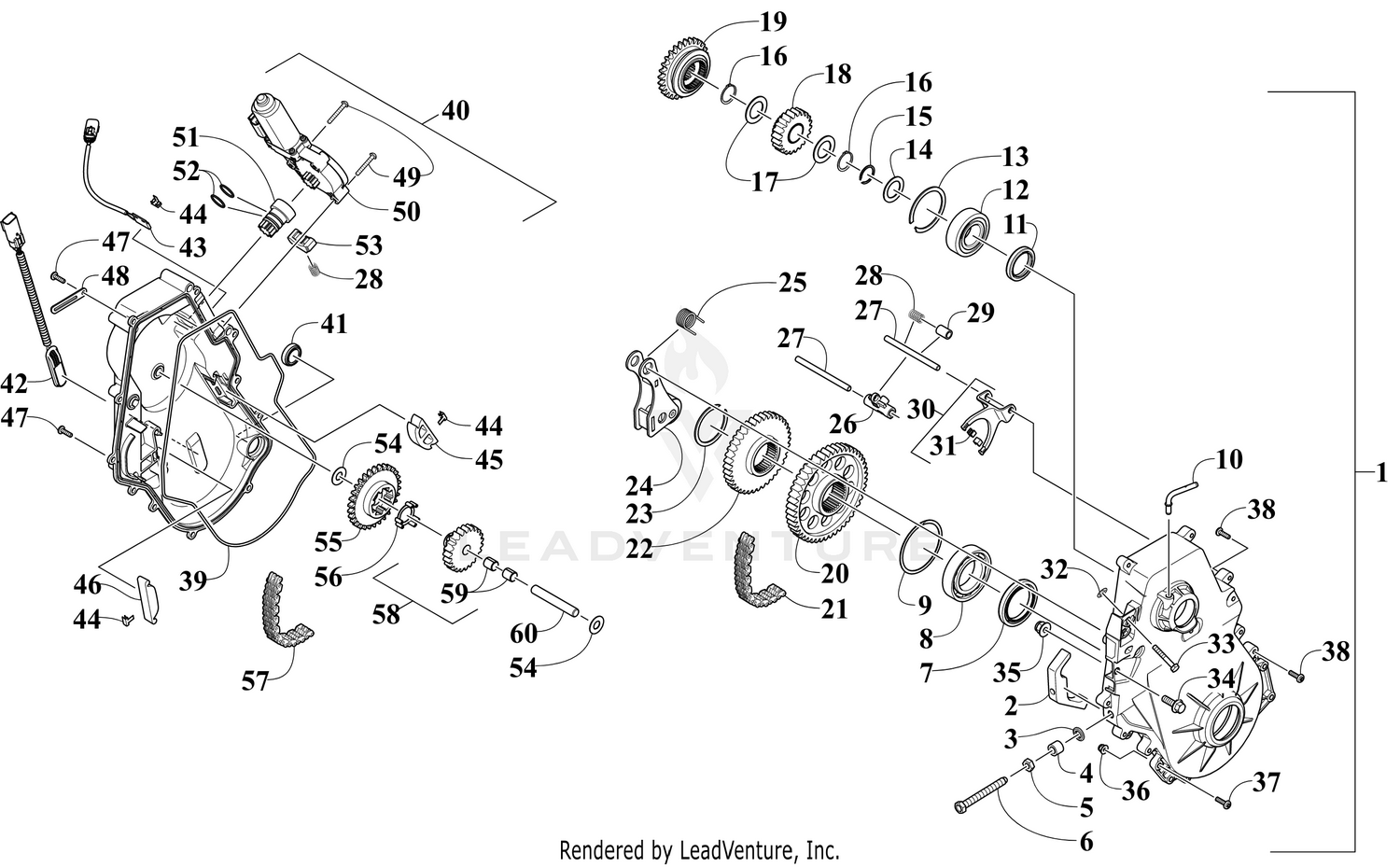

CHAIN CASE ASSEMBLY [102949]

Parts (55)

Ref	Part Number	Description
2	2602-465	Plate, Ratchet Price: $82.95
3	2623-057	Seal Price: $2.05
4	2602-707	Spacer Price: $10.85
5	0123-150	Nut Price: $0.48
6	2602-735	Screw, Adjuster Price: $25.95
7	2602-172	Seal Price: $30.95
8	2602-281	Bearing Price: $14.49
9	2602-280	Ring, Retaining Price: $3.88
10	2602-641	Fitting, Elbow Price: $9.64
11	2602-204	Seal Price: $18.13
12	2602-734	Bearing Price: $21.77
13	2602-729	Ring, Retaining Price: $3.88
14	0648-443	Washer, Shim (.060 in.) Price: $1.45
15	1423-175	Ring, Retaining Price: $2.17
16	1623-690	Ring, Retaining Price: $1.20
17	2602-339	Washer, Thrust Price: $9.29
18	1702-410	Sprocket - 21T (13 Wide) Price: $55.95
19	2602-270	Gear, Shift - Reverse Price: $96.95
20	2602-758	Sprocket - 49T (13 Wide) Price: $151.95
21	2602-760	Chain - 90P (13 Wide) Price: $207.95
22	2602-276	Sprocket - 40T (11 Wide) Price: $46.95
23	2602-629	Ring, Retaining Price: $2.91
24	1702-400	Arm, Tensioner - Assembly Price: $62.95
25	2602-336	Spring Price: $1.45
26	1702-265	Arm, Shift Fork Price: $36.95
27	2602-418	Shaft, Reverse Price: $19.35
28	2602-417	Spring Price: $3.75
29	2602-579	Bushing Price: $3.88
31	2602-341	Pad, Wear - Shift Fork Price: $11.49
32	1623-409	Retainer, Pushnut Price: $0.19
33	8402-640	Screw, Cap Price: $0.84
34	8408-820	Screw, Cap Price: $0.71
35	8427-802	Nut, Lock Price: $0.58
36	8427-602	Nut, Hex Price: $0.23
37	8476-630	Screw, Machine Price: $1.18
38	8468-622	Screw, Machine Price: $1.20
39	2602-817	Seal, Chain Case Price: $9.95
41	2602-232	Glass, Sight Price: $15.71
42	0730-172	Kit, Speedometer Sensor Price: $85.95
43	0730-197	Kit, Gear Position Sensor Price: $91.95
44	1623-703	Clip Price: $2.66
45	2602-749	Snubber, Chain Price: $50.95
46	2602-387	Snubber, Chain Price: $3.26
47	8468-626	Screw, Machine Price: $1.20
48	1623-984	Clamp, Routing Price: $7.08
49	8468-535	Screw, Machine Price: $1.07
50	0630-285	Actuator, Reverse Price: $170.95
51	0630-331	Extension, Actuator Price: $34.95
52	0830-185	O-Ring Price: $0.71
53	0630-332	Block, Detent Price: $4.72
54	2602-338	Washer, Thrust Price: $3.02
55	2602-751	Gear, Reverse Idler - 30T (11 Wide) Price: $102.95
56	2602-415	Insert, Idler Price: $1.92
57	2602-342	Chain - 68P (11 Wide) Price: $131.95
59	2602-337	Bearing Price: $1.80
