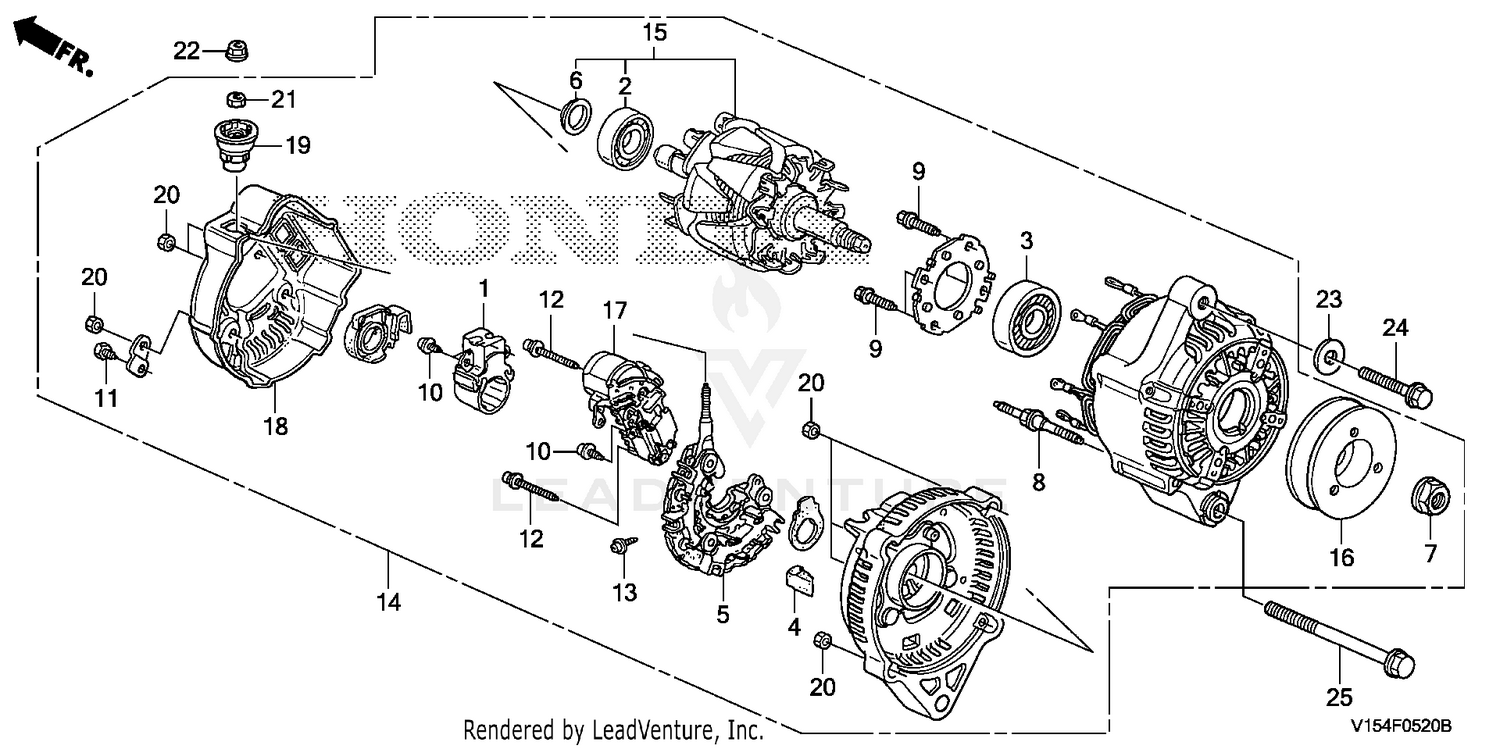

| Ref | Part Number | Description |
|---|
| 1 |
31105-PR7-A01 |
HOLDER ASSY., BRUSH Price: $67.22 |
| 2 |
31111-PT0-003 |
BEARING, RR. GENERATOR Price: $54.96 |
| 3 |
31114-PT0-013 |
BEARING, FR. GENERATOR Price: $54.96 |
| 4 |
31118-PT0-003 |
BUSH, INSULATION Price: $10.48 |
| 5 |
31127-PT2-013 |
RECTIFIER ASSY. Price: $523.64 |
| 6 |
31138-PD1-004 |
COVER, BEARING Price: $13.16 |
| 7 |
31142-PD1-004 |
NUT, PULLEY LOCK Price: $10.50 |
| 8 |
31145-PD1-004 |
BOLT, STUD (6X68) Price: $11.14 |
| 9 |
31146-PT0-003 |
SCREW Price: $5.24 |
| 10 |
31147-PT0-003 |
SCREW-WASHER Price: $4.04 |
| 11 |
31147-P13-003 |
SCREW Price: $3.06 |
| 12 |
31148-PT0-003 |
SCREW, WAVE WASHER Price: $4.04 |
| 13 |
31148-P13-003 |
SCREW, WAVE WASHER Price: $3.22 |
| 14 |
31630-V15-013 |
ALTERNATOR ASSY. (DENSO) Price: $633.10 |
| 15 |
31631-V15-003 |
ROTOR ASSY. Price: $166.24 |
| 16 |
31633-V15-003 |
PULLEY Price: $618.32 |
| 17 |
31634-V15-003 |
REGULATOR ASSY. Price: $267.54 |
| 18 |
31639-V15-003 |
END COVER, RR. Price: $16.04 |
| 19 |
31644-V15-003 |
BUSH, INSULATION Price: $5.30 |
| 20 |
90231-PD1-014 |
NUT-WASHER (5MM) Price: $5.58 |
| 21 |
90232-V15-003 |
NUT, HEX. (6MM) Price: $5.30 |
| 22 |
94070-06080 |
SEE PART DETAILS - PRI; NUT-WASHER (6MM) Price: $1.84 |
| 23 |
94103-08800 |
WASHER, PLAIN (8MM) Price: $1.18 |
| 24 |
95701-08028-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387). Price: $1.74 |
