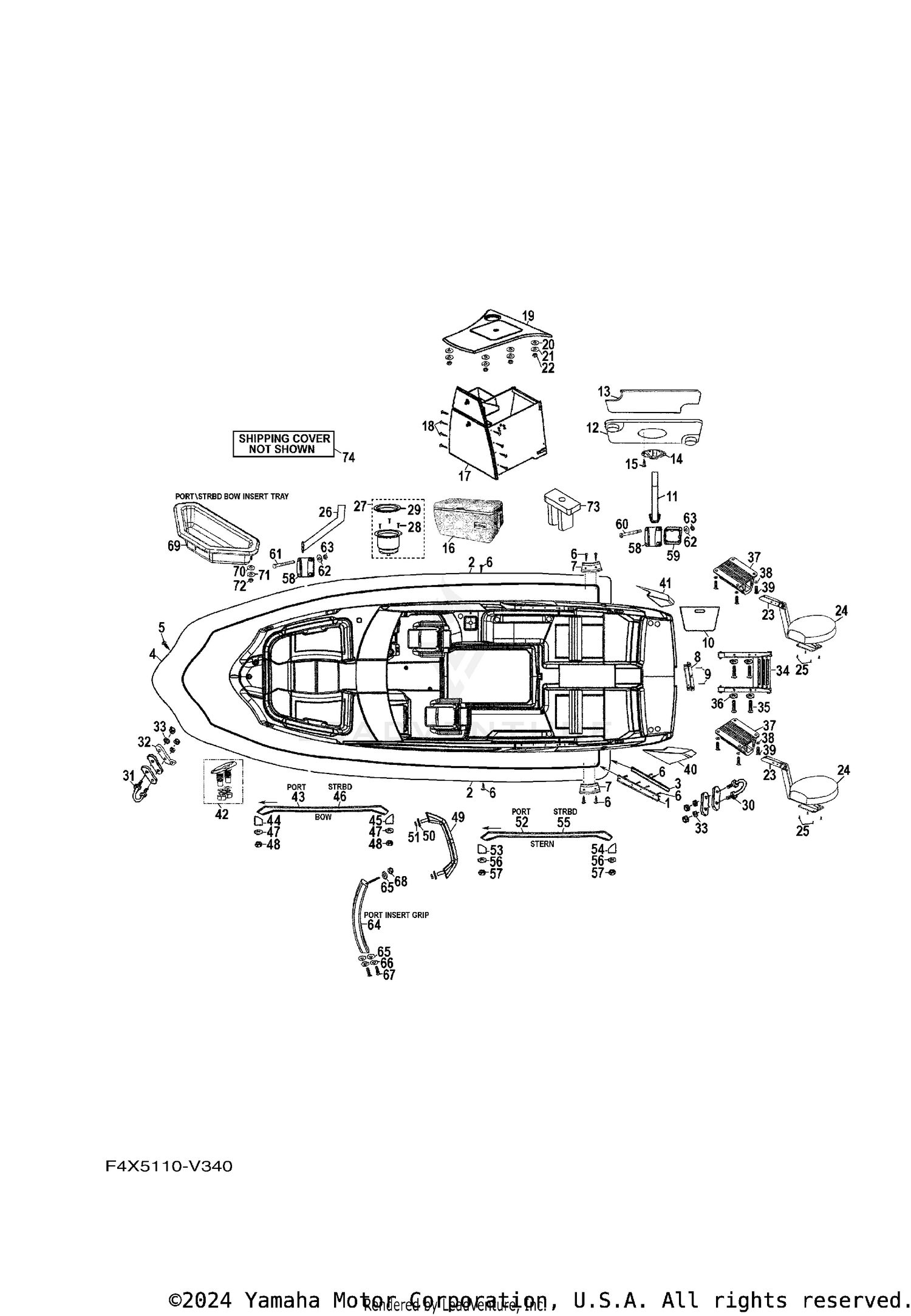

| Ref | Part Number | Description |
|---|
| 1 |
F3E-U2557-00-00 |
GUNWALE Price: $50.99 |
| 2 |
F2D-U2519-00-00 |
INNER,GUNWALE Price: $401.99 |
| 3 |
F4X-U2519-00-00 |
INNER,GUNWALE Price: $338.99 |
| 4 |
F2A-U2519-10-00 |
INNER,GUNWALE This part replaces F2A-U2519-00-00. Price: $370.99 |
| 5 |
90161-10S20-00 |
SCREW, #10 X 1-1/4 Price: $5.99 |
| 7 |
F4X-U2518-00-00 |
COVER,GUNWALE Price: $56.99 |
| 8 |
F4X-U270B-10-00 |
GRIP ASSY Price: $444.99 |
| 9 |
90149-16S64-00 |
SCREW Price: $17.99 |
| 10 |
F4X-U5708-20-00 |
DOOR COMP. Price: $371.99 |
| 11 |
F3H-U4814-01-00 |
STANCHION,TABLE 1 Price: $335.99 |
| 12 |
F3F-U4811-00-00 |
TABLE Price: $263.99 |
| 13 |
F5V-U351U-10-00 |
MAT STEP 10 Price: $114.99 |
| 14 |
F3H-U4826-00-00 |
BRKT., TABLE 2 Price: $39.99 |
| 15 |
90169-10SA1-00 |
TAPPING SCREW Price: $5.99 |
| 16 |
F4X-U4360-00-00 |
ICE BOX COMP. Price: $279.99 |
| 17 |
F4X-U4301-10-00 |
GALLEY ASSY Price: $4,301.99 |
| 18 |
90161-10S16-00 |
SCREW, TAPPING Price: $0.15 |
| 19 |
F4X-U435B-10-00 |
GALLEY TOP Price: $1,168.99 |
| 20 |
90209-10SA1-00 |
WASHER Price: $5.99 |
| 21 |
90204-08S00-00 |
WASHER, #8 LOCK Price: $5.99 |
| 22 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 23 |
F4X-U3765-01-00 |
SEAT, LEG This part replaces F4X-U3765-00-00. Price: $511.99 |
| 24 |
F4X-U381A-01-00 |
SEAT, POOL This part replaces F4X-U381A-00-00. Price: $211.99 |
| 25 |
90151-14S12-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 26 |
F4X-U4814-00-00 |
STANCHION,TABLE 1 Price: $359.99 |
| 27 |
F2J-U5633-00-00 |
HOLDER, DRINK Price: $19.99 |
| 28 |
90161-06S12-00 |
SCREW, COUTERSUNK Price: $5.99 |
| 29 |
F2J-U7845-00-00 |
RING, TRIM Price: $6.99 |
| 30 |
F3A-U1624-00-00 |
BOW EYE 1 Price: $40.99 |
| 31 |
F3F-U1624-00-00 |
BOW EYE 1 Price: $35.99 |
| 32 |
F1C-U1794-00-00 |
BRACKET Price: $15.49 |
| 33 |
90204-18S00-00 |
WASHER, SPRING Price: $4.99 |
| 34 |
F6B-U2425-01-00 |
LADDER, TRANSOM This part replaces F6B-U2425-00-00. Price: $338.99 |
| 35 |
90101-08802-00 |
BOLT Price: $1.15 |
| 36 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 37 |
F4X-U371F-00-00 |
BRKT., SEAT Price: $185.99 |
| 38 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 39 |
90101-08802-00 |
BOLT Price: $1.15 |
| 42 |
F1C-U1616-10-00 |
CLEAT Price: $109.99 |
| 43 |
F4X-U2767-00-00 |
HAND RAIL Price: $395.99 |
| 44 |
F4X-U8367-00-00 |
SPACER Price: $23.99 |
| 45 |
F4X-U8367-10-00 |
SPACER Price: $19.99 |
| 46 |
F4X-U2767-10-00 |
HAND RAIL Price: $416.99 |
| 47 |
90209-15SA3-00 |
WASHER Price: $4.10 |
| 48 |
90185-15S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 49 |
F4B-U270B-01-00 |
GRIP ASSY This part replaces F4B-U270B-00-00. Price: $70.99 |
| 50 |
90201-099U1-00 |
WASHER, PLATE Price: $6.99 |
| 51 |
90185-15S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 52 |
F4X-U2767-20-00 |
HAND RAIL Price: $332.99 |
| 53 |
F4X-U8367-20-00 |
SPACER Price: $23.99 |
| 54 |
F4X-U8367-30-00 |
SPACER Price: $23.99 |
| 55 |
F4X-U2767-30-00 |
HAND RAIL Price: $315.99 |
| 56 |
90209-15SA3-00 |
WASHER Price: $4.10 |
| 57 |
90185-15S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 58 |
F3H-U4825-10-00 |
BRACKET, TABLE Price: $109.99 |
| 59 |
F4X-U471E-00-00 |
SPACER 1 Price: $75.99 |
| 60 |
90151-14S36-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 61 |
90151-14S40-00 |
SCREW, COUNTERSUNK Price: $0.70 |
| 62 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 63 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 64 |
F4X-U270B-00-00 |
GRIP ASSY Price: $361.99 |
| 65 |
90201-15SA1-00 |
WASHER, PLATE Price: $6.99 |
| 66 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 67 |
90149-14SD2-00 |
SCREW Price: $5.99 |
| 68 |
90185-15S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 69 |
F4X-U4279-00-00 |
TRAY Price: $280.99 |
| 70 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 71 |
90204-08S00-00 |
WASHER, #8 LOCK Price: $5.99 |
| 72 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 73 |
F4X-U7791-00-00 |
BRACKET, FILLER Price: $82.99 |
