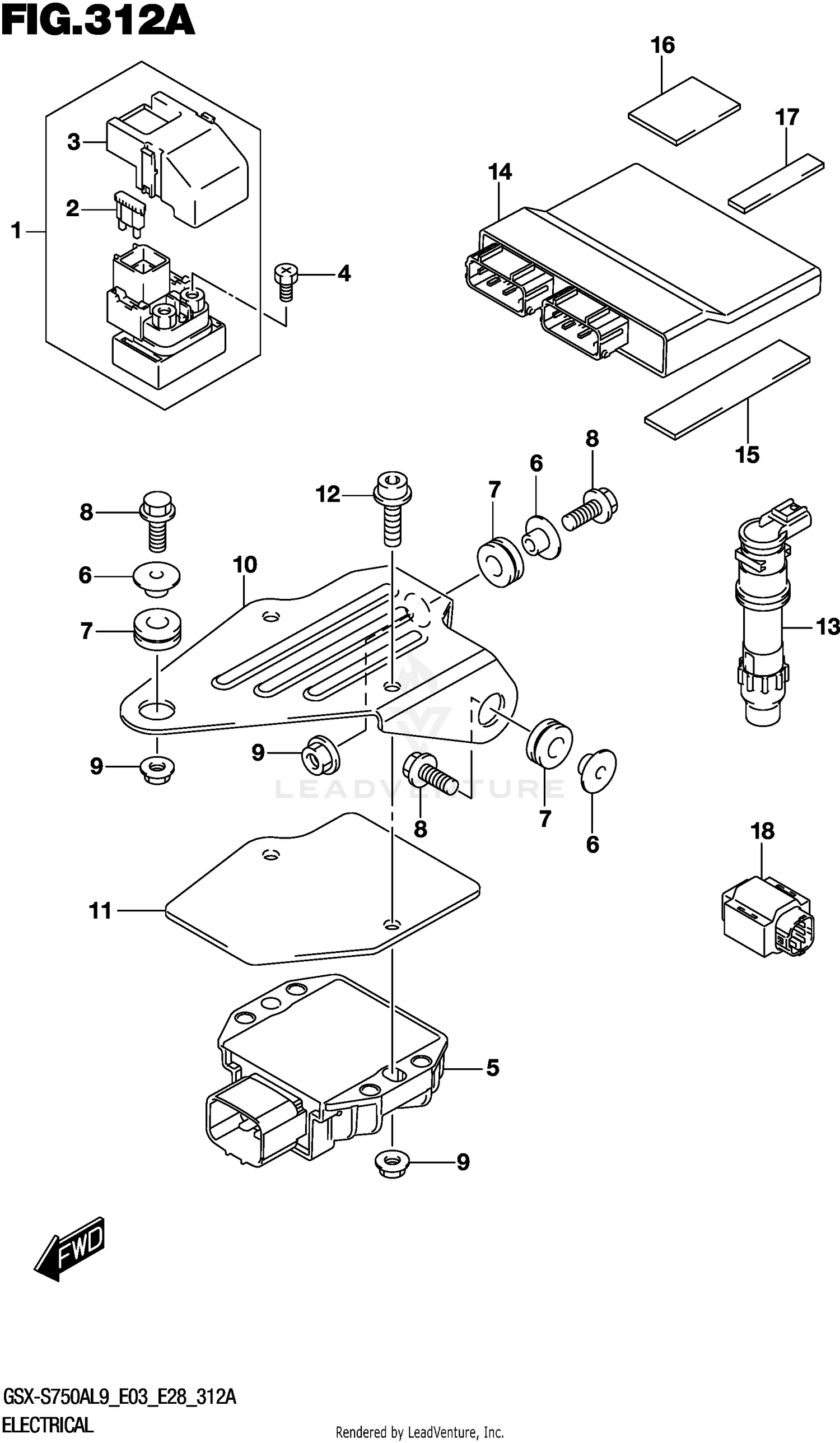

| Ref | Part Number | Description |
|---|
| 1 |
31800-06G02 |
RELAY ASSY, STARTING MOTOR This part replaces 31800-06G00. Price: $83.16 |
| 4 |
09128-06013 |
SCREW (6X8) Price: $1.50 |
| 5 |
32800-19K03 |
RECTIFIER ASSY This part replaces 32800-19K02. Price: $225.31 |
| 6 |
09180-06374 |
SPACER (6.2X8.4X6.1) Price: $4.08 |
| 7 |
09320-08066 |
CUSHION (8.4X18X6) Price: $10.04 |
| 8 |
02162-0620B |
SCREW Price: $2.56 |
| 9 |
08316-1006B |
NUT Price: $3.02 |
| 10 |
32830-13K00 |
BRACKET, RECTIFIER Price: $15.35 |
| 11 |
32831-13K00 |
PLATE, RECTIFIER Price: $15.20 |
| 12 |
07120-0625B |
BOLT Price: $3.79 |
| 13 |
33410-47H00 |
COIL ASSY, IGNITION Price: $191.83 |
| 14 |
32920-13K91 |
CONTROL UNIT,FI This part replaces 32920-13K90. Price: $1,473.30 |
| 15 |
33652-07D00 |
PROTECTOR (80X80X2) This part replaces 33652-38A10. Price: $6.98 |
| 16 |
33652-36100 |
CUSHION, BATTERY (30X40X2) Price: $2.85 |
