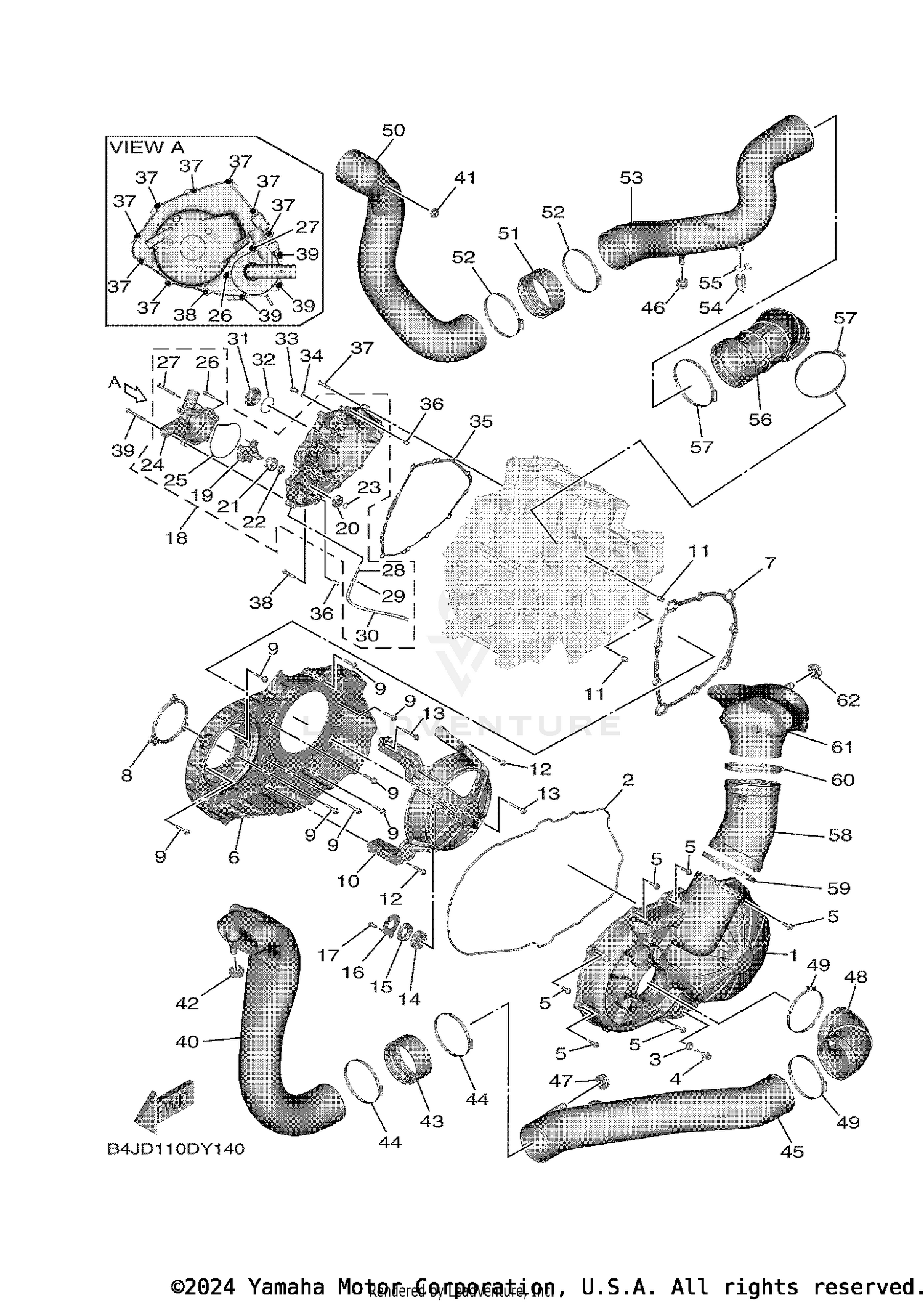

| Ref | Part Number | Description |
|---|
| 1 |
B4J-E5411-00-00 |
COVER, CRANKCASE 1 Price: $129.99 |
| 2 |
B4J-E5379-00-00 |
SEAL, CRANKCASE Price: $6.99 |
| 3 |
B4J-E5357-00-00 |
GROMMET Price: $3.80 |
| 4 |
B4J-E5351-00-00 |
PLUG, DRAIN Price: $4.25 |
| 5 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95822-06020-00. Price: $3.50 |
| 6 |
B4J-E5421-00-00 |
COVER, CRANKCASE 2 Price: $112.99 |
| 7 |
B4J-E5453-00-00 |
GASKET Price: $19.49 |
| 8 |
B4J-E5315-00-00 |
SEAL, CRANKCASE Price: $9.49 |
| 9 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95822-06030-00. Price: $4.65 |
| 10 |
B4J-15442-00-00 |
HOUSING, BEARING Price: $125.99 |
| 11 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 12 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95822-06030-00. Price: $4.65 |
| 13 |
95817-06040-00 |
BOLT, FLANGE This part replaces 95822-06040-00. Price: $6.49 |
| 14 |
93306-00426-00 |
BEARING This part replaces 93306-00401-00. Price: $46.99 |
| 15 |
93102-20371-00 |
OIL SEAL Price: $12.49 |
| 16 |
B4J-15381-00-00 |
PLATE, BEARING COVER Price: $3.60 |
| 17 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 18 |
B1R-E5430-00-00 |
CRANKCASE COVER AS Price: $182.99 |
| 20 |
93306-00105-00 |
BEARING This part replaces 93306-00106-00. Price: $33.99 |
| 21 |
4C8-12438-00-00 |
SEAL, MECHANICAL Price: $53.99 |
| 22 |
93101-12173-00 |
OIL SEAL Price: $14.49 |
| 23 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 24 |
B1R-E2422-00-00 |
COVER, HOUSING Price: $34.99 |
| 26 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 27 |
95022-06045-00 |
BOLT, FLANGE Price: $4.65 |
| 29 |
90467-070A0-00 |
CLIP Price: $8.49 |
| 30 |
90445-07176-00 |
HOSE (L200) This part replaces 90445-07370-00. Price: $7.70 |
| 31 |
90340-36004-00 |
PLUG, STRAIGHT SCREW Price: $20.99 |
| 32 |
93210-35804-00 |
O-RING Price: $0.60 |
| 33 |
92012-08012-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 34 |
90430-08143-00 |
GASKET Price: $3.35 |
| 35 |
BG4-15462-00-00 |
GASKET, CRANKCASE COVER 3 Price: $18.49 |
| 36 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 37 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 38 |
90105-06223-00 |
BOLT, FLANGE Price: $2.15 |
| 39 |
95022-06050-00 |
BOLT, FLANGE Price: $1.80 |
| 40 |
B4J-E5471-01-00 |
DUCT, AIR Price: $26.99 |
| 41 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 42 |
90480-22196-00 |
GROMMET Price: $3.35 |
| 43 |
BG4-E4476-10-00 |
SEAL Price: $9.49 |
| 44 |
90450-99806-00 |
HOSE CLAMP ASSY Price: $2.80 |
| 45 |
B4J-E5477-01-00 |
DUCT, AIR Price: $26.99 |
| 46 |
90480-18411-00 |
GROMMET Price: $12.49 |
| 47 |
90480-22196-00 |
GROMMET Price: $3.35 |
| 48 |
BG4-E547B-00-00 |
SEAL, AIR DUCT Price: $18.49 |
| 49 |
90450-99806-00 |
HOSE CLAMP ASSY Price: $2.80 |
| 50 |
B4J-E5475-00-00 |
DUCT, AIR Price: $35.99 |
| 51 |
BG4-E4476-10-00 |
SEAL Price: $9.49 |
| 52 |
90450-99806-00 |
HOSE CLAMP ASSY Price: $2.80 |
| 53 |
B4J-E5475-10-00 |
DUCT, AIR Price: $34.99 |
| 54 |
59V-14457-00-00 |
SEAL Price: $7.49 |
| 55 |
90467-220A1-00 |
CLIP Price: $6.49 |
| 56 |
BG4-E5474-01-00 |
SEAL, AIR DUCT This part replaces BG4-E5474-00-00. Price: $38.99 |
| 57 |
90450-99806-00 |
HOSE CLAMP ASSY Price: $2.80 |
| 58 |
B4J-E5472-00-00 |
SEAL, AIR DUCT Price: $29.99 |
| 59 |
B4J-E5484-01-00 |
CLAMP 2 Price: $10.49 |
| 60 |
B4J-G2821-01-00 |
BAND, CLAMP Price: $8.49 |
| 61 |
B4J-E5473-10-00 |
DUCT, AIR Price: $58.99 |
