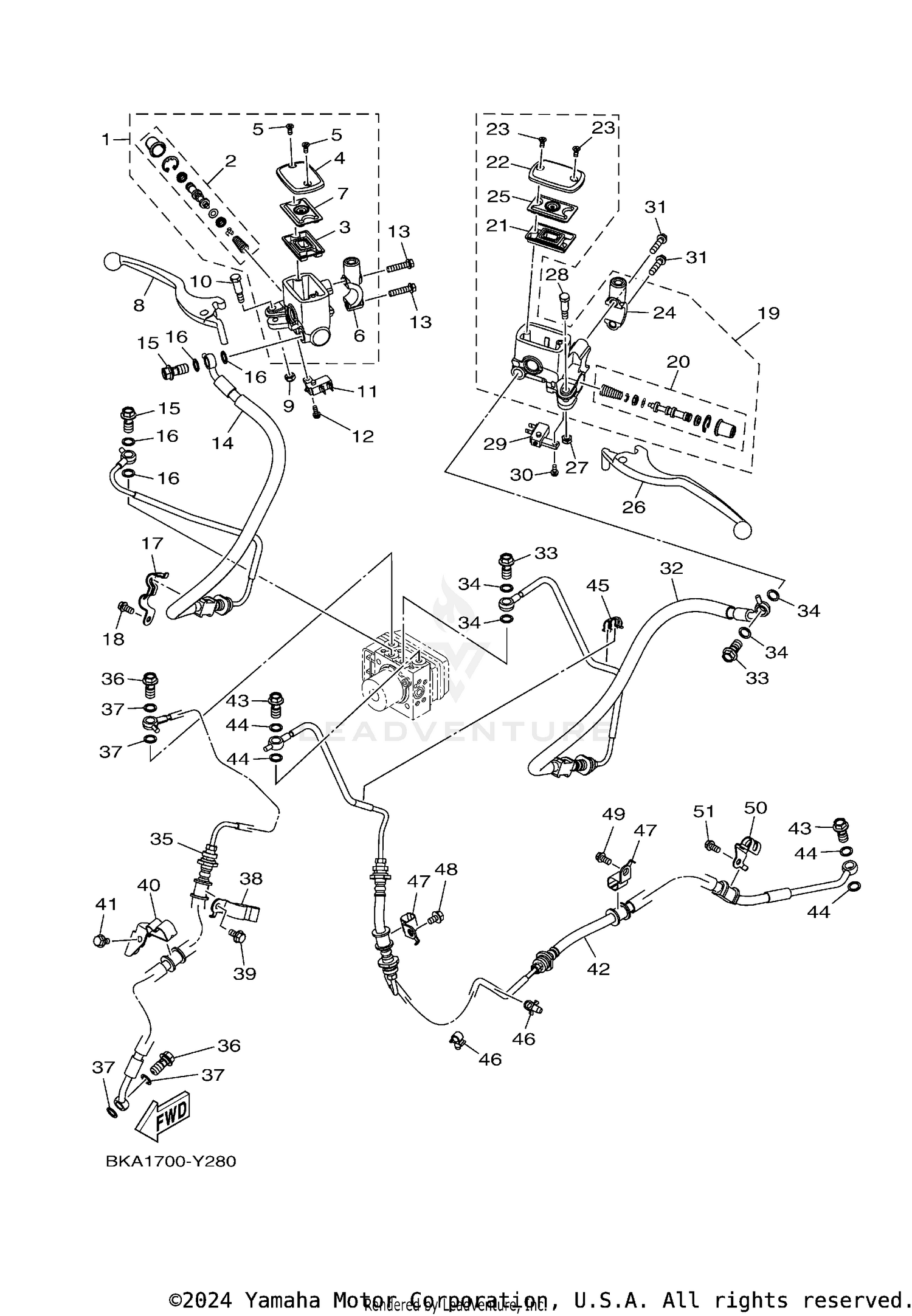

| Ref | Part Number | Description |
|---|
| 1 |
BKA-F5870-10-00 |
MASTER CYLINDER SU Price: $111.99 |
| 2 |
B74-F5807-00-00 |
CYLINDER KIT, MASTER Price: $29.99 |
| 3 |
5RB-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $6.49 |
| 4 |
1WD-F5852-00-00 |
CAP, RESERVOIR Price: $8.49 |
| 5 |
98707-04012-00 |
SCREW, FLAT HEAD This part replaces 36Y-2589H-00-00. Price: $1.85 |
| 6 |
B74-F5867-00-00 |
BRACKET, MASTER CYLINDER Price: $11.49 |
| 7 |
3C1-F5855-00-00 |
BUSH, DIAPHRAGM Price: $0.45 |
| 8 |
BKA-H3922-00-00 |
LEVER 2 Price: $21.99 |
| 9 |
95617-06100-00 |
NUT, U This part replaces 95602-06100-00. Price: $2.90 |
| 10 |
90109-06577-00 |
BOLT Price: $6.49 |
| 11 |
B6H-H3980-00-00 |
FRONT STOP SWITCH Price: $11.49 |
| 12 |
97602-04216-00 |
SCREW, PAN HEAD WITH This part replaces 97602-04212-00. Price: $3.55 |
| 13 |
95E37-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 14 |
B74-F5872-01-00 |
HOSE, BRAKE 1 This part replaces B74-F5872-00-00. Price: $72.99 |
| 15 |
90401-10159-00 |
BOLT, UNION This part replaces 90401-10812-00. Price: $12.49 |
| 16 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 17 |
B74-F5886-00-00 |
HOLDER, BRAKE HOSE Price: $1.90 |
| 18 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 19 |
BKA-F5870-00-00 |
MASTER CYLINDER SU Price: $113.99 |
| 20 |
B74-F5807-00-00 |
CYLINDER KIT, MASTER Price: $29.99 |
| 21 |
5RB-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $6.49 |
| 22 |
1WD-F5852-00-00 |
CAP, RESERVOIR Price: $8.49 |
| 23 |
98707-04012-00 |
SCREW, FLAT HEAD This part replaces 36Y-2589H-00-00. Price: $1.85 |
| 24 |
B74-F5867-00-00 |
BRACKET, MASTER CYLINDER Price: $11.49 |
| 25 |
3C1-F5855-00-00 |
BUSH, DIAPHRAGM Price: $0.45 |
| 26 |
BKA-H3912-00-00 |
LEVER 1 Price: $21.99 |
| 27 |
95617-06100-00 |
NUT, U This part replaces 95602-06100-00. Price: $2.90 |
| 28 |
90109-06577-00 |
BOLT Price: $6.49 |
| 29 |
B6H-H2530-00-00 |
STOP SWITCH ASSY Price: $12.49 |
| 30 |
97602-04216-00 |
SCREW, PAN HEAD WITH This part replaces 97602-04212-00. Price: $3.55 |
| 31 |
95E37-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 32 |
B74-F5873-01-00 |
HOSE, BRAKE 2 This part replaces B74-F5873-00-00. Price: $59.99 |
| 33 |
90401-10159-00 |
BOLT, UNION This part replaces 90401-10812-00. Price: $12.49 |
| 34 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 35 |
B74-F5874-01-00 |
HOSE, BRAKE 3 This part replaces B74-F5874-00-00. Price: $77.99 |
| 36 |
90401-10159-00 |
BOLT, UNION This part replaces 90401-10812-00. Price: $12.49 |
| 37 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 38 |
B74-F5875-00-00 |
HOLDER, BRAKE HOSE 1 Price: $1.95 |
| 39 |
95D07-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $0.40 |
| 40 |
BKA-F5887-00-00 |
HOLDER, BRAKE HOSE Price: $5.49 |
| 41 |
95D07-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $0.40 |
| 42 |
B74-F581J-00-00 |
HOSE, BRAKE 4 Price: $263.99 |
| 43 |
90401-10159-00 |
BOLT, UNION This part replaces 90401-10812-00. Price: $12.49 |
| 44 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 45 |
90464-06008-00 |
CLAMP Price: $2.60 |
| 46 |
90464-07805-00 |
CLAMP Price: $2.25 |
| 47 |
B74-F5876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $2.10 |
| 48 |
95817-06010-00 |
BOLT,FLANGE This part replaces 90105-06057-00. Price: $5.49 |
| 49 |
95D02-06012-00 |
BOLT, FLANGE DEEP Price: $0.50 |
| 50 |
B74-F587A-00-00 |
HOLDER, BRAKE HOSE Price: $9.49 |
