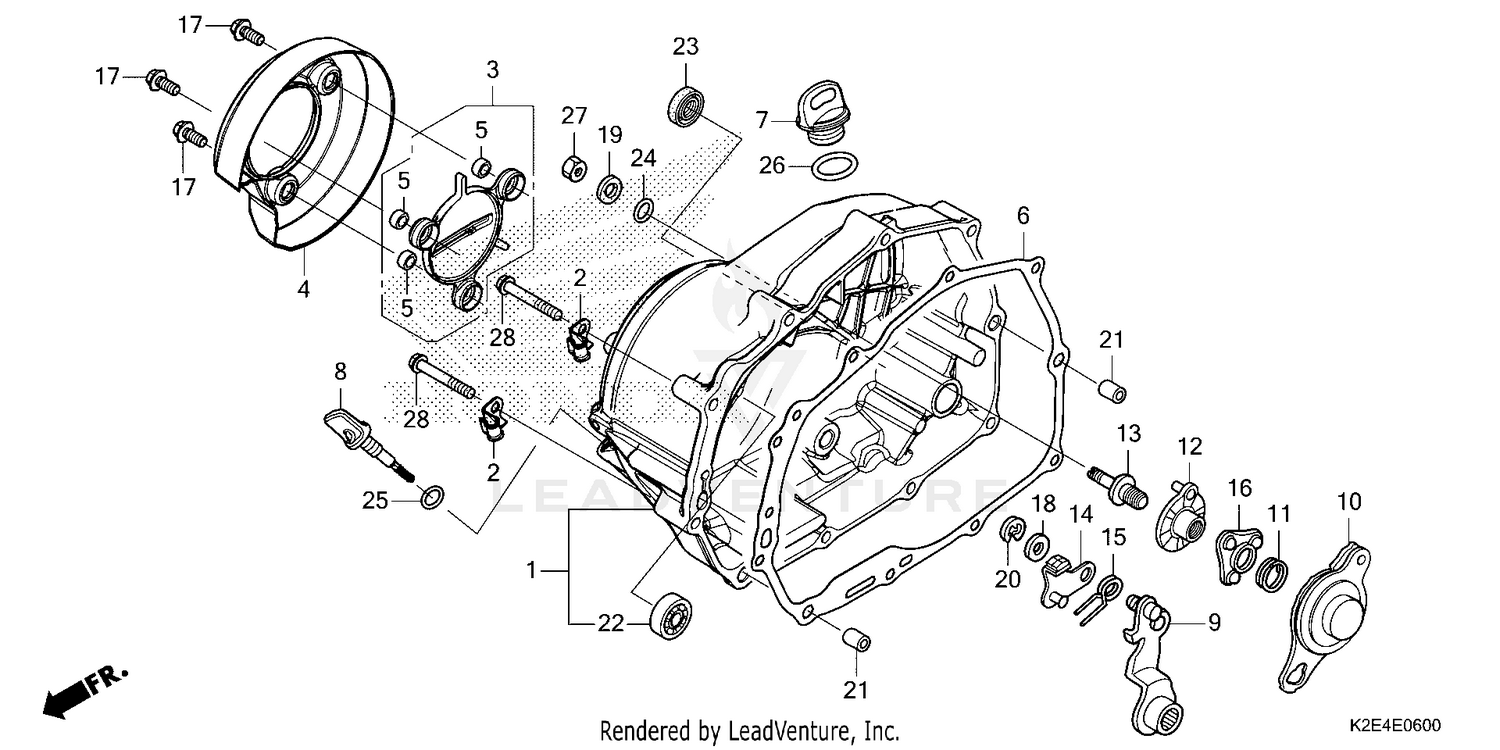

| Ref | Part Number | Description |
|---|
| 1 |
11330-K2E-T00 |
COVER, R. CRANKCASE Price: $101.89 |
| 2 |
11346-KTR-940 |
CLAMP A, OIL TEMP SENSOR CORD Price: $0.96 |
| 3 |
11370-K2E-T00 |
PROTECTOR, R. COVER (INNER) Price: $27.05 |
| 4 |
11372-K2E-T00 |
PROTECTOR, R. COVER (OUTER) Price: $62.91 |
| 5 |
11373-K2E-T00 |
COLLAR (10MM) Price: $1.31 |
| 6 |
11394-K73-T60 |
GASKET, R. CRANKCASE COVER Price: $7.15 |
| 7 |
15611-K0F-T00 |
CAP, OIL FILLER Price: $4.73 |
| 8 |
15651-K2E-T00 |
DIPSTICK, OIL Price: $6.58 |
| 9 |
22810-KPH-900 |
LEVER, CLUTCH Price: $41.53 |
| 10 |
22820-KYZ-900 |
PLATE, CLUTCH CAM Price: $35.71 |
| 11 |
22825-046-000 |
SPRING, CAM PLATE SIDE Price: $2.49 |
| 12 |
22830-KYZ-900 |
PLATE, CLUTCH LIFTER Price: $18.22 |
| 13 |
22846-KPH-901 |
BOLT, CLUTCH ADJUSTING Price: $2.05 |
| 14 |
22850-KPH-900 |
PLATE, BRAKE Price: $11.82 |
| 15 |
22853-KPH-900 |
SPRING, BRAKE Price: $1.53 |
| 16 |
22860-HB3-000 |
RETAINER, BALL Price: $9.82 |
| 17 |
90005-MGZ-J00 |
BOLT, FLANGE (6X14) Price: $1.13 |
| 18 |
90443-844-000 |
WASHER (8MM) (NOT AVAILABLE) Price: $0.78 |
| 19 |
90485-040-000 |
WASHER (8MM) Price: $2.02 |
| 20 |
90605-166-720 |
CIRCLIP (7MM) Price: $2.05 |
| 21 |
90702-KFM-900 |
PIN, DOWEL (8X12) Price: $0.76 |
| 22 |
91007-KPH-901 |
BEARING, RADIAL BALL SPECIAL (6001U) Price: $30.20 |
| 23 |
91204-259-003 |
OIL SEAL (16X28X7) This part replaces 91204-MC7-003. Price: $7.04 |
| 24 |
91303-001-010 |
O-RING (8MM) Price: $2.76 |
| 25 |
91306-K64-N00 |
O-RING (6.3X2.3) Price: $2.75 |
| 26 |
91307-KRM-840 |
O-RING (18X3) Price: $0.95 |
| 27 |
94030-08000 |
NUT, HEX. (8MM) Price: $1.12 |
