| Ref | Part Number | Description |
|---|
| 1 |
50100-MLR-D00ZA |

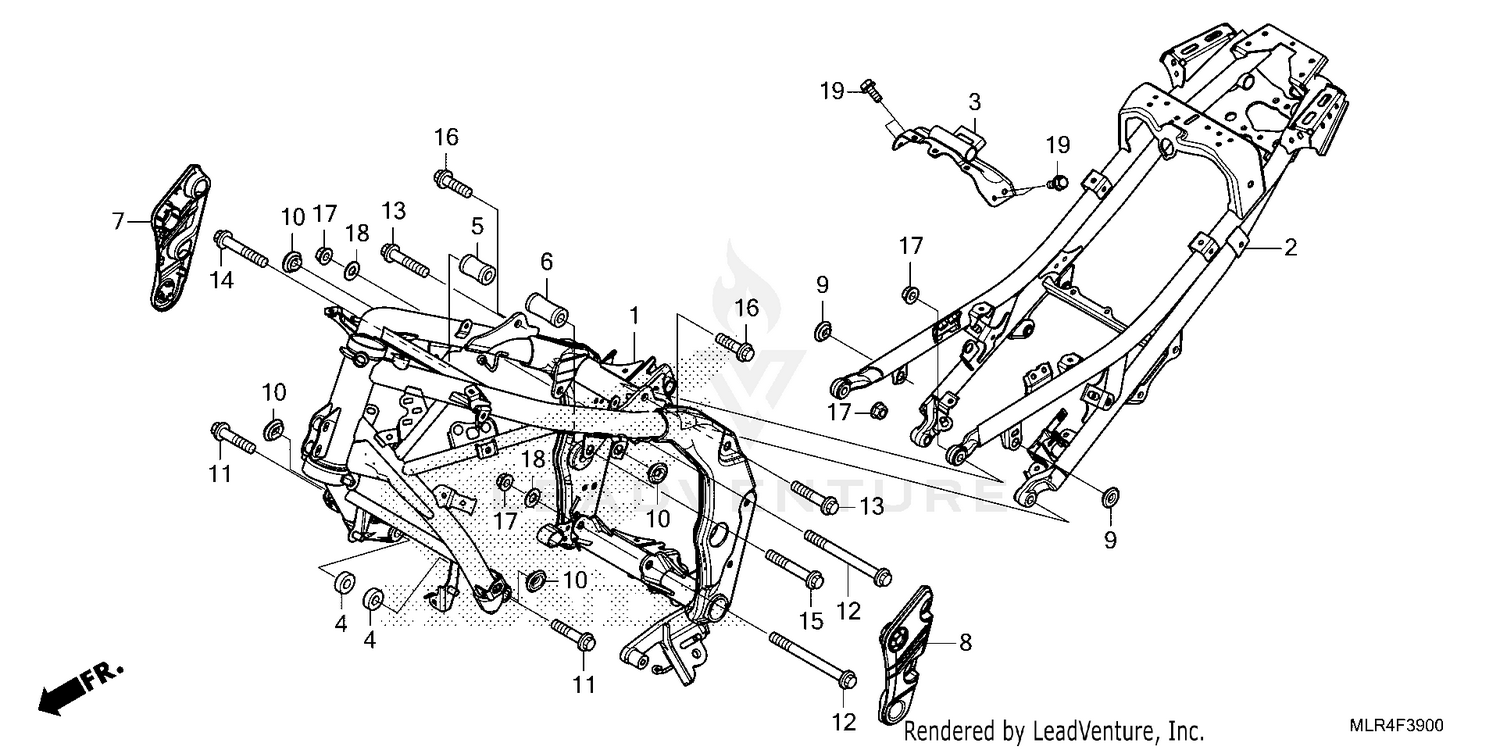

FRAME *NH303M* Price: $540.30 |
| 2 |
50240-MKP-J00ZA |
RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC) Price: $434.09 |
| 3 |
50295-MGZ-J00 |
BRACKET, FUEL TANK Price: $14.00 |
| 4 |
50351-MGZ-J01 |
COLLAR A, ENGINE HANGER Price: $5.29 |
| 5 |
50353-MGZ-J00 |
COLLAR B, R. ENGINE HANGER Price: $8.44 |
| 6 |
50354-MGZ-J00 |
COLLAR B, L. ENGINE HANGER Price: $9.67 |
| 7 |
50401-MJW-J00 |
COVER, R. PIVOT Price: $7.04 |
| 8 |
50451-MJW-J00 |
COVER, L. PIVOT Price: $7.04 |
| 9 |
83551-376-000 |
GROMMET, SIDE COVER Price: $3.62 |
| 10 |
83551-GE2-000 |
GROMMET, AIR CLEANER HOUSING Price: $7.07 |
| 11 |
90101-MKP-DN0 |
BOLT, FLANGE (10X40) Price: $1.55 |
| 12 |
90104-KYJ-900 |
BOLT, FLANGE (10X146) Price: $3.67 |
| 13 |
90110-MKP-DN0 |
BOLT, FLANGE (10X52) Price: $2.18 |
| 14 |
90166-GHB-760 |
BOLT, FLANGE (10X65) Price: $2.00 |
| 15 |
90166-GHB-780 |
BOLT, FLANGE (10X75) Price: $2.18 |
| 16 |
90168-S2A-010 |
BOLT, FLANGE (10X35) Price: $5.25 |
| 17 |
94050-10000 |
NUT, FLANGE (10MM) Price: $1.62 |
| 18 |
94101-10800 |
WASHER, PLAIN (10.5X22X1.6) Price: $1.97 |
