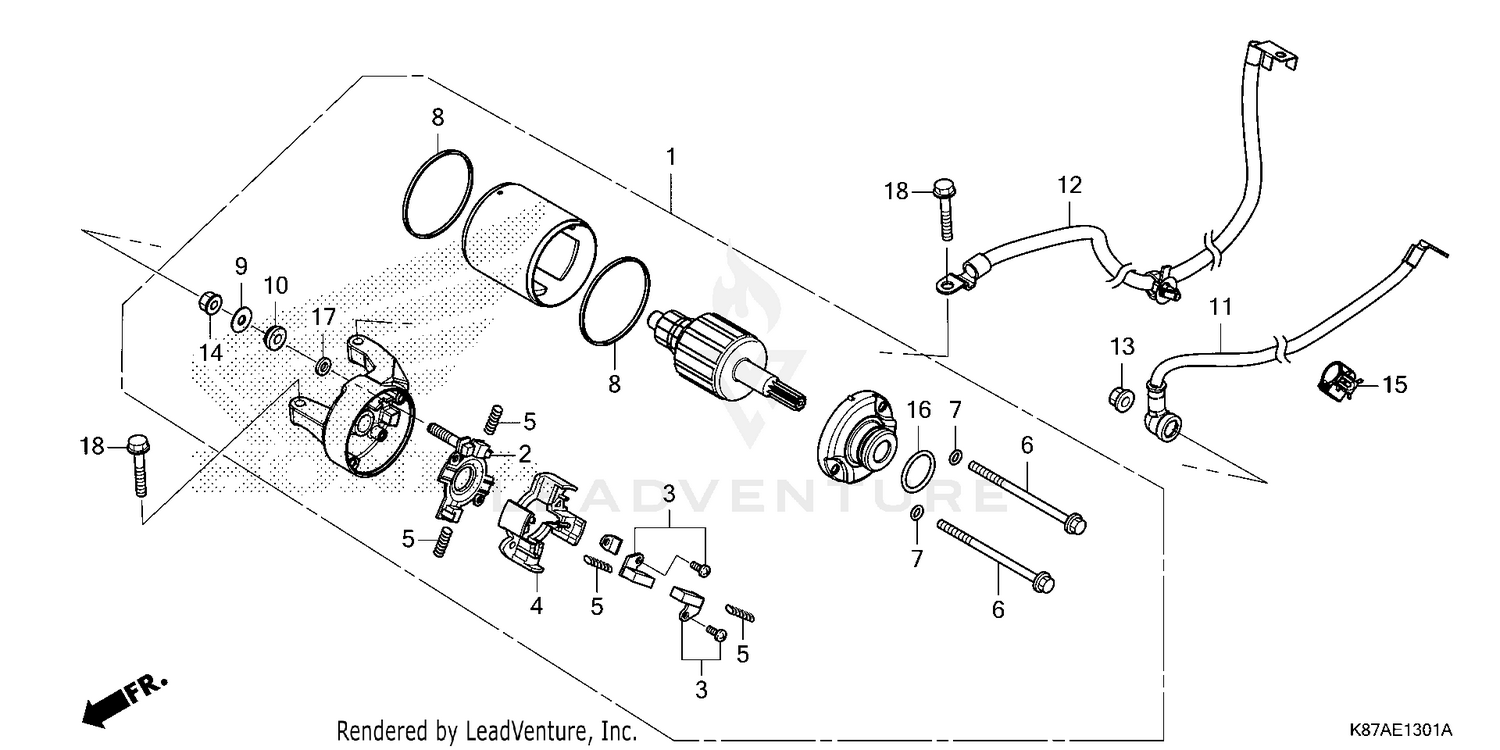

| Ref | Part Number | Description |
|---|
| 1 |
31200-K0A-DB1 |
STARTER MOTOR ASSY. Price: $131.98 |
| 2 |
31201-K0Z-901 |
BRUSH SET Price: $14.07 |
| 3 |
31202-K0Z-901 |
BRUSH SET Price: $6.44 |
| 4 |
31203-K0Z-901 |
HOLDER, BRUSH Price: $2.64 |
| 5 |
31204-K0Z-901 |
SPRING, BRUSH Price: $0.42 |
| 6 |
31205-K0Z-901 |
BOLT, THROUGH Price: $0.65 |
| 7 |
31206-K0Z-901 |
O-RING Price: $0.15 |
| 8 |
31207-K0Z-901 |
SEAL, YOKE Price: $1.67 |
| 9 |
31210-K0Z-901 |
WASHER, PLAIN Price: $0.13 |
| 10 |
32112-K0Z-901 |
INSULATOR, BUSH Price: $0.58 |
| 11 |
32410-K2Y-A00 |
CABLE, STARTER MOTOR Price: $17.56 |
| 12 |
32601-K87-A00 |
CABLE, BATTERY GROUND Price: $15.62 |
| 13 |
90071-KTE-D00 |
NUT-WASHER (6MM) Price: $0.20 |
| 14 |
90201-K0Z-901 |
NUT, FLANGE Price: $0.24 |
| 15 |
90690-GHB-651 |
CLIP, CABLE (15MM) Price: $2.49 |
| 16 |
91309-K0Z-901 |
O-RING Price: $0.44 |
| 17 |
91320-K0Z-901 |
RING, SEAL Price: $0.33 |
