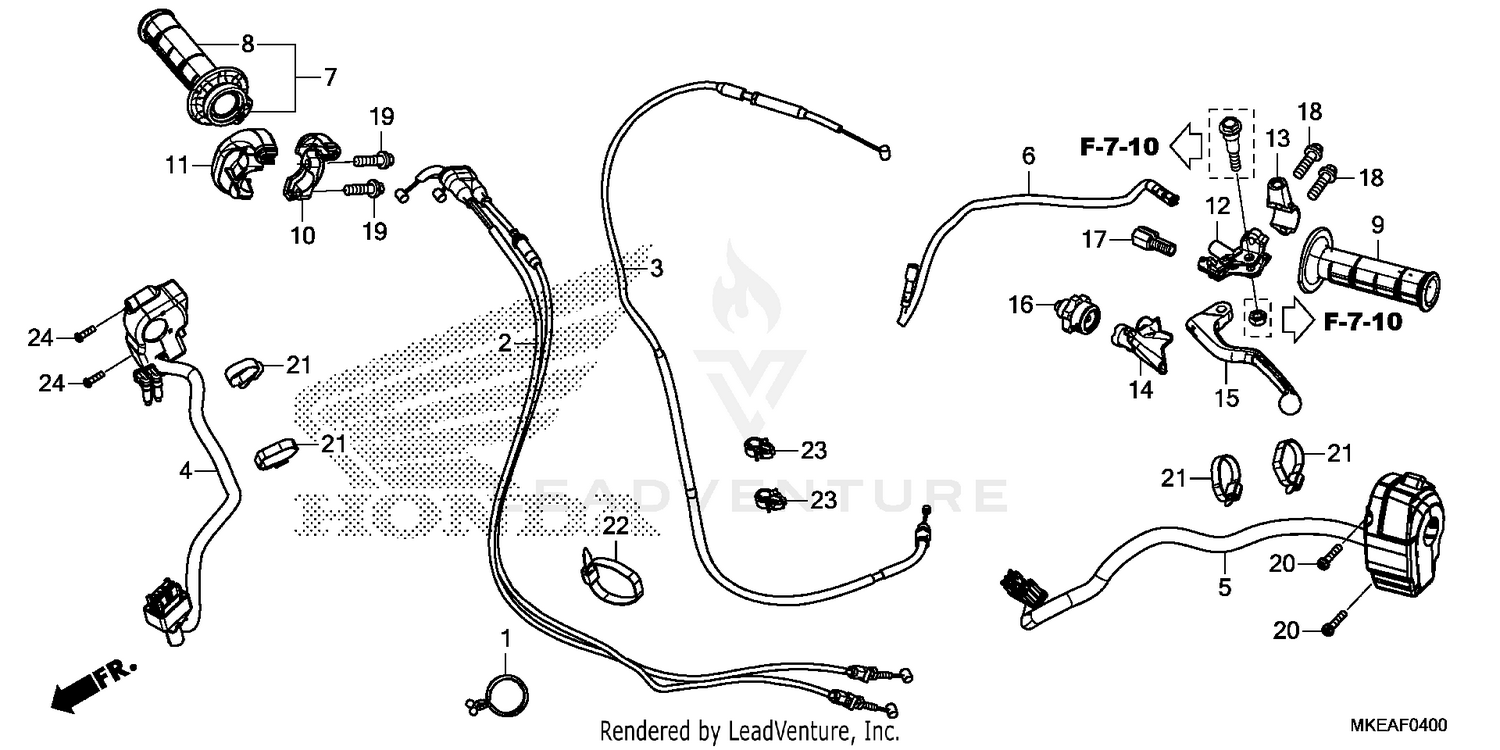

| Ref | Part Number | Description |
|---|
| 1 |
15712-PD1-811 |
CLIP, BREATHER TUBE PROTECTOR Price: $11.25 |
| 2 |
17910-MKE-A51 |
CABLE, THROTTLE Price: $72.45 |
| 3 |
22870-MKE-A51 |
CABLE, CLUTCH Price: $37.09 |
| 4 |
35130-MKE-A51 |
SWITCH ASSY., ENGINE STOP Price: $140.69 |
| 5 |
35200-MKE-A52 |
SWITCH ASSY., TURN SIGNAL Price: $152.47 |
| 6 |
35330-MKE-A51 |
SWITCH ASSY., CLUTCH Price: $23.42 |
| 7 |
53140-KRN-A30 |
GRIP, THROTTLE Price: $27.31 |
| 8 |
53165-MEN-305 |
GRIP, R. HANDLE (COO) This part replaces 53165-KRN-A30. Price: $13.53 |
| 9 |
53166-KRN-A30 |
GRIP, L. HANDLE Price: $12.53 |
| 10 |
53167-MKE-A00 |
HOUSING, THROTTLE (UPPER) Price: $34.18 |
| 11 |
53168-MKE-A50 |
HOUSING, THROTTLE (LOWER) Price: $30.62 |
| 12 |
53172-MKE-A60 |
BRACKET, L. HANDLE LEVER Price: $45.75 |
| 13 |
53174-MKE-A50 |
HOLDER, L. LEVER BRACKET Price: $17.11 |
| 14 |
53177-MKE-A60 |
COVER, L. HANDLE LEVER Price: $12.27 |
| 15 |
53178-MEN-A01 |
LEVER, L. HANDLEBAR Price: $30.04 |
| 16 |
53179-MEN-671 |
DIAL, CLUTCH CABLE ADJUSTING Price: $13.65 |
| 17 |
53192-MEN-670 |
BOLT, WIRE ADJUSTING Price: $9.95 |
| 18 |
90020-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 19 |
90021-GHB-660 |
BOLT, FLANGE (6X20) Price: $2.58 |
| 20 |
90508-MGE-D00 |
SCREW-WASHER (5X25) Price: $1.47 |
| 21 |
90650-KW3-000 |
BAND, WIRE Price: $5.62 |
| 22 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 23 |
90682-MKE-A01 |
CLIP, CABLE Price: $3.49 |
| 24 |
93892-04016-08 |
SCREW-WASHER (4X16) This part replaces 93892-04016-07. Price: $0.77 |
