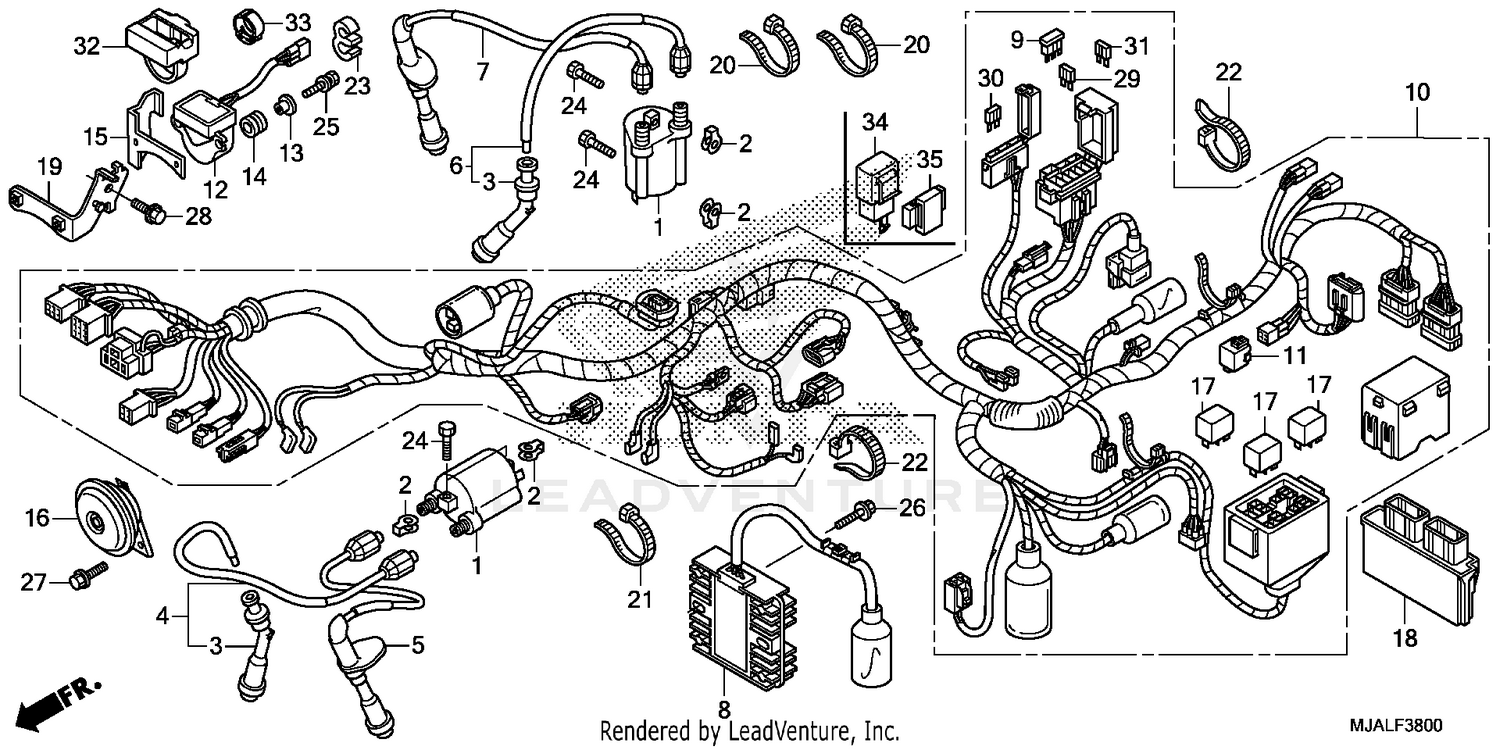

| Ref | Part Number | Description |
|---|
| 1 |
30510-MCC-003 |
COIL, IGNITION Price: $108.96 |
| 2 |
30520-ML7-000 |
SPACER, IGNITION COIL Price: $4.75 |
| 3 |
30700-KK6-153 |
CAP ASSY., NOISE SUPPRESSOR Price: $33.05 |
| 4 |
30771-MEG-000 |
WIRE ASSY., R. FR. IGNITION Price: $25.85 |
| 5 |
30772-MEG-000 |
WIRE ASSY., L. FR. IGNITION Price: $27.45 |
| 6 |
30773-MFE-641 |
WIRE ASSY., L. RR. IGNITION Price: $37.02 |
| 7 |
30774-MFE-641 |
WIRE ASSY., R. RR. IGNITION Price: $40.35 |
| 8 |
31600-MFE-641 |
RECTIFIER ASSY., REGULATE Price: $213.11 |
| 9 |
31730-MAS-601 |
DIODE ASSY., THREE WAY (SUMITOMO) Price: $13.09 |
| 10 |
32100-MEG-L91 |
WIRE HARNESS Price: $1,206.56 |
| 11 |
32606-GEV-761 |
CAP, DUMMY (4P) (RED) (Honda Code 7679160) Price: $5.16 |
| 12 |
35161-MJA-A01 |
SENSOR, BANK ANGLE Price: $120.15 |
| 13 |
35162-MN5-003 |
COLLAR Price: $9.11 |
| 14 |
35163-MN5-003 |
GROMMET Price: $3.95 |
| 15 |
35165-MEG-A60 |
PLATE, BANK ANGLE SENSOR Price: $38.80 |
| 16 |
38110-KB1-921 |
HORN (HIGH) Price: $65.89 |
| 17 |
38501-MKP-DN1 |
RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003. Price: $5.85 |
| 18 |
38770-MJA-CQ2 |
PGM-FI UNIT This part replaces 38770-MJA-CQ1. Price: $1,047.55 |
| 19 |
50128-MEG-A60 |
BRACKET, BANK ANGLE SENSOR Price: $15.18 |
| 20 |
90620-SB2-003 |
BAND, WIRE HARNESS Price: $27.07 |
| 21 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 22 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 23 |
90658-ZA0-930 |
CLIP, HIGH TENSION CORD (L. SIDE) Price: $3.12 |
| 24 |
92101-06020-4J |
BOLT, HEX. (6X20) Price: $1.58 |
| 25 |
93401-04025-08 |
BOLT-WASHER (4X25) Price: $0.76 |
| 26 |
95701-06020-00 |
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) Price: $1.85 |
| 27 |
95701-08012-07 |
BOLT, FLANGE (8X12) Price: $1.88 |
| 28 |
96001-06010-00 |
BOLT, FLANGE (6X10) Price: $1.70 |
| 29 |
98200-41000 |
FUSE, MINI (10A) Price: $1.38 |
| 30 |
98200-41500 |
FUSE, MINI (15A) (Honda Code 4853438) Price: $1.27 |
| 31 |
98200-42000 |
FUSE, MINI (20A) Price: $1.27 |
| 32 |
35165-MJA-A00 |
CUSHION, BANK ANGLE Price: $10.49 |
