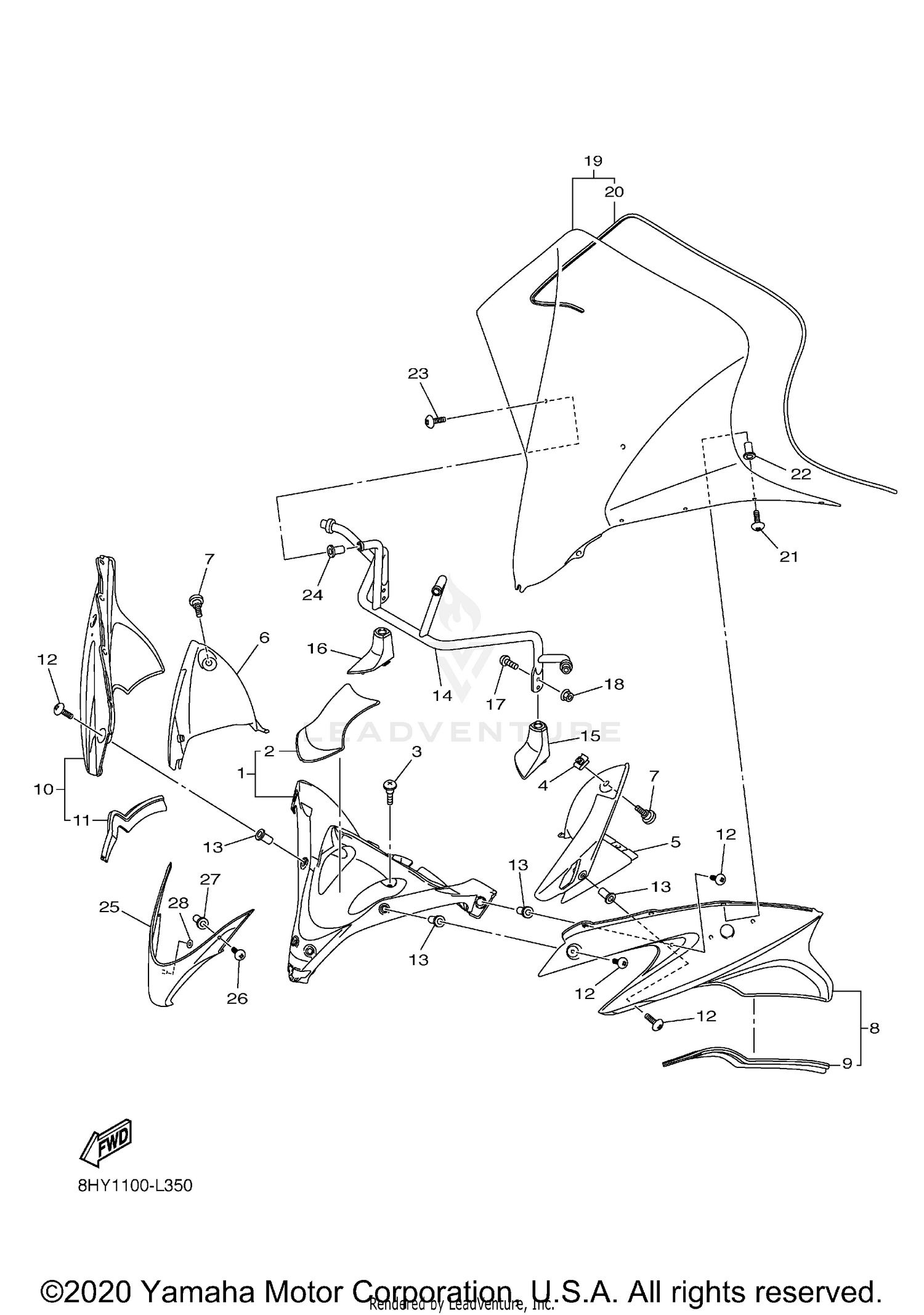

| Ref | Part Number | Description |
|---|
| 1 |
8FP-Y7725-00-00 |
COVER, HEADLIGHT ASSY Price: $222.99 |
| 2 |
8HF-77198-00-00 |
DAMPER 1 Price: $64.99 |
| 3 |
90154-06009-00 |
SCREW, BINDING Price: $3.60 |
| 4 |
90183-06100-00 |
NUT, SPRING Price: $11.49 |
| 5 |
8FP-77185-00-00 |
PLATE 1 Price: $57.99 |
| 6 |
8FP-77186-00-00 |
PLATE 2 Price: $64.99 |
| 7 |
90154-06009-00 |
SCREW, BINDING Price: $3.60 |
| 8 |
8HF-K723A-00-00 |
FAIRING 2 Price: $64.99 |
| 9 |
8HF-K7165-00-00 |
TRIM 1 Price: Call Us |
| 10 |
8HF-K723B-00-00 |
FAIRING 3 Price: $64.99 |
| 11 |
8HF-K7166-00-00 |
TRIM 2 Price: Call Us |
| 12 |
90150-05024-00 |
SCREW, ROUND HEAD Price: $3.35 |
| 13 |
90179-05523-00 |
NUT Price: $7.49 |
| 14 |
8HX-77125-00-00 |
STAY 1 Price: $417.99 |
| 15 |
8HF-77431-00-00 |
GROMMET 1 Price: $13.99 |
| 16 |
8HF-77432-00-00 |
GROMMET 2 Price: $8.49 |
| 17 |
92012-06014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 18 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 19 |
8HF-K7210-00-00 |
WINDSHIELD COMP. Price: $182.99 |
| 20 |
8HF-K7213-00-00 |
TRIM, UPPER Price: $14.03 |
| 21 |
90149-05299-00 |
SCREW Price: $4.45 |
| 22 |
90179-05523-00 |
NUT Price: $7.49 |
| 23 |
90150-05024-00 |
SCREW, ROUND HEAD Price: $3.35 |
| 24 |
90179-05003-00 |
NUT Price: $6.49 |
| 25 |
8HF-K7231-00-00 |
FAIRING Price: $5.99 |
| 26 |
90150-05024-00 |
SCREW, ROUND HEAD Price: $3.35 |
| 27 |
90179-05523-00 |
NUT Price: $7.49 |
