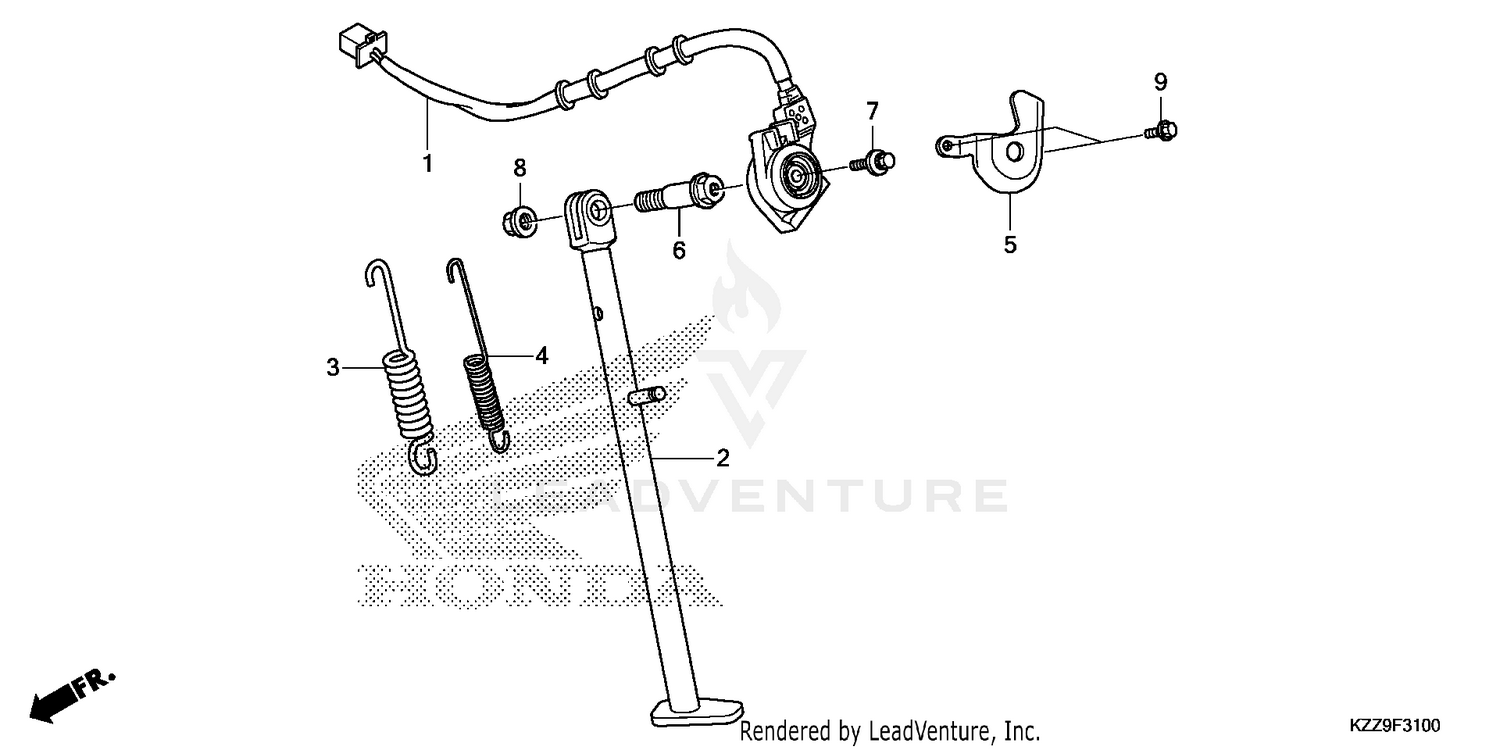

STAND
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35700-KZZ-901 | SWITCH ASSY., SIDE STAND Price: $52.35 |
| 2 | 50530-KZZ-J00 | BAR, SIDE STAND Price: $52.69 |
| 3 | 50541-KZZ-J00 | SPRING, SIDE STAND Price: $9.09 |
| 4 | 50545-KZZ-J00 | SUB-SPRING, SIDE STAND Price: $2.89 |
| 5 | 50547-KZZ-900 | GUARD, SIDE STAND SWITCH Price: $2.71 |
| 6 | 90108-KPP-860 | BOLT, SIDE STAND PIVOT (NA USE ALT:90108-MK6-670) Price: $4.73 |
| 7 | 90147-KVY-900 | BOLT, SWITCH SETTING Price: $1.60 |
| 8 | 90304-KGH-901 | NUT, U (10MM) Price: $3.96 |
