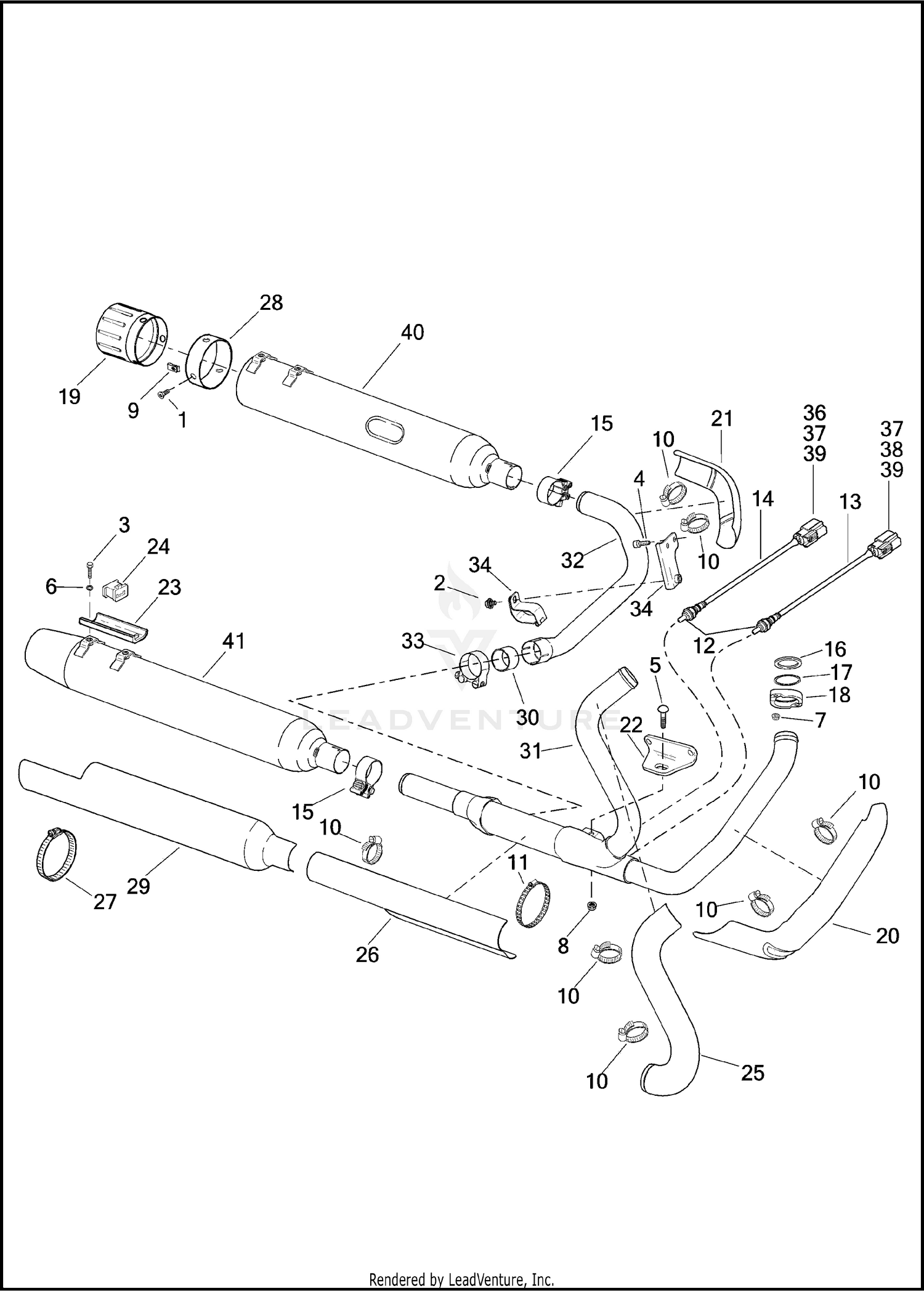

| Ref | Part Number | Description |
|---|
| 1 |
10200384 |
SCREW 1/4-20 X 1/2 HEX SOCKET HD. (STAINLESS) This part replaces 2225. Price: $5.27 |
| 2 |
3576 |
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER. Price: $0.59 |
| 3 |
3929 |
SCREW 5/16-18 X 1/2 HEX HD. Price: $1.22 |
| 4 |
4705 |
SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH Price: $1.19 |
| 5 |
5416 |
BOLT 3/8-16 X 1/8 CARRIAGE (GRADE 5) Price: $1.77 |
| 6 |
7041 |
LOCKWASHER,REGULAR Price: $0.59 |
| 7 |
7593 |
NUT 5/16-24 FLANGE Price: $0.59 |
| 8 |
7601 |
LOCKNUT 3/8-16 FLANGE Price: $1.22 |
| 9 |
8146 |
NUT CLIP Price: $3.52 |
| 10 |
9955 |
CLAMP WORM DRIVE #24 Price: $3.54 |
| 11 |
9956 |
CLAMP WORM DRIVE #40 Price: $2.94 |
| 12 |
11936 |
GASKET OXYGEN (O2) SENSOR Price: $1.69 |
| 13 |
27729-10 |
SENSOR OXYGEN (O2), FRONT, W/ 12, 37, 38 & 39 Price: $69.40 |
| 14 |
27809-10 |
SENSOR OXYGEN (O2), REAR, W/ 12, 37, 38 & 39 Price: $69.40 |
| 15 |
65296-95B |
STRAP/CLAMP,EXH MT,MUFFLER This part replaces 65296-95A. Price: $9.22 |
| 16 |
65324-83B |
GASKET EXHAUST PORT Price: $7.88 |
| 17 |
65325-83A |
RETAINING RING EXHAUST GASKET Price: $1.22 |
| 18 |
65328-83A |
CLAMP EXHAUST MANIFOLD Price: $21.39 |
| 19 |
65586-11 |
END CAP (CHROME W/ BLACK GROOVES) Not Available Price: |
| 20 |
65634-09 |
SHIELD RIGHT EXHAUST PIPE, FRONT Price: $259.36 |
| 21 |
65636-09 |
SHIELD LEFT EXHAUST PIPE, REAR Price: $230.27 |
| 22 |
65678-09 |
BRACKET REAR EXHAUST MOUNT Price: $6.05 |
| 23 |
65723-85 |
MOUNTING BRACKET Price: $12.94 |
| 24 |
65724-85A |
MOUNT RUBBER This part replaces 65724-85. Price: $6.80 |
| 25 |
65951-09 |
HEAT SHIELD ASSEMBLY REAR EXHAUST PIPE Not Available Price: |
| 26 |
65952-09 |
HEAT SHIELD ASSEMBLY EXHAUST PIPE, RIGHT REAR LOWER Price: $259.36 |
| 27 |
66047-05 |
CLAMP WORM Price: $5.11 |
| 28 |
66078-06 |
RING RETENTION Price: $14.11 |
| 29 |
66219-06 |
HEAT SHIELD MUFFLER, RIGHT Price: $226.15 |
| 29 |
66220-06 |
HEAT SHIELD MUFFLER, LEFT Price: $226.15 |
| 30 |
66813-09 |
GASKET CLAMP Price: $5.08 |
| 31 |
66855-10A |
EXHAUST PIPE ASSEMBLY CATALYTIC (CHROME) Price: $927.54 |
| 32 |
66858-09 |
CROSSOVER PIPE ASSEMBLY (CHROME) Price: $137.91 |
| 33 |
66859-09 |
CLAMP EXHAUST Price: $30.03 |
| 34 |
66861-09B |
MOUNT,MUF,HINGED This part replaces 66861-09A. Price: $13.50 |
| 35 |
66881-09 |
BRACKET EXHAUST PIPE HANGER Price: $14.08 |
| 36 |
72177-07BK |
HOUSING 4-WAY (BLACK) Price: $5.39 |
| 37 |
72344-10 |
TERMINAL SOCKET, 22AWG (GOLD) Price: $0.58 |
| 38 |
72444-07GY |
HOUSING 4-WAY (GRAY) Price: $12.29 |
| 39 |
73307-10 |
TERMINAL SOCKET, 22AWG Price: $0.59 |
| 40 |
64768-09A |
MUFFLER LEFT (CHROME) (HDI, ENGLAND) Not Available Price: |
| 40 |
64900111 |
MUFFLER LEFT, (CHROME) (DOMESTIC, CANADA, CALIFORNIA, AUSTRALIA) Not Available Price: |
| 40 |
65949-09 |
MUFFLER LEFT (CHROME) (JAPAN) Price: $586.22 |
| 41 |
64900112 |
MUFFLER RIGHT, (CHROME) (DOMESTIC, CANADA, CALIFORNIA, AUSTRALIA) Not Available Price: |
| 41 |
65748-09 |
MUFFLER RIGHT (CHROME) (JAPAN) Not Available Price: |
