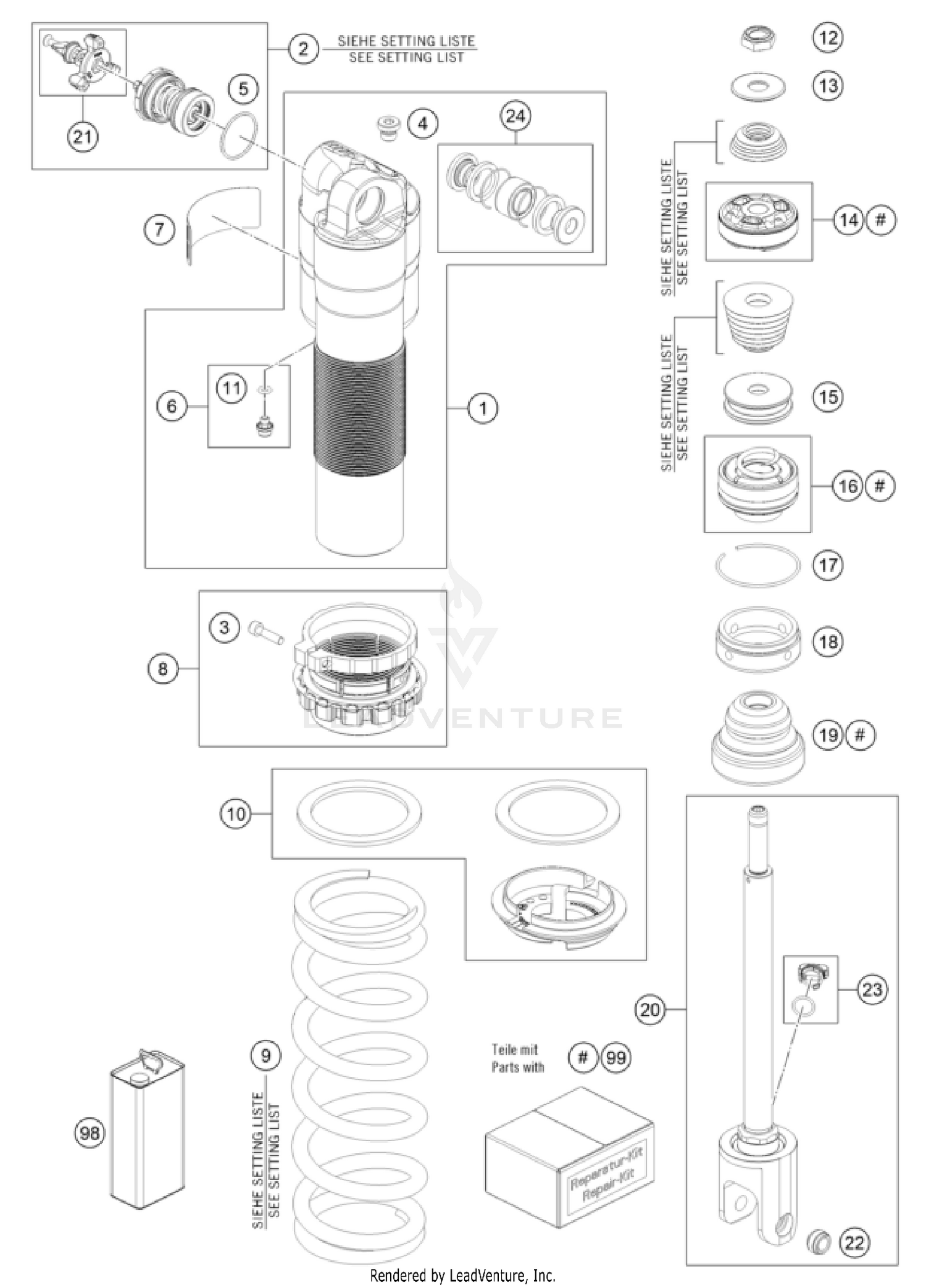

| Ref | Part Number | Description |
|---|
| 3 |
0912050203 |
AH SCREW DIN0912-M 5X20 This part replaces 14460042. Price: $1.20 |
| 4 |
50180095 |
HS cylinder-head screw R1/8 l8 Price: $2.85 |
| 5 |
50180217 |
O-ring 27x1,5 Viton70 green ISO 3601-3S Price: $2.41 |
| 6 |
36120151S1T |
Screw fill M5x6 cpl. This part replaces 36120151S1. Price: $5.16 |
| 7 |
52000312 |
Sticker XACT LDS 80x29 Price: $31.12 |
| 8 |
S938100001S0000 |
SPRING SUPPORT Price: $36.40 |
| 10 |
S828800000S01BQT |
Spring seat 26,5x76,5x22,3 cpl. This part replaces S828800000S01BQ. Price: $44.99 |
| 11 |
S208600003000FB |
O-ring 5,28x1,78 HNBR70 red Price: $0.76 |
| 12 |
50181207 |
Locking nut M12x1 h9 WAF19 Price: $9.23 |
| 13 |
50181344 |
Rebound disc 12x34x3,5 h0 Price: $16.27 |
| 14 |
S625000000S0000 |
Piston 12x49,4x18 cpl Price: $58.84 |
| 15 |
50181091 |
Rebound disc 12x43x12,5 h8 Price: $30.24 |
| 16 |
50180603S7 |
DichtungstrSger 50x28 cpl. Price: $74.24 |
| 17 |
50180126 |
Round-wire snap ring 53x1,75 Price: $1.20 |
| 18 |
S409100005000FA |
Cap 50,12x6 h19,5 Price: $30.68 |
| 19 |
50181100 |
Rubber pad 18x58x46 black Price: $22.76 |
| 20 |
S421800010S0100 |
Mounting fork with piston rod cpl. Link Price: $262.67 |
| 22 |
46811205 |
Bush M10x12/15/13x9,5 Price: $7.91 |
