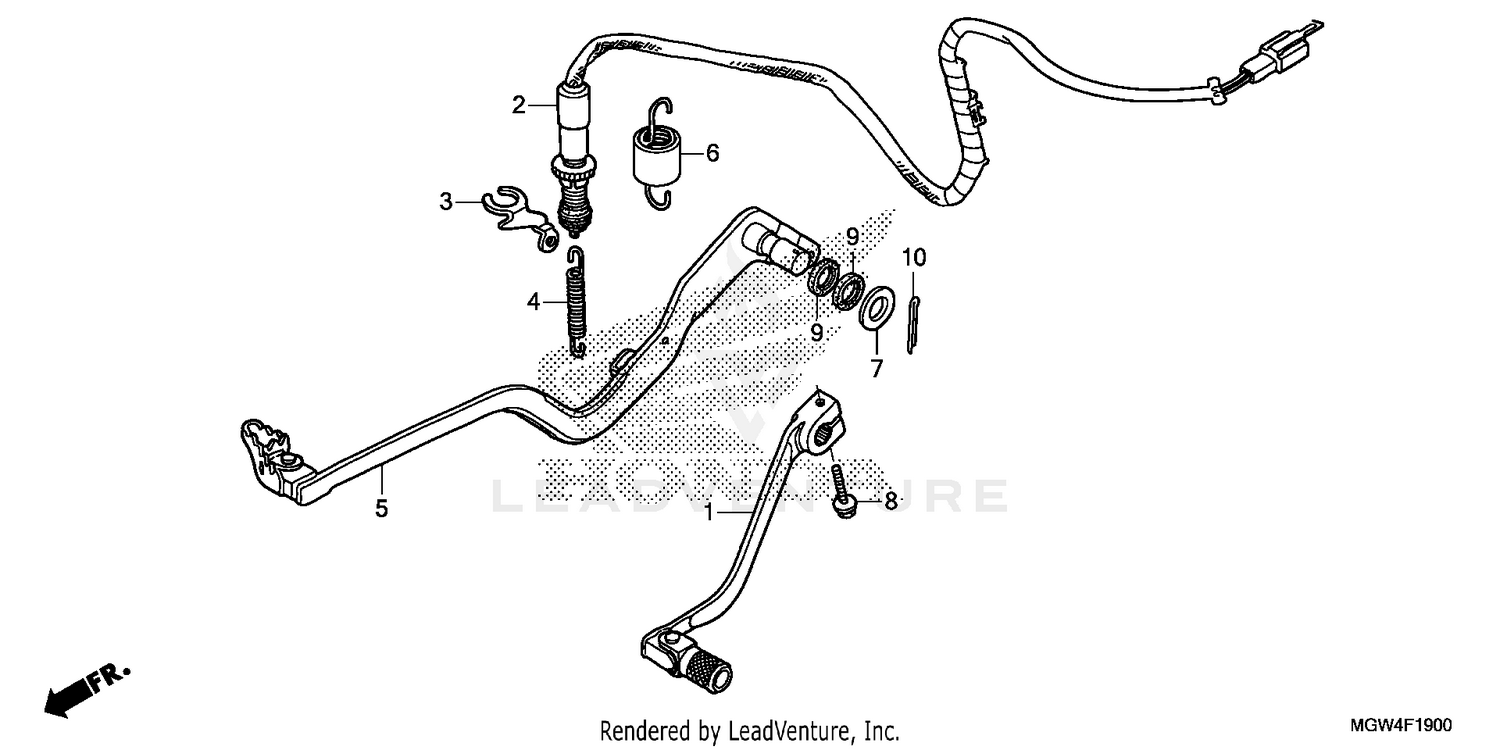

PEDAL
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 24700-MGW-305 | PEDAL, CHANGE (COO) Price: $129.15 |
| 2 | 35350-MY6-671 | SWITCH ASSY., RR. STOP Price: $15.18 |
| 3 | 35356-MN9-000 | STAY, RR. STOP SWITCH Price: $12.98 |
| 4 | 35357-ME9-000 | SPRING, STOP SWITCH Price: $5.96 |
| 5 | 46500-MGW-305 | PEDAL ASSY., BRAKE (COO) Price: $143.20 |
| 6 | 46515-MN1-680 | SPRING ASSY., BRAKE PEDAL Price: $10.82 |
| 7 | 53312-657-000 | BUSH, WASHER Price: $8.42 |
| 8 | 90102-MN1-670 | BOLT, FLANGE (6X20) Price: $3.62 |
| 9 | 91251-MT4-003 | DUST SEAL (15X20X3) Price: $4.78 |
