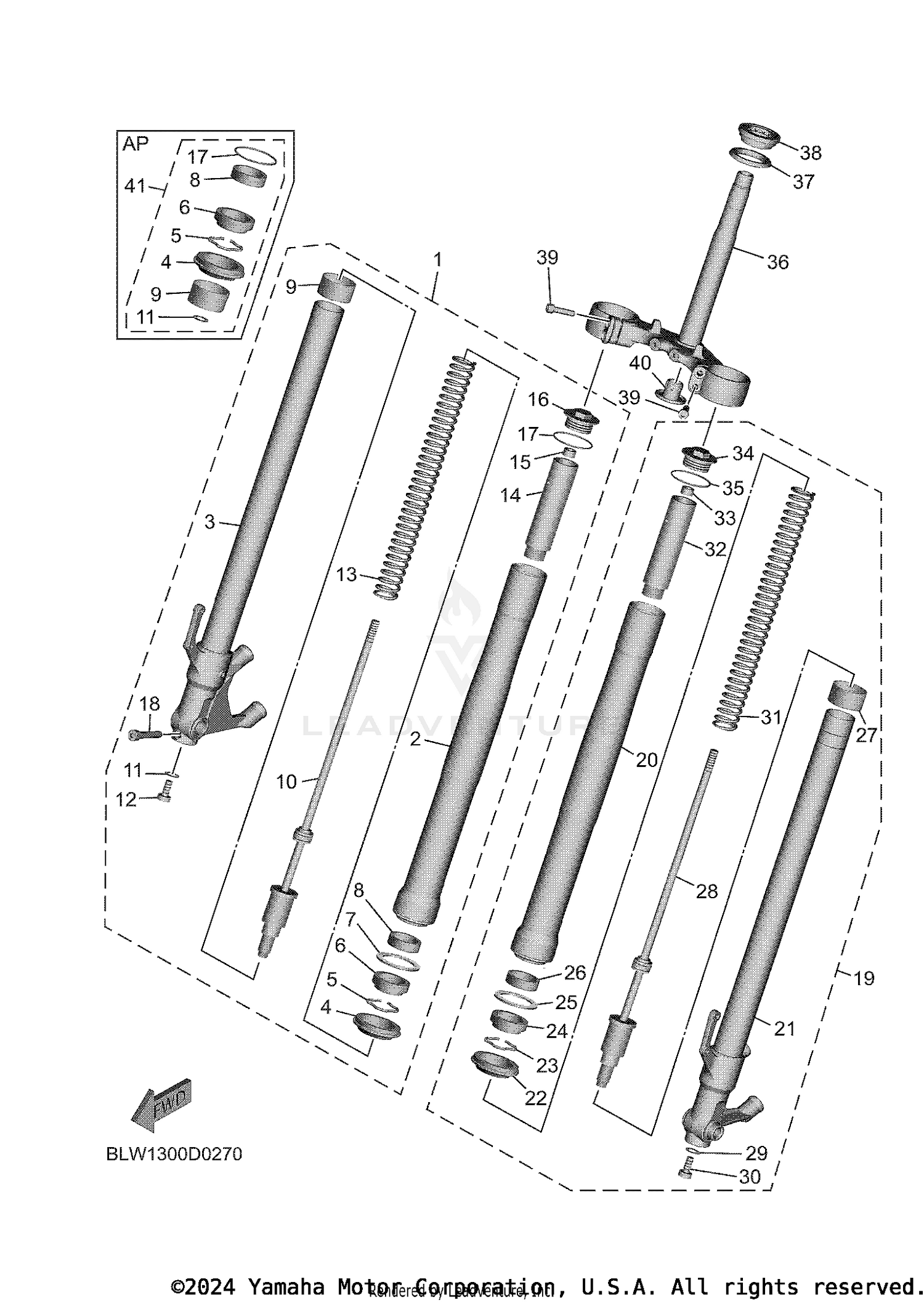

| Ref | Part Number | Description |
|---|
| 1 |
BLW-23103-01-00 |
FRONT FORK ASSY (R.H) This part replaces BLW-23103-00-00. Price: $544.99 |
| 2 |
BEB-23126-00-00 |
TUBE, OUTER (L.H) Price: $390.99 |
| 4 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 5 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 6 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 7 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 8 |
1RC-23125-00-00 |
METAL, SLIDE 1 Price: $16.49 |
| 9 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 10 |
BLW-23170-10-00 |
CYLINDER COMP., FR Price: $297.99 |
| 12 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 14 |
1RC-23118-00-00 |
SPACER Price: $15.49 |
| 15 |
3LC-23357-00-00 |
NUT Price: $7.49 |
| 16 |
BLW-23111-00-00 |
BOLT, CAP Price: $68.99 |
| 17 |
39P-23147-00-00 |
O-RING Price: $9.49 |
| 18 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 19 |
BLW-23102-01-00 |
FRONT FORK ASSY (L.H) This part replaces BLW-23102-00-00. Price: $574.99 |
| 20 |
BEB-23126-00-00 |
TUBE, OUTER (L.H) Price: $390.99 |
| 22 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 23 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 24 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 25 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 26 |
1RC-23125-00-00 |
METAL, SLIDE 1 Price: $16.49 |
| 27 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 28 |
BLW-23170-00-00 |
CYLINDER COMP., FR Price: $297.99 |
| 30 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 32 |
1RC-23118-00-00 |
SPACER Price: $15.49 |
| 33 |
3LC-23357-00-00 |
NUT Price: $7.49 |
| 34 |
BLW-23111-00-00 |
BOLT, CAP Price: $68.99 |
| 35 |
39P-23147-00-00 |
O-RING Price: $9.49 |
| 36 |
BLW-23340-00-00 |
UNDER BRACKET COMP Price: $410.99 |
| 37 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 38 |
93399-99932-00 |
BEARING Price: $69.99 |
| 39 |
91314-08030-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.55 |
| 40 |
4KM-23123-01-00 |
COVER, LOWER 1 Price: $15.49 |
