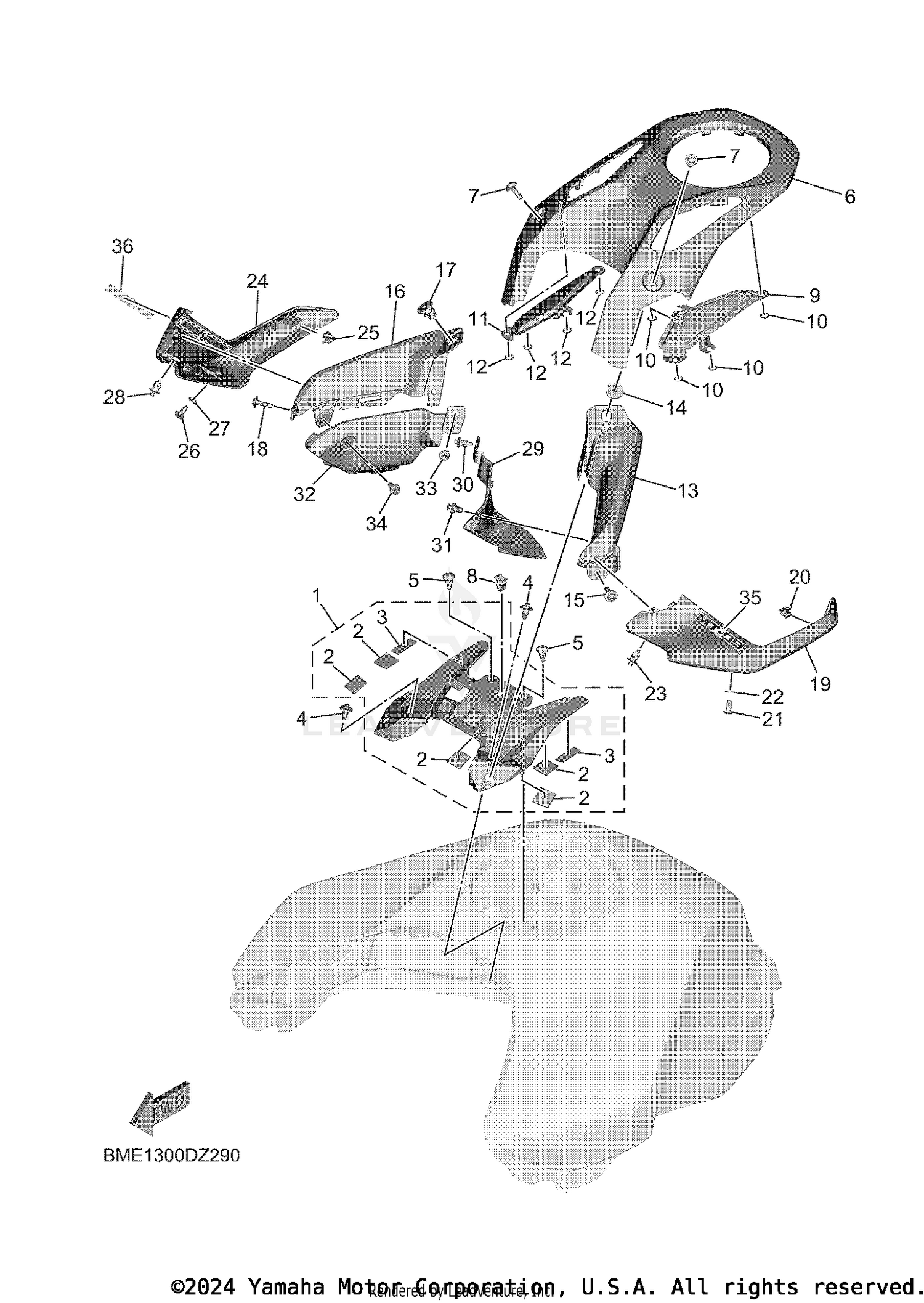

| Ref | Part Number | Description |
|---|
| 1 |
BME-24141-00-00 |
PROTECTOR, FUEL TANK Price: $47.99 |
| 2 |
90520-02009-00 |
DAMPER, PLATE Price: $1.55 |
| 3 |
90520-02014-00 |
DAMPER, PLATE Price: $1.60 |
| 4 |
90269-07071-00 |
RIVET Price: $3.85 |
| 5 |
90111-05020-00 |
BOLT, HEX. SOCKET BUTTON Price: $4.60 |
| 7 |
90111-05063-00 |
BOLT,HEX. SOCKET BUTTON Price: $3.85 |
| 8 |
90464-07018-00 |
CLAMP Price: $0.70 |
| 9 |
BME-2837V-00-00 |
GRILL, AIR OUTLET 1 Price: $60.99 |
| 10 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 11 |
BME-2837W-00-00 |
GRILL, AIR OUTLET 2 Price: $62.99 |
| 12 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 13 |
BME-2418B-00-00 |
MOLE, FUEL TANK 1 Price: $15.49 |
| 14 |
90179-05525-00 |
NUT Price: $9.49 |
| 15 |
90111-05063-00 |
BOLT,HEX. SOCKET BUTTON Price: $3.85 |
| 16 |
BME-2419B-00-00 |
MOLE, FUEL TANK 2 Price: $11.49 |
| 17 |
90179-05525-00 |
NUT Price: $9.49 |
| 18 |
90111-05063-00 |
BOLT,HEX. SOCKET BUTTON Price: $3.85 |
| 20 |
90468-040A0-00 |
CLIP Price: $9.49 |
| 21 |
90167-05079-00 |
SCREW, TAPPING Price: $4.50 |
| 22 |
90202-05088-00 |
WASHER, PLATE Price: $7.70 |
| 23 |
90269-06008-00 |
RIVET Price: $9.49 |
| 25 |
90468-040A0-00 |
CLIP Price: $9.49 |
| 26 |
90167-05079-00 |
SCREW, TAPPING Price: $4.50 |
| 27 |
90202-05088-00 |
WASHER, PLATE Price: $7.70 |
| 28 |
90269-06008-00 |
RIVET Price: $9.49 |
| 29 |
BME-2836K-00-00 |
PANEL, INNER 1 Price: $26.99 |
| 30 |
90269-06008-00 |
RIVET Price: $9.49 |
| 31 |
90269-06018-00 |
RIVET Price: $2.45 |
| 32 |
BME-2836L-00-00 |
PANEL, INNER 2 Price: $25.99 |
| 33 |
90269-06008-00 |
RIVET Price: $9.49 |
| 34 |
90269-06018-00 |
RIVET Price: $2.45 |
