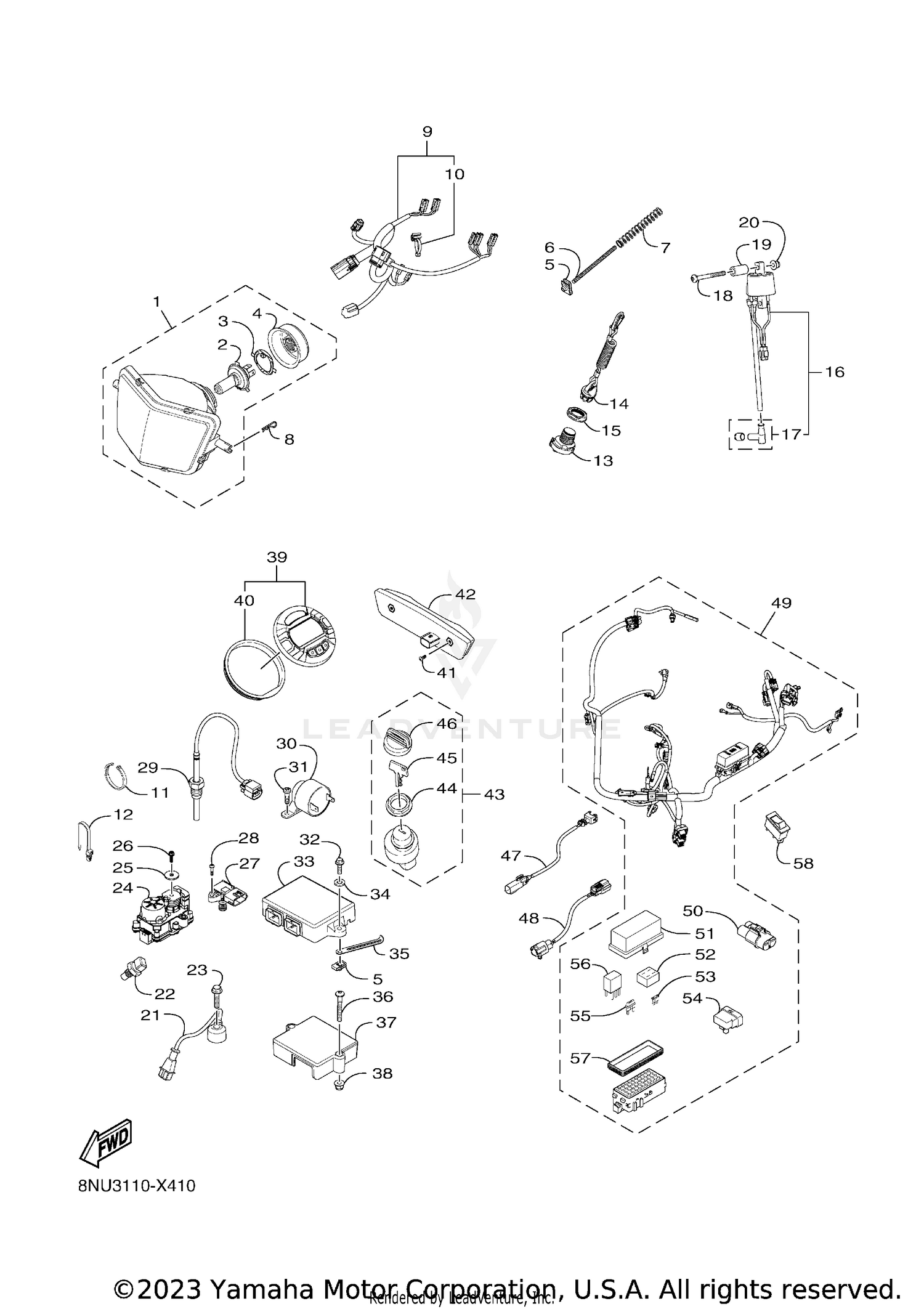

| Ref | Part Number | Description |
|---|
| 1 |
8ML-H4310-00-00 |
HEADLIGHT UNIT ASSY Price: $152.99 |
| 2 |
8JR-H4314-00-00 |
BULB, HEADLIGHT Price: $20.99 |
| 3 |
8JP-H4393-00-00 |
SPRING SUPPORT Price: $36.99 |
| 4 |
8ML-H4397-00-00 |
COVER, SOCKET Price: $5.99 |
| 5 |
8JP-RA354-00-00 |
NUT, CLIP M6 Price: $1.30 |
| 6 |
8MV-RA210-00-00 |
SCREW,10-24X2 Price: $5.49 |
| 7 |
8MV-RAD07-00-00 |
SPRING, COMPRESSION 3 Price: $6.99 |
| 8 |
8MV-H4374-00-00 |
CLIP Price: $1.05 |
| 9 |
8NT-H2105-00-00 |
WIRE HARNESS Price: $128.99 |
| 13 |
8ND-H6286-00-00 |
STOP SWITCH Price: $93.99 |
| 14 |
8MS-H2552-00-00 |
CAP, SWITCH Price: $51.99 |
| 15 |
8MS-H4395-00-00 |
RING, RETAINING Price: $2.40 |
| 16 |
8ND-H2310-00-00 |
IGNITION COIL ASSY Price: $172.99 |
| 17 |
8ND-H2370-00-00 |
PLUG CAP ASSY Price: $44.99 |
| 18 |
8NT-RA265-00-00 |
SCREW Price: $12.49 |
| 19 |
8JP-RA720-00-00 |
COLLAR, 8 Price: $3.05 |
| 20 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 21 |
8ND-H5780-00-00 |
SENSOR, KNOCK Price: $111.99 |
| 22 |
8JP-H5790-00-00 |
THERMOSENSOR ASSY Price: $27.99 |
| 23 |
8ND-RA100-00-00 |
BOLT, FLANGE Price: $3.75 |
| 24 |
8NV-H5820-00-00 |
SERVO MOTOR ASSY Price: $526.99 |
| 25 |
8JP-RA450-00-00 |
WASHER, 6.87X25.4X2.32 Price: $0.95 |
| 26 |
8NW-RA191-00-00 |
BOLT, FLANGE Price: $2.35 |
| 27 |
8ND-H2380-00-00 |
SENSOR, PRESSURE Price: $290.99 |
| 28 |
8ND-RA201-00-00 |
SCREW, TAPPING Price: $3.60 |
| 29 |
8ND-E4277-00-00 |
SENSOR, HEAT Price: $316.99 |
| 30 |
8ND-H2564-00-00 |
ALARM UNIT Price: $106.99 |
| 31 |
8JP-RA2A2-00-00 |
SCREW, 13 Price: $0.65 |
| 32 |
8JP-RA182-00-00 |
BOLT, FLANGE M6X1.0X25 Price: $0.70 |
| 33 |
8NU-H591A-00-00 |
ENGINE CONTROL UNI Price: $1,481.99 |
| 34 |
8ML-RA402-00-00 |
WASHER, SPRING 5/16 Price: $1.00 |
| 35 |
8JP-RAB22-00-00 |
CLAMP, 20 Price: $10.49 |
| 36 |
8ND-RA264-00-00 |
SCREW Price: $2.20 |
| 37 |
8ND-H1960-00-00 |
RECTIFIER & REGULA Price: $321.99 |
| 38 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 39 |
8NT-H3501-10-00 |
SPEEDOMETER ASSY Price: $497.99 |
| 40 |
8NT-H361M-00-00 |
GROMMET, PANEL MET Price: $18.49 |
| 41 |
8JP-RA250-00-00 |
SCREW, M5X1.0X10 Price: $1.10 |
| 42 |
8JP-H4500-00-00 |
TAILLIGHT ASSY Price: $73.99 |
| 43 |
8NT-H2510-00-00 |
MAIN SWITCH ASSY Price: $124.99 |
| 44 |
8JP-H2569-00-00 |
NUT, MAIN SWITCH Price: $2.35 |
| 46 |
8JP-H2577-01-00 |
CAP, KEY Price: $21.99 |
| 47 |
8NT-H258A-00-00 |
EXTENSION, WIRE HA Price: $60.99 |
| 48 |
8LN-H2586-00-00 |
EXTENSION, WIRE HARNESS Price: $48.99 |
| 49 |
8NT-H2590-00-00 |
WIRE HARNESS ASSY Price: $647.99 |
| 50 |
8ND-H2371-00-00 |
CAP, PLUG Price: $15.49 |
| 51 |
8JP-H2172-00-00 |
COVER, FUSE BOX Price: $10.49 |
| 52 |
8JP-H2152-00-00 |
HOLDER, FUSE Price: $2.10 |
| 53 |
8JP-H2151-00-00 |
FUSE (15A) Price: $4.50 |
| 53 |
8JP-H2151-10-00 |
FUSE (20A) Price: $3.90 |
| 53 |
8JP-H2151-30-00 |
FUSE (30A) Price: $4.15 |
| 53 |
8ND-H2151-00-00 |
FUSE Price: $3.90 |
| 54 |
8JP-H1662-10-00 |
COVER, CONNECTER Price: $21.99 |
| 55 |
8ND-H1974-00-00 |
DIODE Price: $20.99 |
| 56 |
8MS-H2185-00-00 |
RELAY 1 Price: $49.99 |
| 57 |
8JP-H1365-00-00 |
GASKET, HOLE COVER Price: $3.75 |
