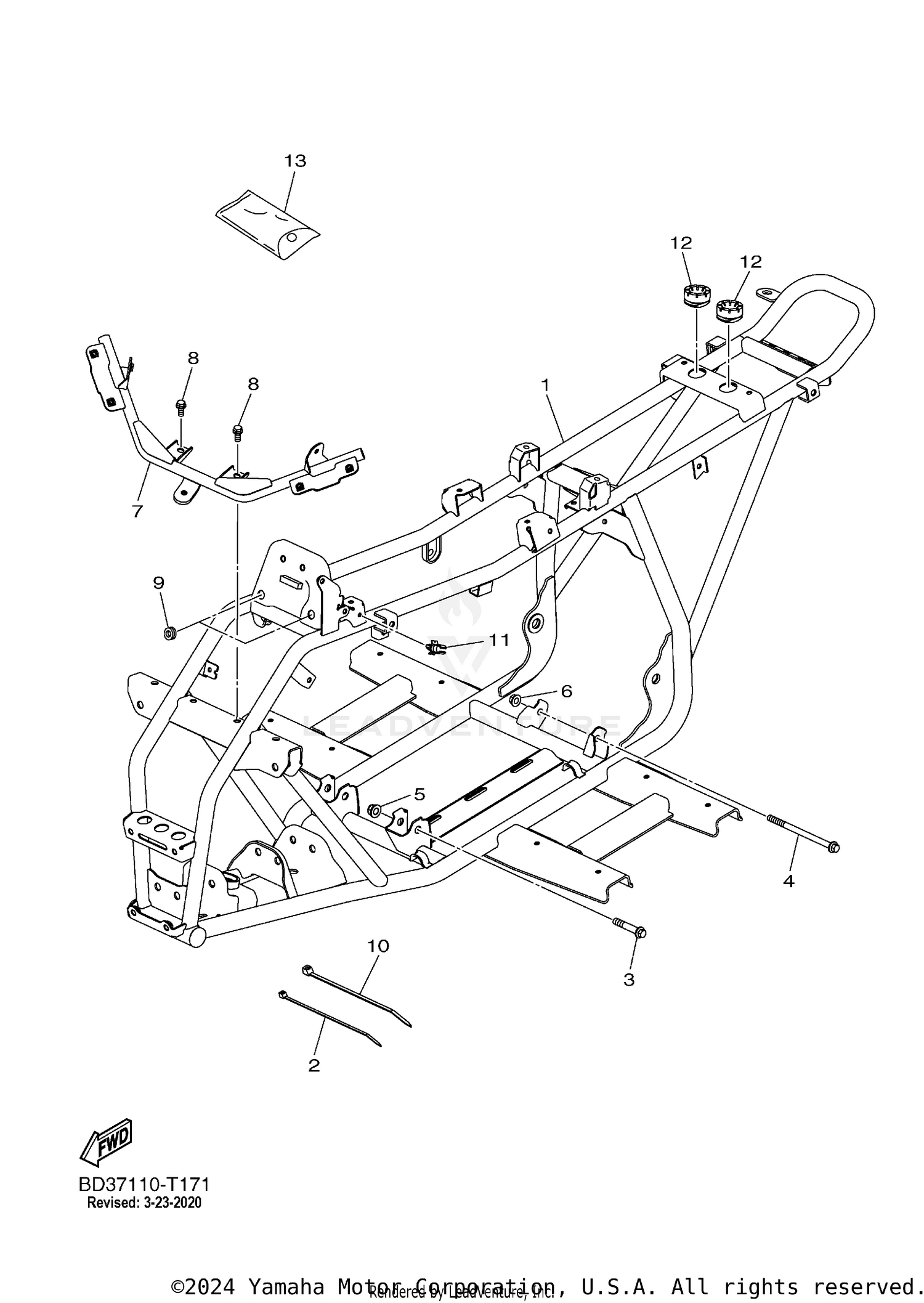

FRAME
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BD3-F1110-10-00 | FRAME COMP. Price: $1,276.99 |
| 2 | BD3-F1646-00-00 | BAND Price: $1.85 |
| 3 | BD3-F6332-10-00 | BOLT Price: $6.49 |
| 4 | BD3-F4178-10-00 | BOLT 3 Price: $11.49 |
| 5 | BD3-F1839-10-00 | NUT Price: $6.49 |
| 6 | BD3-F3778-10-00 | NUT Price: $5.49 |
| 7 | BD3-F1513-00-00 | STAY, FENDER 1 Price: $188.99 |
| 8 | BD3-F4176-10-00 | BOLT 1 Price: $10.49 |
| 9 | BD3-F1719-00-00 | GROMMET Price: $2.40 |
| 10 | BD3-F1647-00-00 | BAND Price: $2.15 |
| 11 | BD3-F15A3-00-00 | CLAMP Price: $4.25 |
| 12 | BD3-F113B-00-00 | DAMPER Price: $9.49 |
