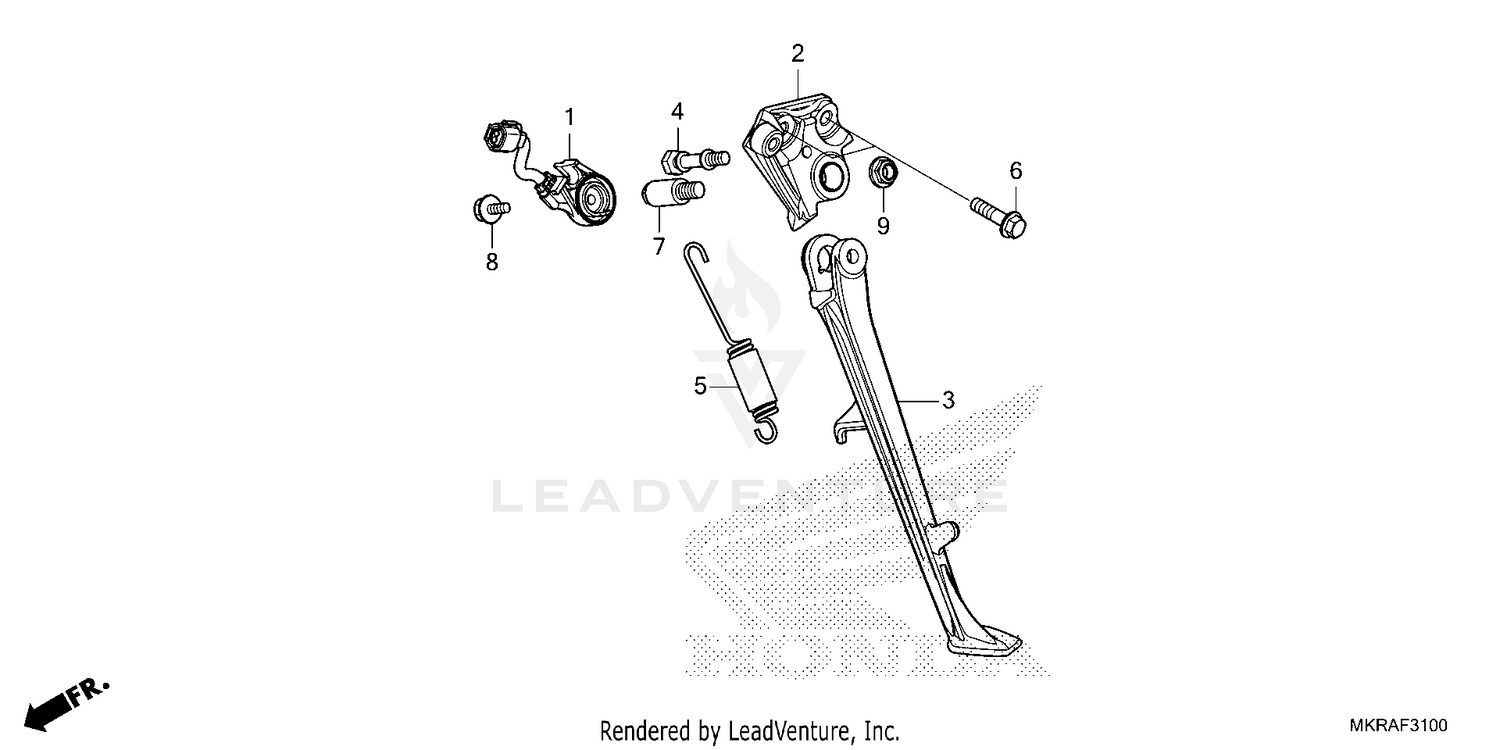

STAND
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35700-MKR-D11 | SWITCH ASSY., SIDE STAND Price: $73.18 |
| 2 | 50150-MKR-D10 | BRACKET, SIDE STAND Price: $132.09 |
| 3 | 50530-MKR-D10 | BAR, SIDE STAND Price: $111.15 |
| 4 | 50538-MFL-000 | HOOK, SIDE STAND SPRING Price: $12.13 |
| 5 | 50542-KPM-000 | SPRING ASSY., SIDE STAND Price: $10.60 |
| 6 | 90109-MAH-000 | BOLT, FLANGE (8X32) Price: $10.80 |
| 7 | 90118-MFL-000 | BOLT, SIDE STAND PIVOT Price: $12.44 |
| 8 | 90147-MCE-950 | BOLT, SPECIAL (6X16) Price: $0.64 |
