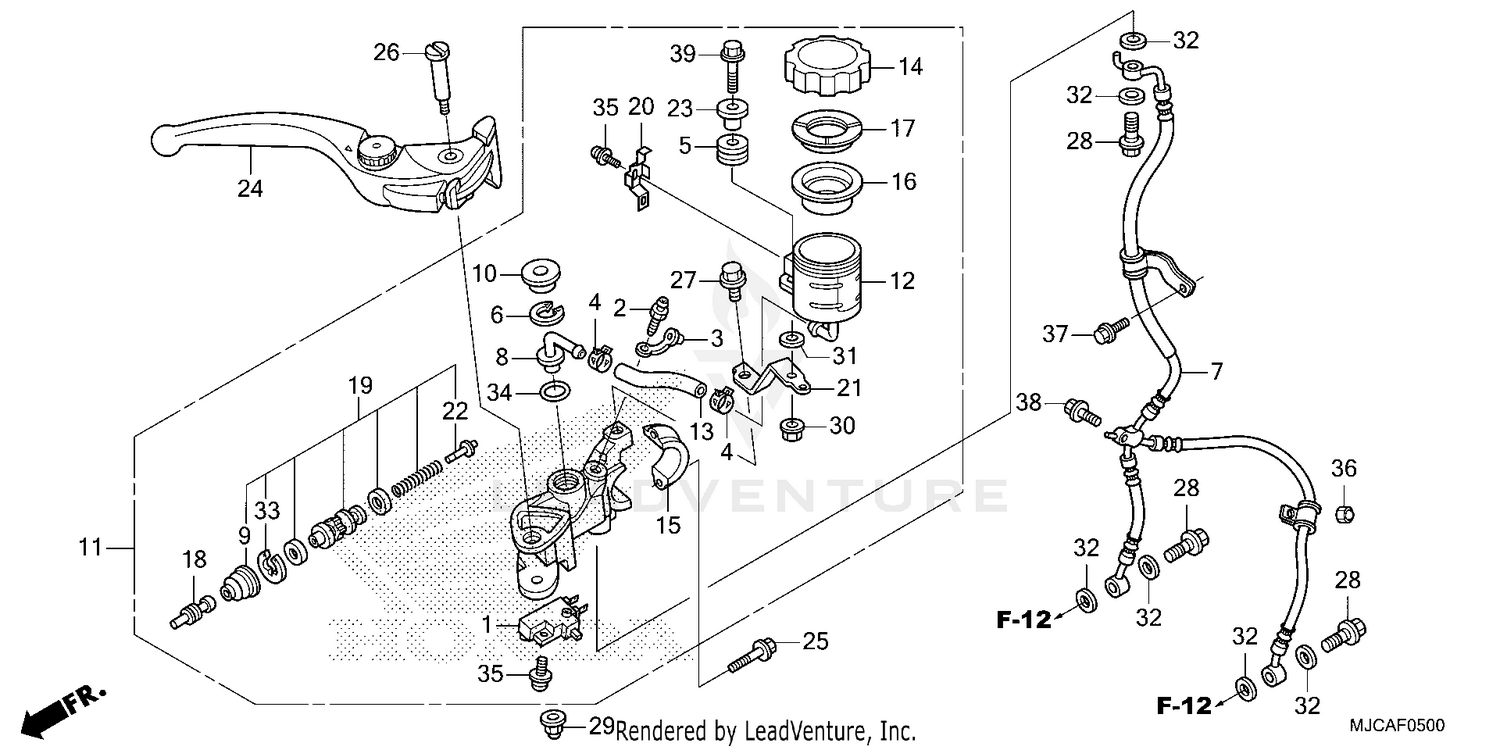

| Ref | Part Number | Description |
|---|
| 1 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 2 |
43352-568-003 |
SCREW, BLEEDER (NISSIN) Price: $9.98 |
| 3 |
43353-461-771 |
CAP, BLEEDER Price: $6.35 |
| 4 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 5 |
43516-MCJ-006 |
RUBBER, OIL CUP Price: $5.31 |
| 6 |
43517-KS6-701 |
CIRCLIP, RR. MASTER CYLINDER (FOR FR.) Price: $4.80 |
| 7 |
45125-MJC-N31 |
HOSE, FR. BRAKE Price: $163.20 |
| 8 |
45503-KV3-006 |
CONNECTOR, MASTER CYLINDER (NISSIN) Price: $11.38 |
| 9 |
45504-MCF-006 |
BOOT Price: $13.56 |
| 10 |
45505-KV3-006 |
COVER, DUST (NISSIN) Price: $5.22 |
| 11 |
45510-MJC-A01 |
MASTER CYLINDER SUB-ASSY., FR. BRAKE Price: $364.16 |
| 12 |
45511-MEL-D21 |
CUP, OIL Price: $11.91 |
| 13 |
45512-KV3-951 |
HOSE, MASTER CYLINDER OIL Price: $6.55 |
| 14 |
45513-MEL-D21 |
CAP, OIL CUP Price: $22.33 |
| 15 |
45517-MFL-006 |
HOLDER, MASTER CYLINDER Price: $14.38 |
| 16 |
45520-300-000 |
DIAPHRAGM Price: $10.98 |
| 17 |
45521-MJ6-006 |
PLATE, DIAPHRAGM Price: $5.09 |
| 18 |
45525-MEL-016 |
ROD, PUSH Price: $17.80 |
| 19 |
45530-MFJ-D01 |
MASTER CYLINDER SET Price: $58.49 |
| 20 |
45535-MR8-901 |
PLATE, STOP Price: $6.84 |
| 21 |
45550-MFJ-D01 |
STAY, FR. MASTER CYLINDER Price: $6.20 |
| 22 |
46140-MFJ-D01 |
GUIDE, SPRING Price: $9.15 |
| 23 |
50324-425-010 |
COLLAR (6.3X13) Price: $6.35 |
| 24 |
53170-MEL-006 |
LEVER ASSY., R. HANDLE Price: $63.67 |
| 25 |
90101-MBZ-G00 |
BOLT, FLANGE (6X22) Price: $1.64 |
| 26 |
90114-MCF-006 |
BOLT, HANDLE LEVER Price: $7.31 |
| 27 |
90117-MR7-000 |
BOLT, FLANGE (6X12) Price: $3.40 |
| 28 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 29 |
90201-415-000 |
NUT, CAP (6MM) Price: $2.45 |
| 30 |
90301-MG3-000 |
NUT, U (6MM) Price: $8.69 |
| 31 |
90473-147-000 |
WASHER (6X16) Price: $1.74 |
| 32 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 33 |
90651-MCF-006 |
CIRCLIP Price: $2.58 |
| 34 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 35 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 36 |
94021-06070-0S |
NUT, CAP (6MM) Price: $1.70 |
| 37 |
96001-06012-07 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $1.88 |
| 38 |
96001-06018-07 |
BOLT, FLANGE (6X18) Price: $1.44 |
