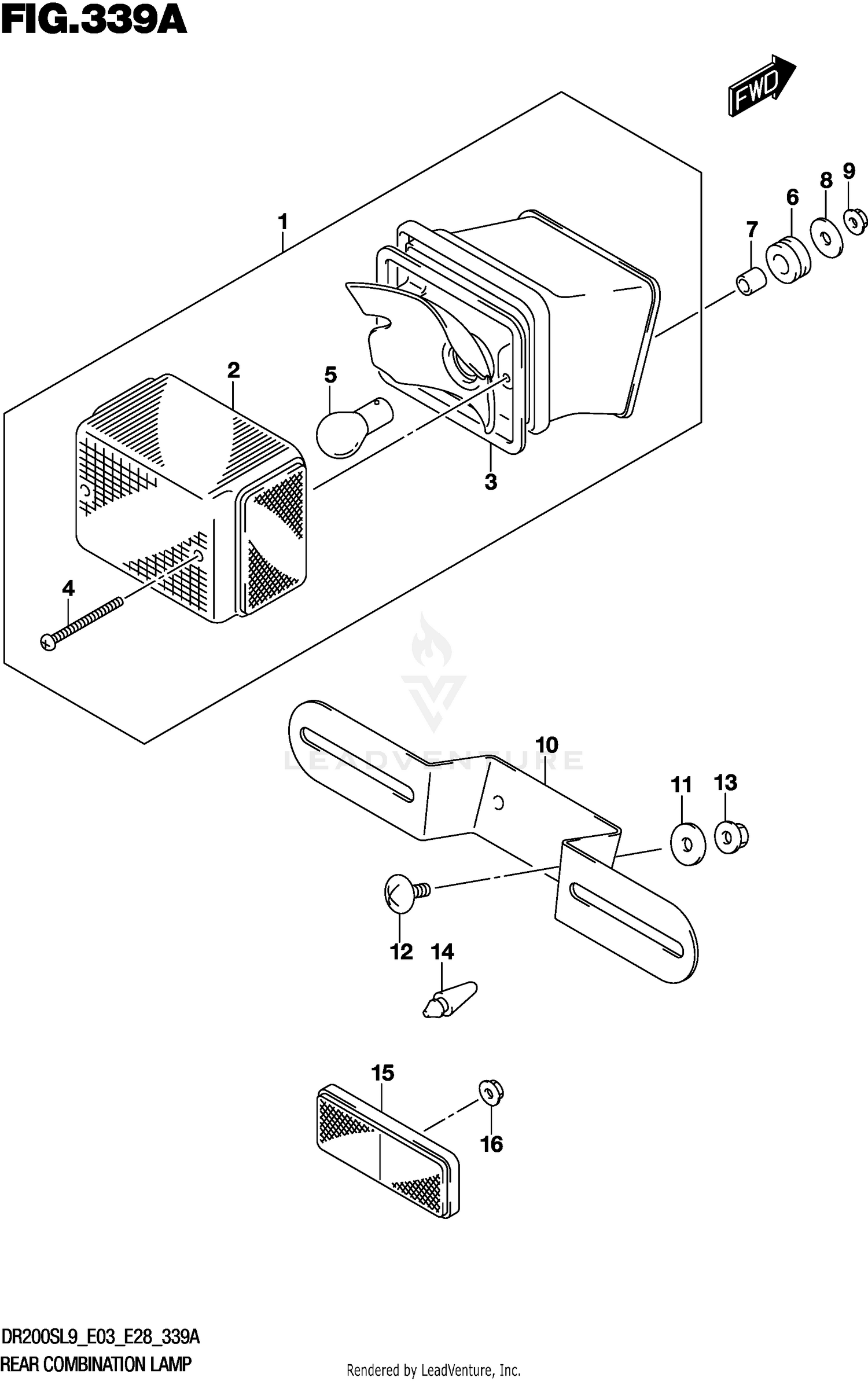

REAR COMBINATION LAMP
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-29F30 | LAMP ASSY,REAR COMB Price: $143.06 |
| 5 | 09471-12128 | BULB (12V,21/5W) This part replaces 09471-12083. Price: $8.20 |
| 6 | 09320-10501 | CUSHION Price: $6.55 |
| 7 | 09180-06310 | SPACER (6.5X10X10) Price: $2.33 |
| 8 | 09160-06109 | WASHER (6.5X18X1.6) Price: $1.39 |
| 9 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 10 | 35927-49J00 | BRACKET, LICENSE PLATE Price: $15.00 |
| 11 | 09160-06129 | WASHER (6.5X16X1) Price: $2.43 |
| 12 | 02142-0616A | SCREW Price: $1.65 |
| 13 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 14 | 09321-06030 | CUSHION Price: $4.14 |
| 15 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
