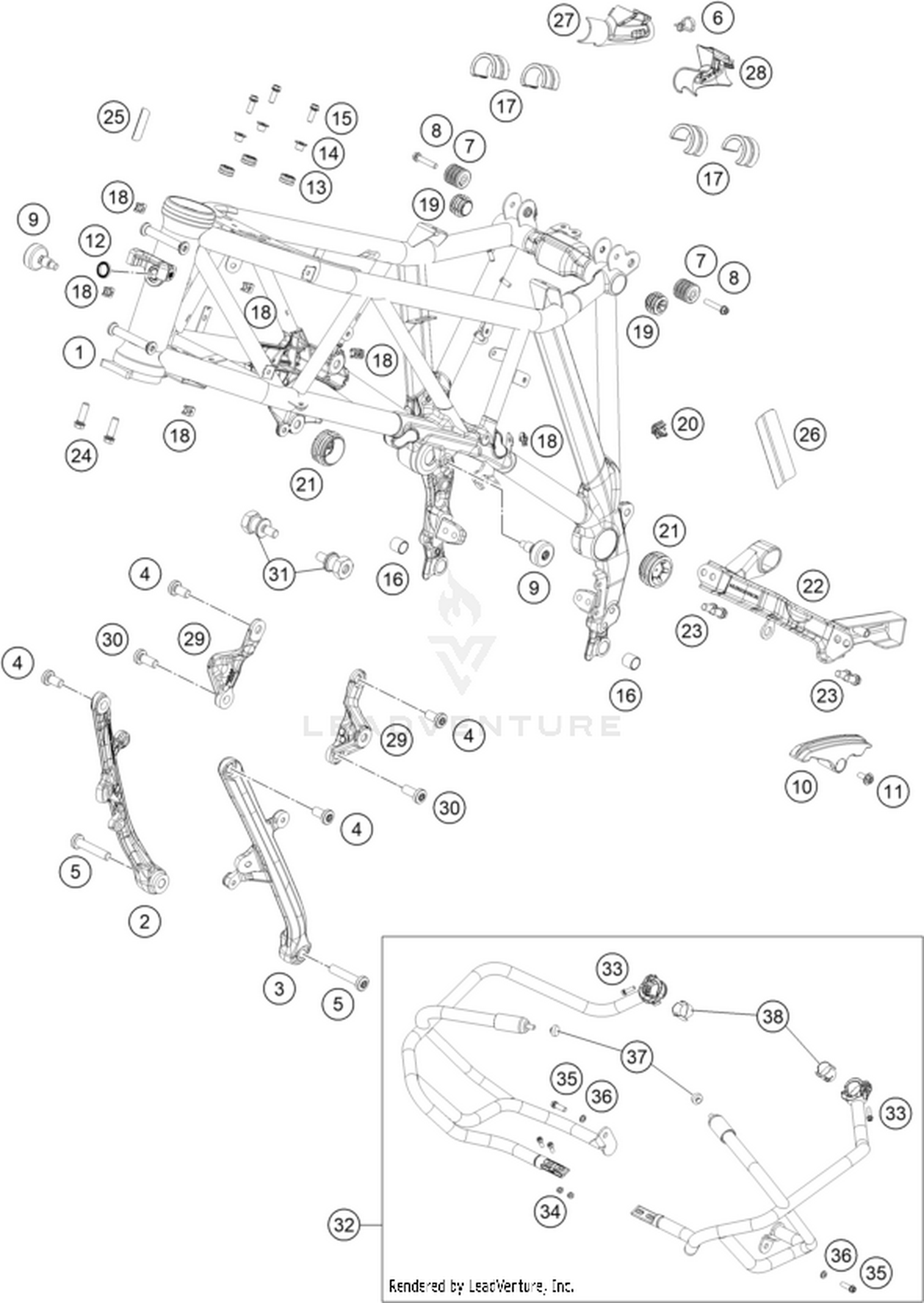

03 FRAME
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A62603001000EB | Frame A626 Price: Call Us |
| 2 | A6260300500001 | Engine brace front right Price: Call Us |
| 3 | A6260300600001 | Engine brace front left Price: Call Us |
| 4 | 0035100209S | Hex.screw M10x20 ISA45 MK Price: Call Us |
| 5 | 0035100509S | AH collar screw M10x50 ISA45 Price: Call Us |
| 6 | 44011076305 | CABLE TIE 300/4,8MM BLACK Price: Call Us |
| 7 | 61907048100 | Rubber seat cowl pad Price: Call Us |
| 8 | 0025060306S | HH collar screw M6x30 TX30 Price: Call Us |
| 9 | 62507026100 | SPECIAL SCREW M8 06 Price: Call Us |
| 10 | A62603070000 | Chain slider Price: Call Us |
| 11 | 0024060156S | HH collar screw M6x15 TX30 Price: Call Us |
| 12 | 61911066010 | Ignition lock gasket Price: Call Us |
| 13 | 62142041000 | DAMP. COMPONENT ABS MODUL Price: Call Us |
| 14 | 00185006009U0 | Collar bushing 6.1x9.2x15x8.5x Price: Call Us |
| 15 | 0024060156S | HH collar screw M6x15 TX30 Price: Call Us |
| 16 | 61903916050 | Plain bearing Price: Call Us |
| 17 | 61007014000 | SPACER FUEL TANK 05 Price: Call Us |
| 19 | 61903088000 | Plug D=23.5 Price: Call Us |
| 20 | 000700000HO001 | Socket connector clip Price: Call Us |
| 21 | 61703088000 | Plug, large Price: Call Us |
| 22 | A62603001036C1 | Lower cross tube com Price: Call Us |
| 23 | 0025080166S | HH collar screw M8x16 TX40 SL Price: Call Us |
| 24 | 0025080256S | HH COLLAR SCREW M8X25 TX40 Price: Call Us |
| 25 | A62603093100 | Frame protection sticker Price: Call Us |
| 26 | A62603093000 | Frame protection sticker Price: Call Us |
| 27 | A62603083000 | Frame cover bracket right Price: Call Us |
| 28 | A62603084000 | Frame cover bracket left Price: Call Us |
| 29 | A6260300800001 | Engine brace rear left Price: Call Us |
| 30 | 0035100249S | HH collar screw M10x24 ISA45 S Price: Call Us |
| 31 | 0900001002000S | Spacer screw M10x20 SW24 Price: Call Us |
| 32 | A62612168044EB | Crash bar kit This part replaces A62612068044EB. Price: Call Us |
| 33 | 0025060206 | HH collar screw M6x20 TX30 Price: Call Us |
| 34 | 0985060003 | Self lock. nut DIN985-M6-A2 Price: Call Us |
| 35 | 0025080256 | HH collar screw M8x25 Price: Call Us |
| 36 | 60303022035 | NORDLOCK WASHERS M8 Price: Call Us |
| 37 | 54308042000 | RUBBER BUFFER Price: Call Us |
