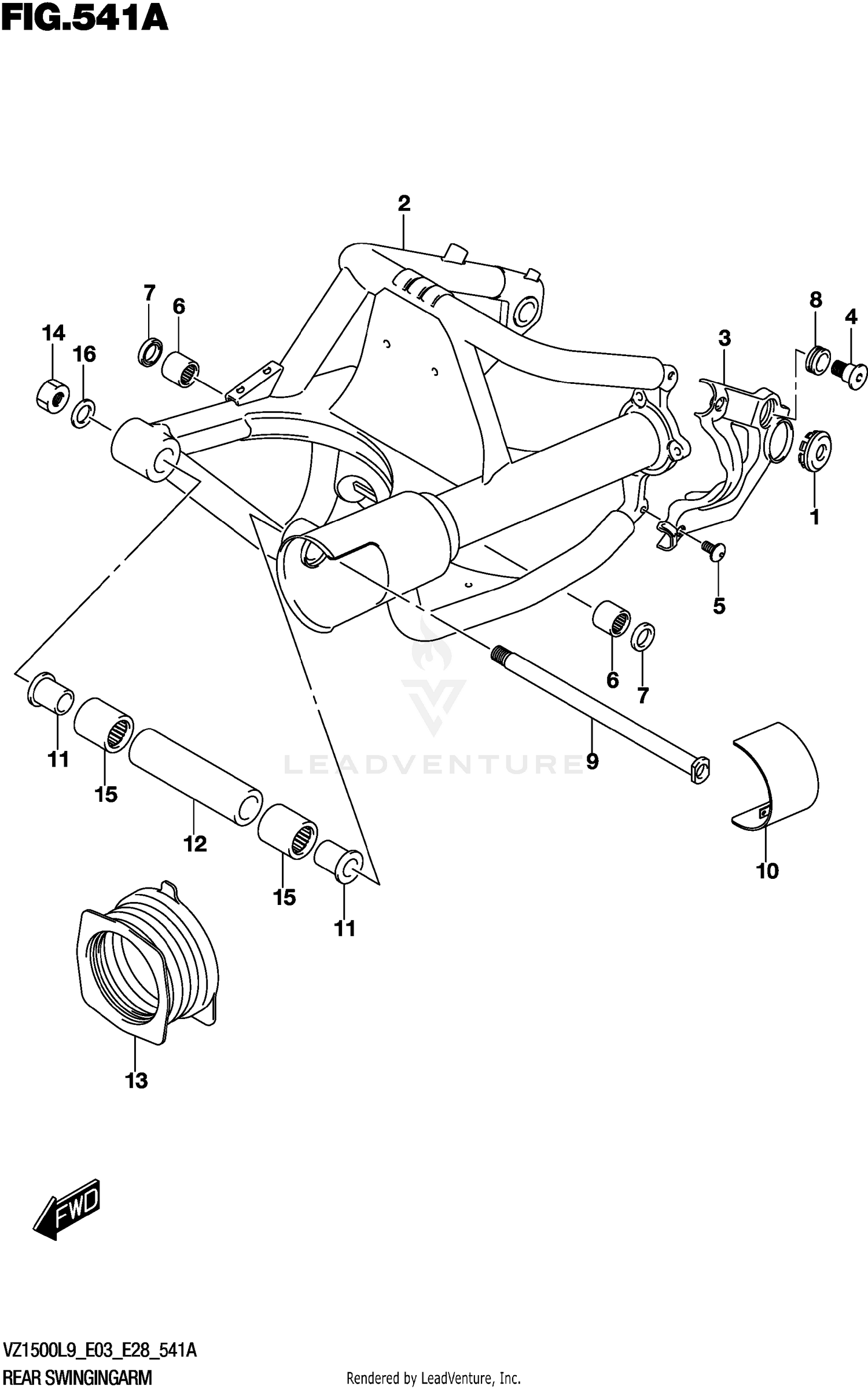

REAR SWINGINGARM
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 41899-42F10 | CAP,FRAME PIVOT Price: $20.38 |
| 2 | 61100-06J00-019 | SWINGINGARM Price: $1,483.76 |
| 3 | 61126-40H00-019 | COVER Price: $269.72 |
| 4 | 61127-41F20 | BOLT,COVER REAR Price: $25.87 |
| 5 | 09139-08007 | SCREW (8X16) Price: $4.56 |
| 6 | 09263-22071 | BEARING (22X29X25) Price: $27.00 |
| 7 | 09285-22006 | SEAL,OIL (21X29X4) This part replaces 09285-22001. Price: $4.67 |
| 8 | 09320-22004 | CUSHION This part replaces 09320-22003. Price: $3.93 |
| 9 | 61211-22D00 | SHAFT Price: $83.33 |
| 10 | 61230-40H00 | COVER Price: $31.40 |
| 11 | 61251-31E00 | SPACER,PIVOT BEARING Price: $64.00 |
| 12 | 61280-48G01 | SPACER,RR SWGARM PVT CTR Price: $46.48 |
| 13 | 61372-40H10 | BOOT Price: $20.61 |
| 14 | 09159-18007 | NUT Price: $20.68 |
| 15 | 09263-25073 | BEARING (25X33X35) This part replaces 09263-25059. Price: $37.67 |
