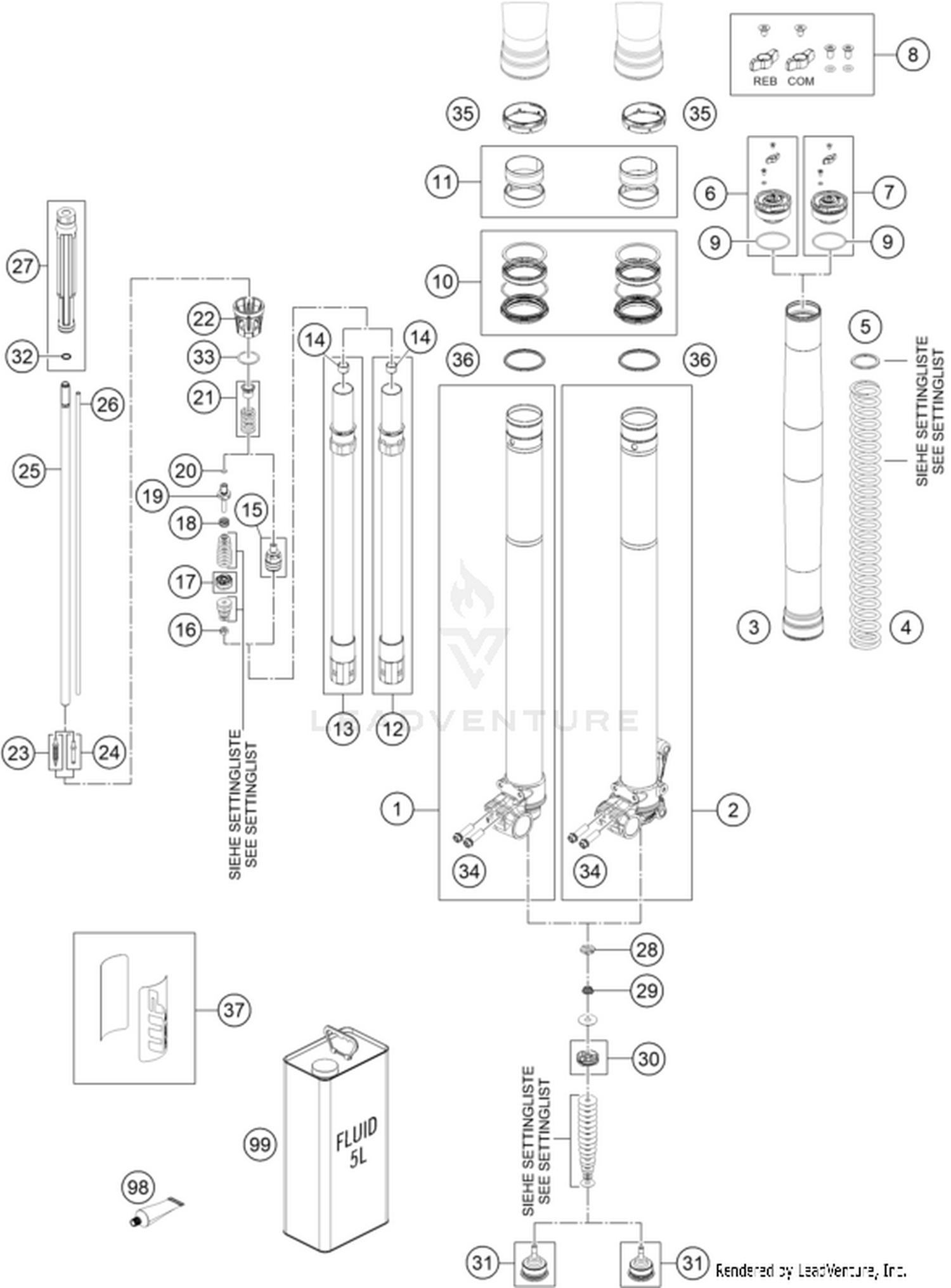

| Ref | Part Number | Description |
|---|
| 1 |
48601713S1 |
Axle Clamp R/S + Tube D48mm 35 Price: Call Us |
| 2 |
48601712S1 |
Axle Clamp L/S + Tube D48mm 35 Price: Call Us |
| 3 |
S53480002100000 |
Fork outer tube 49.13x577 dt54 Price: Call Us |
| 4 |
S80990005400000 |
NEEDS DESCRIPTION Price: Call Us |
| 5 |
48600456 |
Washer 35x43x2,5 plastic Price: Call Us |
| 5 |
48600457 |
Preload bush 35x43x3,5 Price: Call Us |
| 5 |
48600458 |
Washer 35x43x1,5 plastic Price: Call Us |
| 6 |
48601960S |
Screw cap M51x1,5 rebound cpl. Price: Call Us |
| 7 |
48601961S |
Screw cap M51x1,5 compression Price: Call Us |
| 8 |
RP10021T |
Adjuster Kit screw cap Price: Call Us |
| 9 |
48600048 |
O-ring 46x2 NBR70 siliconized Price: Call Us |
| 10 |
RP10048T |
Seal kit 48mm SKF black Price: Call Us |
| 11 |
R14047T |
Guide bushing set fork 48mm Price: Call Us |
| 12 |
48600763S5 |
Tube, including screw sleeve w Price: Call Us |
| 14 |
48600430 |
Guide bushing 12x14x10 Price: Call Us |
| 15 |
48601843S |
Tap compression cpl. Price: Call Us |
| 16 |
40540486 |
Nut M6x0,5 h6,5 WAF10 rebound Price: Call Us |
| 17 |
48602002S |
Midvalve piston assembly d23 Price: Call Us |
| 18 |
48600382 |
Spring (11,4) 0,4-8 valve Price: Call Us |
| 19 |
48600576 |
Tap 6x46 rebound Price: Call Us |
| 20 |
48600299 |
O-ring 6x1,2 NBR70 Price: Call Us |
| 21 |
48600578S |
Spring (13,9) 37-32 rebound cp Price: Call Us |
| 22 |
48601298 |
Spring retainer 27,08x43x45 Price: Call Us |
| 23 |
48600277S |
Needle 4,5x43,6 cpl. Price: Call Us |
| 24 |
48601558S |
Needle 4,5x38,2 cpl. Price: Call Us |
| 25 |
48601956 |
Piston rod 12x518 Price: Call Us |
| 26 |
48601957 |
Adjuster Tube L488.5 Price: Call Us |
| 28 |
48600163 |
Nut valve M6x0,5 h6,5 WAF17 Price: Call Us |
| 29 |
48600202 |
Spring (8,5) l6,5 valve Price: Call Us |
| 30 |
48601934S |
Piston 6x27,3x9 compression cp Price: Call Us |
| 31 |
48601553S |
Screw cap M29,3x1 OC split cpl Price: Call Us |
| 32 |
04500003 |
O-ring 11x2,5 NBR70 PTFE yello Price: Call Us |
| 33 |
48601702 |
Shim 27,5x33x0,3 Price: Call Us |
| 34 |
0025080256 |
HH collar screw M8x25 Price: Call Us |
| 35 |
S639200001000FA |
Fork protection ring 59,8mm Price: Call Us |
| 36 |
48602007 |
Stroke indicator 48mm red Price: Call Us |
| 98 |
T14034 |
Fuchs grease IPR (250g) Price: Call Us |
