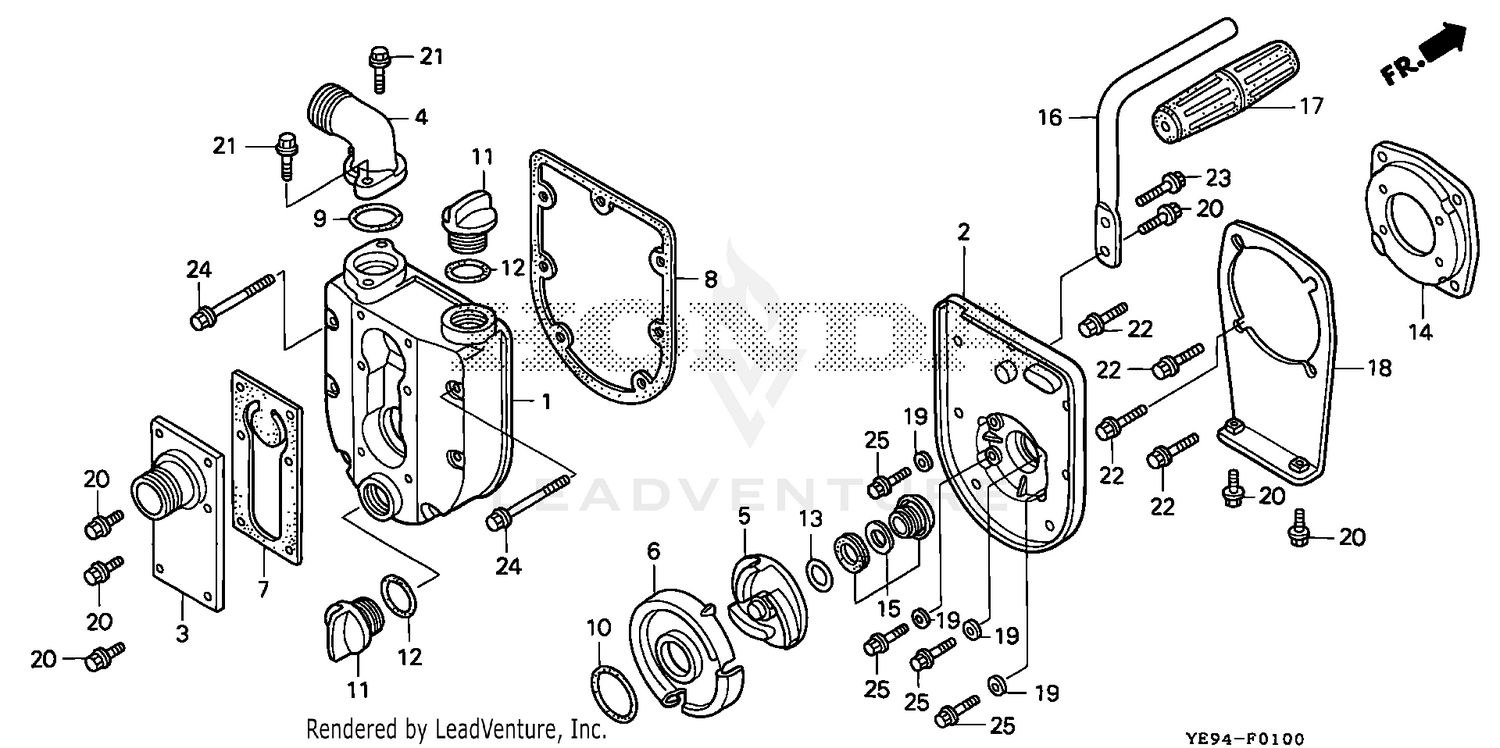

| Ref | Part Number | Description |
|---|
| 1 |
78101-YE9-505 |
SEE PART DETAILS - PRI; CASING Price: $102.52 |
| 2 |
78102-YE9-003 |
SEE PART DETAILS - SUP; PLATE, END Price: $41.96 |
| 3 |
78103-YE9-506 |
PLATE,SUCTION (NP Price: $32.90 |
| 4 |
78104-YE9-506 |
OUTLET(NPT) Price: $27.52 |
| 5 |
78106-YE9-505 |
SEE PART DETAILS - PRI; IMPELLER Price: $13.22 |
| 6 |
78107-YE9-505 |
SEE PART DETAILS - PRI; CASE, VOLUTE Price: $23.88 |
| 7 |
78110-YE9-505 |
PACKING,SUCTION Price: $9.24 |
| 8 |
78112-YE9-505 |
PACKING,END PLATE Price: $6.78 |
| 9 |
78114-YE9-505 |
O-RING,OUTLET Price: $4.60 |
| 10 |
78115-YE9-505 |
SEAL RING,A Price: $5.24 |
| 11 |
78117-YB7-020 |
SEE PART DETAILS - PRI; CAP, FILLER Price: $13.86 |
| 12 |
78118-YB0-004 |
SEE PART DETAILS - PRI; RING, SEAL (B) This part replaces 78118-YB0-003. Price: $9.64 |
| 13 |
78122-YH4-610 |
SEE PART DETAILS - PRI; SHIM, ADJUSTER This part replaces 78122-YE9-000. Price: $2.58 |
| 14 |
78125-YE9-003 |
CASE, SPACER Price: Call Us |
| 15 |
78130-YE9-505 |
SEAL ASSY,MECHANI Price: $40.38 |
| 16 |
78206-YE9-506 |
HANDLE This part replaces 78206-YE9-003. Price: $20.94 |
| 17 |
22542-900-000 |
GRIP, FR. CLUTCH LEVER Price: $6.98 |
| 18 |
78316-YE9-000 |
BRACKET, PUMP Price: $17.36 |
| 19 |
90441-028-010 |
WASHER, SEALING (6MM) Price: $4.04 |
| 20 |
95701-06014-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884). Price: $1.26 |
| 21 |
95701-06018-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X18) Price: $2.04 |
| 22 |
95701-06020-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815). Price: $2.22 |
| 23 |
95701-06025-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831). Price: $2.26 |
| 24 |
95701-06055-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X55) (Honda Code 2533834). Price: $2.72 |
