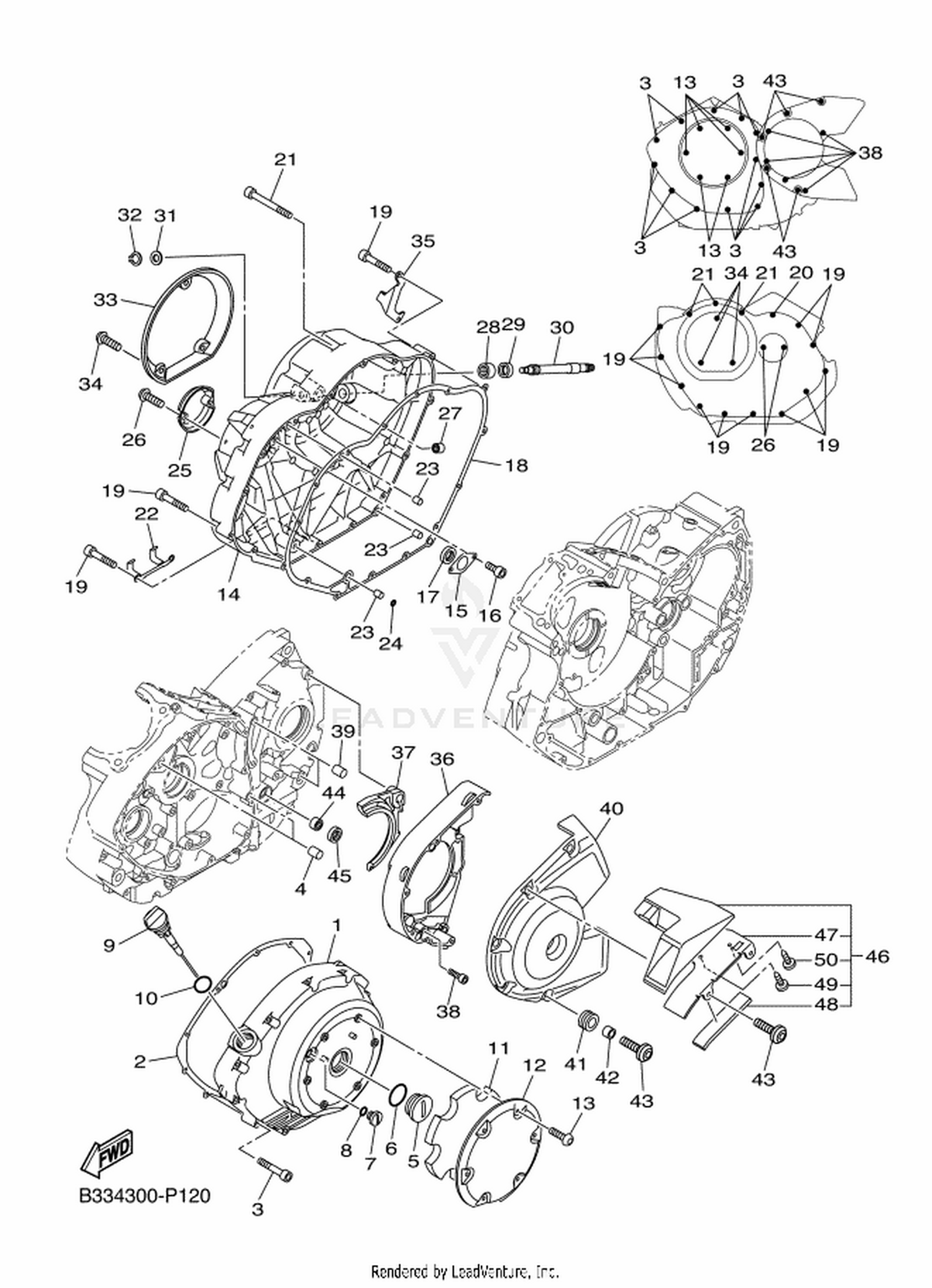

| Ref | Part Number | Description |
|---|
| 1 |
5S7-15411-00 |
COVER, CRANKCASE 1 Price: Call Us |
| 2 |
3D8-15451-00 |
GASKET, CRANKCASE COVER 1 Price: Call Us |
| 3 |
90110-06086 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 4 |
99530-08012 |
PIN, DOWEL Price: Call Us |
| 5 |
90340-36078 |
PLUG, STRAIGHT SCREW Price: Call Us |
| 6 |
93210-357A3 |
O-RING Price: Call Us |
| 7 |
90340-14117 |
PLUG, STRAIGHT SCREW Price: Call Us |
| 8 |
93210-14369 |
O-RING Price: Call Us |
| 9 |
5S7-15362-10 |
PLUG, OIL LEVEL Price: Call Us |
| 10 |
93210-27370 |
O-RING Price: Call Us |
| 11 |
5S7-1542A-00 |
DAMPER 1 Price: Call Us |
| 12 |
1TP-15492-00 |
COVER Price: Call Us |
| 13 |
92014-06014 |
BOLT, BUTTON HEAD Price: Call Us |
| 14 |
5S7-15421-01 |
COVER, CRANKCASE 2 Price: Call Us |
| 15 |
3D8-15388-00 |
PLATE, BEARING COVER Price: Call Us |
| 16 |
90110-06182 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 17 |
93101-14102 |
OIL SEAL Price: Call Us |
| 18 |
3D8-15461-00 |
GASKET, CRANKCASE COVER 2 Price: Call Us |
| 19 |
90110-06086 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 20 |
90110-06311 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 21 |
90110-06334 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 22 |
1TP-81845-00 |
PLATE Price: Call Us |
| 23 |
99530-08012 |
PIN, DOWEL Price: Call Us |
| 24 |
93210-07135 |
O-RING Price: Call Us |
| 25 |
1TP-15423-00 |
COVER 2 Price: Call Us |
| 26 |
92014-06014 |
BOLT, BUTTON HEAD Price: Call Us |
| 27 |
93317-11096 |
BEARING Price: Call Us |
| 28 |
93315-31502 |
BEARING Price: Call Us |
| 29 |
93102-15212 |
OIL SEAL Price: Call Us |
| 30 |
3D8-16382-00 |
AXLE, PUSH LEVER Price: Call Us |
| 31 |
92902-08600 |
WASHER, PLATE Price: Call Us |
| 32 |
99002-07600 |
CLIP Price: Call Us |
| 33 |
1TP-15415-01 |
COVER, 1 Price: Call Us |
| 34 |
92014-06014 |
BOLT, BUTTON HEAD Price: Call Us |
| 35 |
3D8-15441-00 |
HOLDER, CLUTCH CABLE Price: Call Us |
| 36 |
3D8-1541A-01 |
STAY, CRANKCASE COVER 1 Price: Call Us |
| 37 |
3D8-15337-02 |
DAMPER 4 Price: Call Us |
| 38 |
91312-08035 |
BOLT Price: Call Us |
| 39 |
99590-10114 |
PIN, DOWEL Price: Call Us |
| 40 |
1TP-15426-00 |
COVER, OIL PUMP 2 Price: Call Us |
| 41 |
90480-13018 |
GROMMET Price: Call Us |
| 42 |
90387-06286 |
COLLAR Price: Call Us |
| 43 |
90149-06302 |
SCREW Price: Call Us |
| 44 |
93317-11287 |
BEARING Price: Call Us |
| 45 |
93102-12106 |
OIL SEAL (SD 12-22-5 HS) Price: Call Us |
| 46 |
1TP-15470-00 |
AIR DUCT ASSY Price: Call Us |
