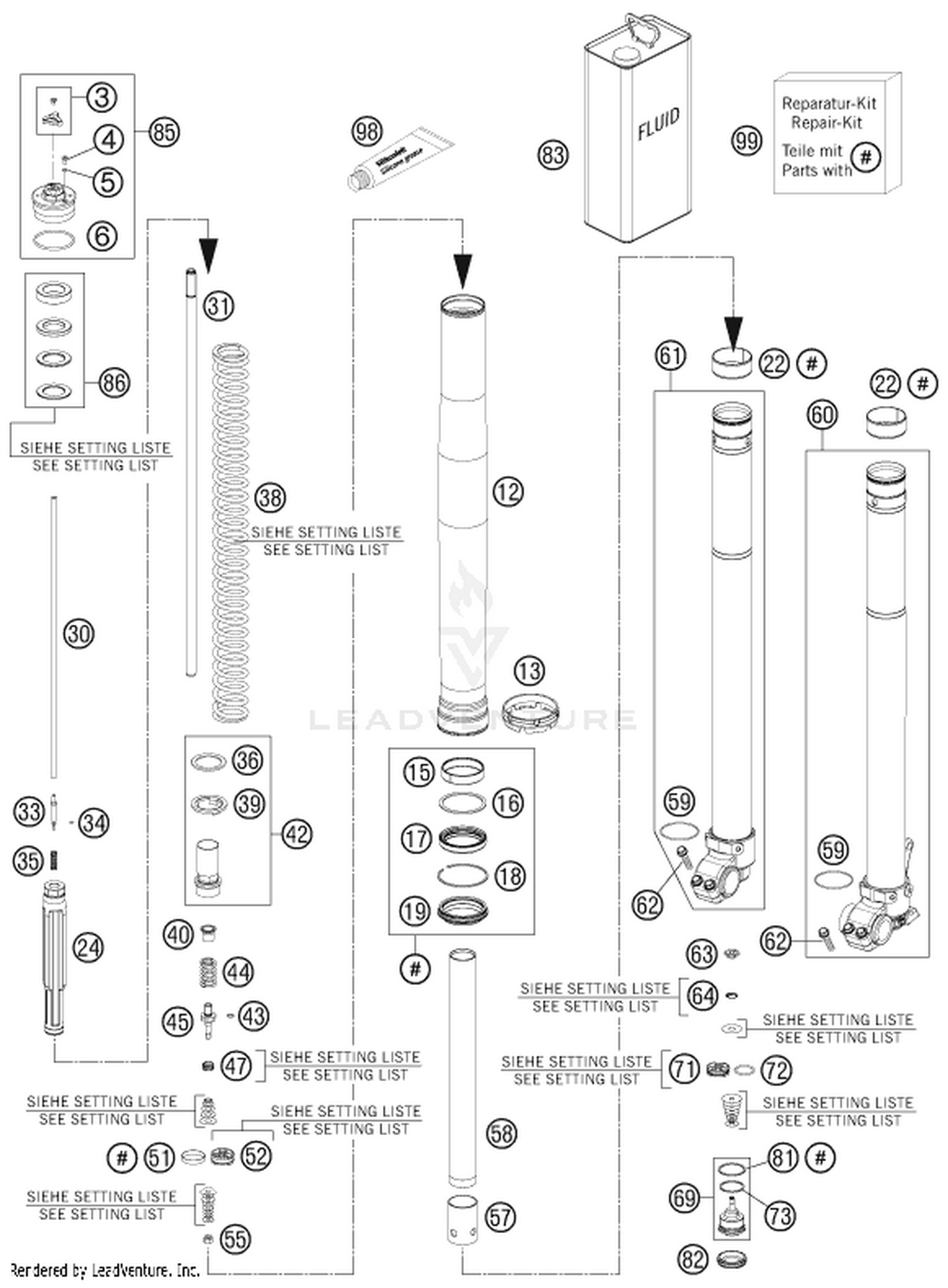

| Ref | Part Number | Description |
|---|
| 3 |
48600812ST |
ADJUSTING KNOB + SCREW This part replaces 48600812S. Price: Call Us |
| 4 |
48600481 |
Cross countersunk head screw M Price: Call Us |
| 5 |
48600046 |
O-ring 3x1,5 NBR70 Price: Call Us |
| 6 |
46810340 |
O-ring 45x2 NBR70 siliconized Price: Call Us |
| 12 |
48600736 |
Fork outer tube 49,13x577 dt54 Price: Call Us |
| 13 |
48600698 |
Fork protection ring 62,1mm Price: Call Us |
| 15 |
48601009 |
Guide bushing 48x52x12 Price: Call Us |
| 16 |
48600013 |
Supportwasher 50x57,6x1,5 Price: Call Us |
| 17 |
S604800001000C1 |
Shaft seal SKF 48x58x11,4 black This part replaces 48600969. Price: Call Us |
| 18 |
48600070 |
Snap ring SB58x1,5 acc drawing Price: Call Us |
| 19 |
S604800000000C1 |
Dirtscarper SKF 48mm black This part replaces 48600968. Price: Call Us |
| 22 |
48601008 |
Guide bushing 47x49x20 Price: Call Us |
| 24 |
48600557S |
Stop 12,4x31,9x200 cpl. Price: Call Us |
| 30 |
48600559 |
Adjustment tube 6x520 Price: Call Us |
| 31 |
48600568 |
Piston rod 12x554 Price: Call Us |
| 33 |
48600277 |
Needle 4,5x43,6 Price: Call Us |
| 34 |
48600298 |
O-ring 2x1,5 NBR70 Price: Call Us |
| 35 |
48600444 |
Spring (5,4) 4-23 rebound Price: Call Us |
| 36 |
48600113 |
Washer 32x42x2,5 plastic Price: Call Us |
| 38 |
91410012S |
SPRING 3,8N/MM SET D=4,9MM Price: Call Us |
| 38 |
91410013S |
SPRING 4,0N/MM SET D=5,0MM Price: Call Us |
| 38 |
91410014S |
SPRING 4,2N/MM SET D=5,0MM Price: Call Us |
| 38 |
91410015S |
SPRING 4,4N/MM SET D=5,1MM Price: Call Us |
| 38 |
91410016S |
SPRING 4,6N/MM SET Price: Call Us |
| 39 |
48600021 |
Spring retainer 33,5x43x3 Price: Call Us |
| 40 |
48600525 |
Spring retainer 12,3x19x1,25 r Price: Call Us |
| 42 |
48600830S |
SCREW SLEEVE M27X0,8 Price: Call Us |
| 43 |
48600299 |
O-ring 6x1,2 NBR70 Price: Call Us |
| 44 |
48600511S |
Spring (13,9) 17-32 rebound cp This part replaces 48600511. Price: Call Us |
| 45 |
48600576 |
Tap 6x46 rebound Price: Call Us |
| 47 |
48600382 |
Spring (11,4) 0,4-8 valve Price: Call Us |
| 51 |
48601625 |
Piston ring 21x23x5 This part replaces 48600455. Price: Call Us |
| 52 |
48600575 |
Piston 6,07x22,7x13 Price: Call Us |
| 55 |
40540486 |
Nut M6x0,5 h6,5 WAF10 rebound Price: Call Us |
| 57 |
48600764 |
Adapter 23x28x70 Price: Call Us |
| 58 |
48600763 |
Tube 23x350 Price: Call Us |
| 59 |
48600048 |
O-ring 46x2 NBR70 siliconized Price: Call Us |
| 60 |
48600860SA2 |
AXLE CLAMP L/S + TUBE CPL. This part replaces 48600860SA. Price: Call Us |
| 61 |
48600861S1 |
AXLE CLAMP R/S + TUBE CPL. 09 Price: Call Us |
| 62 |
0025080256 |
HH collar screw M8x25 Price: Call Us |
| 63 |
48600163 |
Nut valve M6x0,5 h6,5 WAF17 Price: Call Us |
| 64 |
48600202 |
Spring (8,5) l6,5 valve Price: Call Us |
| 69 |
48600586S3 |
Compression, cmpl. This part replaces 48600586S. Price: Call Us |
| 71 |
48600047 |
Piston 6x27,8x9 compression Price: Call Us |
| 72 |
46811499 |
O-ring 21x2 NBR70 Price: Call Us |
| 73 |
35480320 |
O-ring 24x2 NBR70 Price: Call Us |
| 81 |
48600004 |
Copper disc 29,5x33,5x1 Price: Call Us |
| 82 |
48600141 |
Rubber cap 35x10 NBR80 Price: Call Us |
| 83 |
48601166S1 |
Fork Fluid Viscosity 4.0 5L This part replaces 48600765S1. Price: Call Us |
| 85 |
48600431S2 |
PRE-LOAD ADJ. M51X1,5 09 Price: Call Us |
| 86 |
48600036 |
Preload bush 42x26,5x2,5 Price: Call Us |
| 86 |
48600037 |
Preload bush 26,5x42x5 Price: Call Us |
| 86 |
48600038 |
Preload bush 26,5x42x10 Price: Call Us |
| 86 |
48600053 |
Preload bush 26,5x42x1,5 Price: Call Us |
| 98 |
T14034 |
Fuchs grease IPR (250g) This part replaces T511. Price: Call Us |
