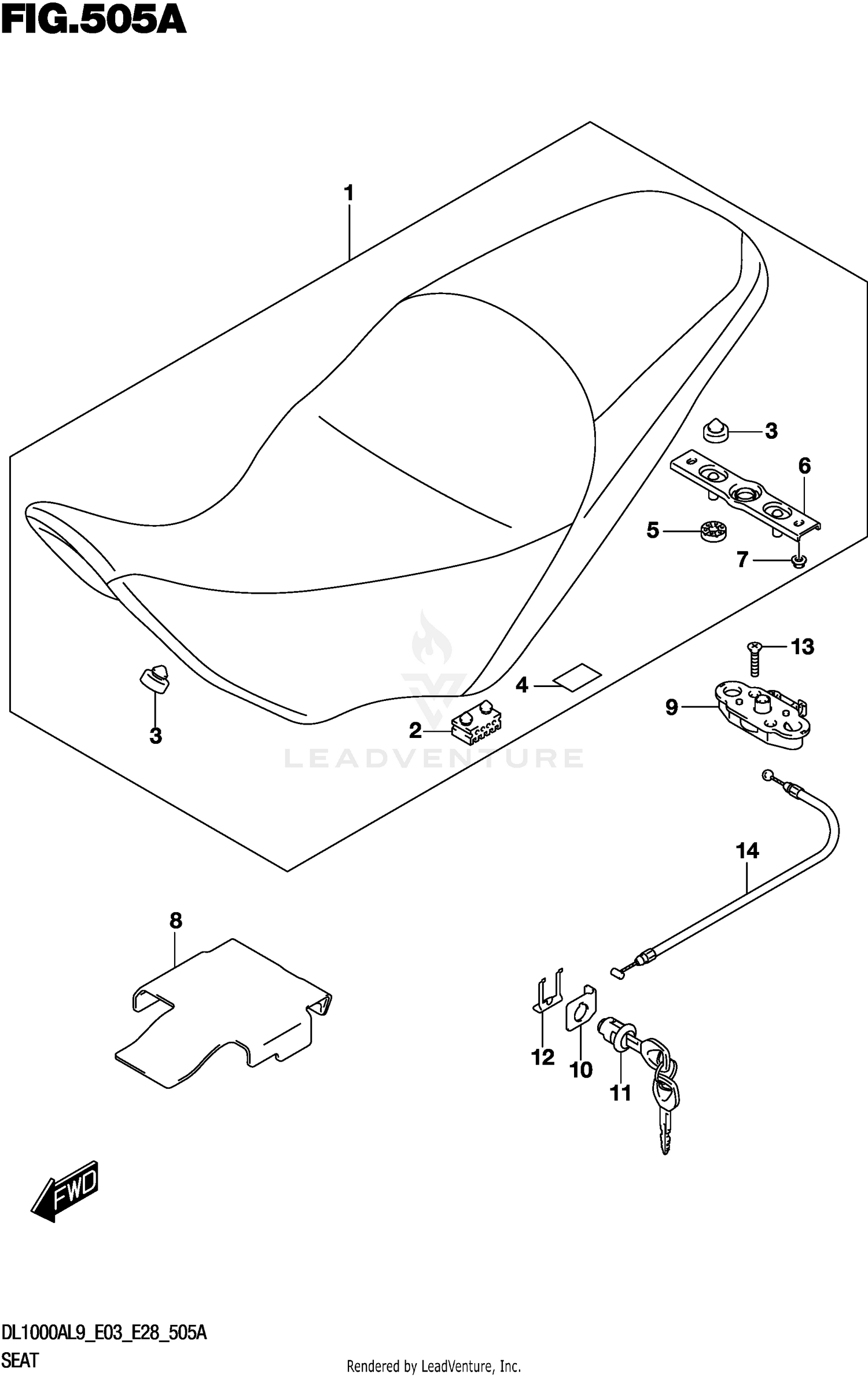

SEAT (DL1000XAL9 E03)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 09321-10012 | CUSHION Price: $3.36 |
| 4 | 94474-17H00 | PROTECTOR,COWL UNDER (30X20X0 Price: $4.96 |
| 7 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 8 | 45256-31J00 | SHEET, HEAT SHIELD RUBBER Price: $24.17 |
| 9 | 45220-47H00 | BRACKET,SEAT SUPPORT Price: $149.46 |
| 10 | 45288-14F00 | GUIDE,SEAT LOCK CABLE Price: $6.63 |
| 11 | 95700-14810 | LOCK SET, SEAT This part replaces 95700-14F00. Price: $132.54 |
| 12 | 45289-11F00 | PLATE,SEAT LOCK ASSY Price: $7.66 |
| 13 | 02122-0630A | SCREW Price: $2.12 |
| 14 | 45280-18G01 | CABLE, SEAT LOCK Price: $26.01 |
