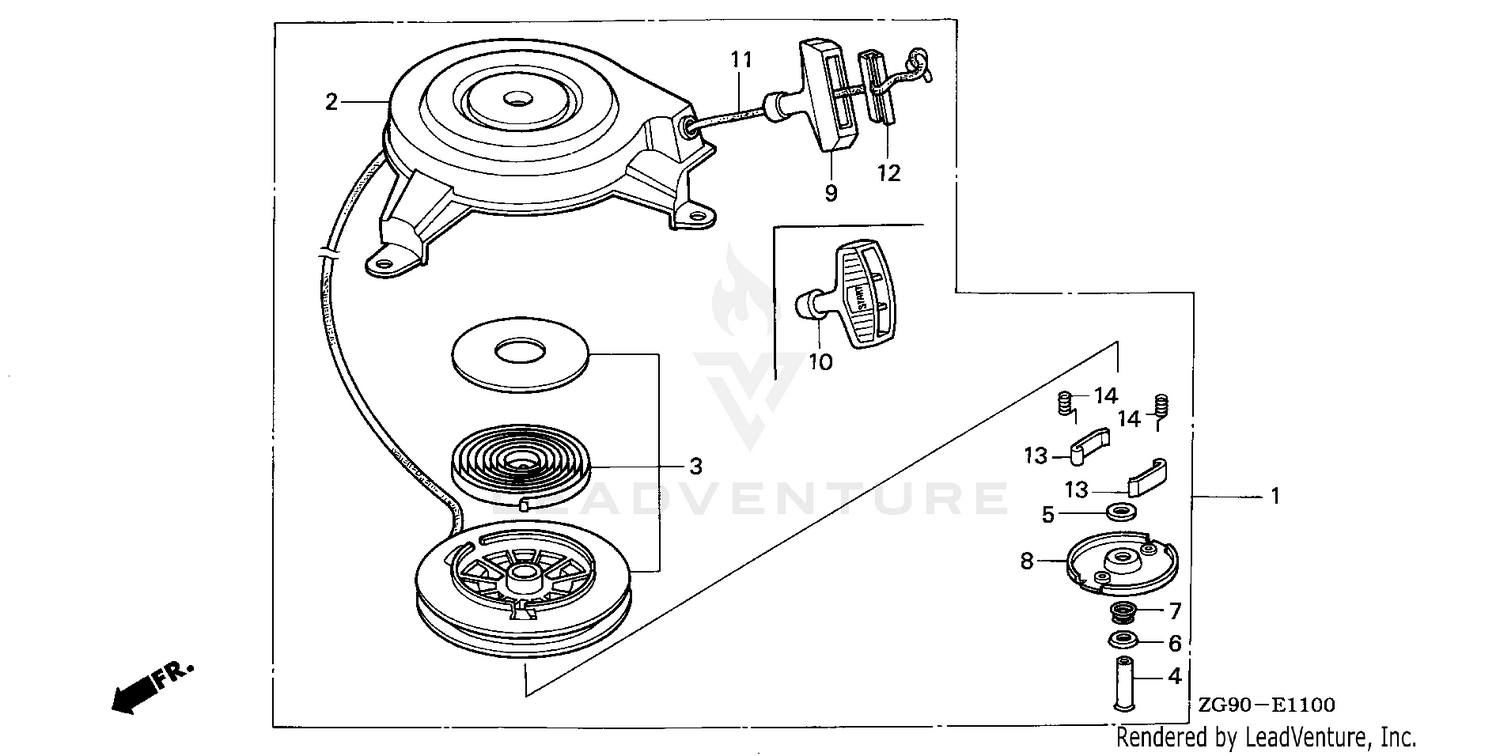

RECOIL STARTER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 28400-ZG9-803 | SEE PART DETAILS - PRI; STARTER ASSY., RECOIL Price: $167.12 |
| 2 | 28402-ZG9-802 | HOUSING ASSY. (NA USE ALT:28400-ZG9-803) Price: Call Us |
| 3 | 28415-ZG9-802 | PULLEY & SPRING ASSY. Price: $19.60 |
| 4 | 28419-ZG9-802 | PIN, CENTER Price: $2.20 |
| 5 | 28431-ZG9-802 | PLATE A, FRICTION Price: $5.66 |
| 6 | 28432-ZG9-802 | PLATE B, FRICTION (NOT AVAILABLE) Price: $6.10 |
| 7 | 28441-ZG9-802 | SPRING, FRICTION Price: $3.14 |
| 8 | 28444-ZG9-802 | RETAINER Price: $2.68 |
| 9 | 28461-ZE6-T02 | HANDLE Price: $5.42 |
| 11 | 28462-ZG9-802 | ROPE, RECOIL STARTER (#4X85") Price: $10.50 |
| 12 | 28463-ZE6-T02 | HANDLE, REINFORCEMENT Price: $4.68 |
| 13 | 28485-ZE6-T02 | RATCHET, STARTER Price: $5.36 |
