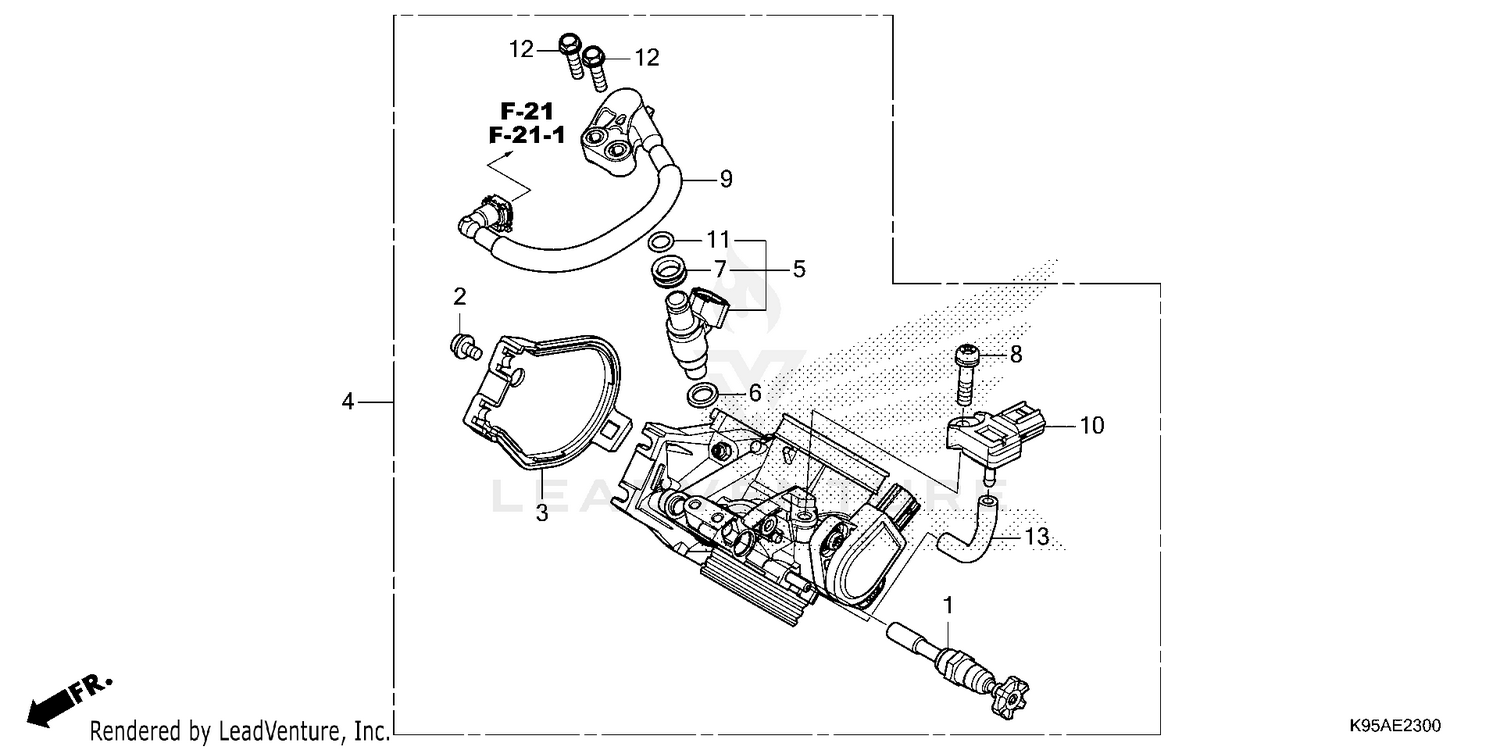

THROTTLE BODY
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16046-MKE-AF1 | VALVE, STARTER Price: $56.09 |
| 2 | 16080-HP1-601 | BOLT, COVER Price: $5.11 |
| 3 | 16157-MEN-A31 | COVER, BODY Price: $20.16 |
| 4 | 16400-K95-AA1 | BODY ASSY., THROTTLE Price: $768.64 |
| 5 | 16450-MEN-A51 | INJECTOR ASSY., FUEL Price: $172.95 |
| 6 | 16472-MCW-000 | SEAL RING, INJECTOR Price: $2.73 |
| 7 | 16473-P7A-004 | CUSHION RING, INJECTOR Price: $8.65 |
| 8 | 16542-MEN-A41 | SCREW-WASHER (6X25) Price: $3.67 |
| 9 | 17640-MKE-AF1 | HOSE, FUEL FEED Price: $94.76 |
| 10 | 46401-TM8-A01 | SENSOR A, MASTER POWER PRESSURE Price: $212.30 |
| 11 | 91301-P7A-004 | O-RING (7.8X1.9) Price: $4.22 |
| 12 | 93401-05020-00 | BOLT-WASHER (5X20) Price: $1.42 |
