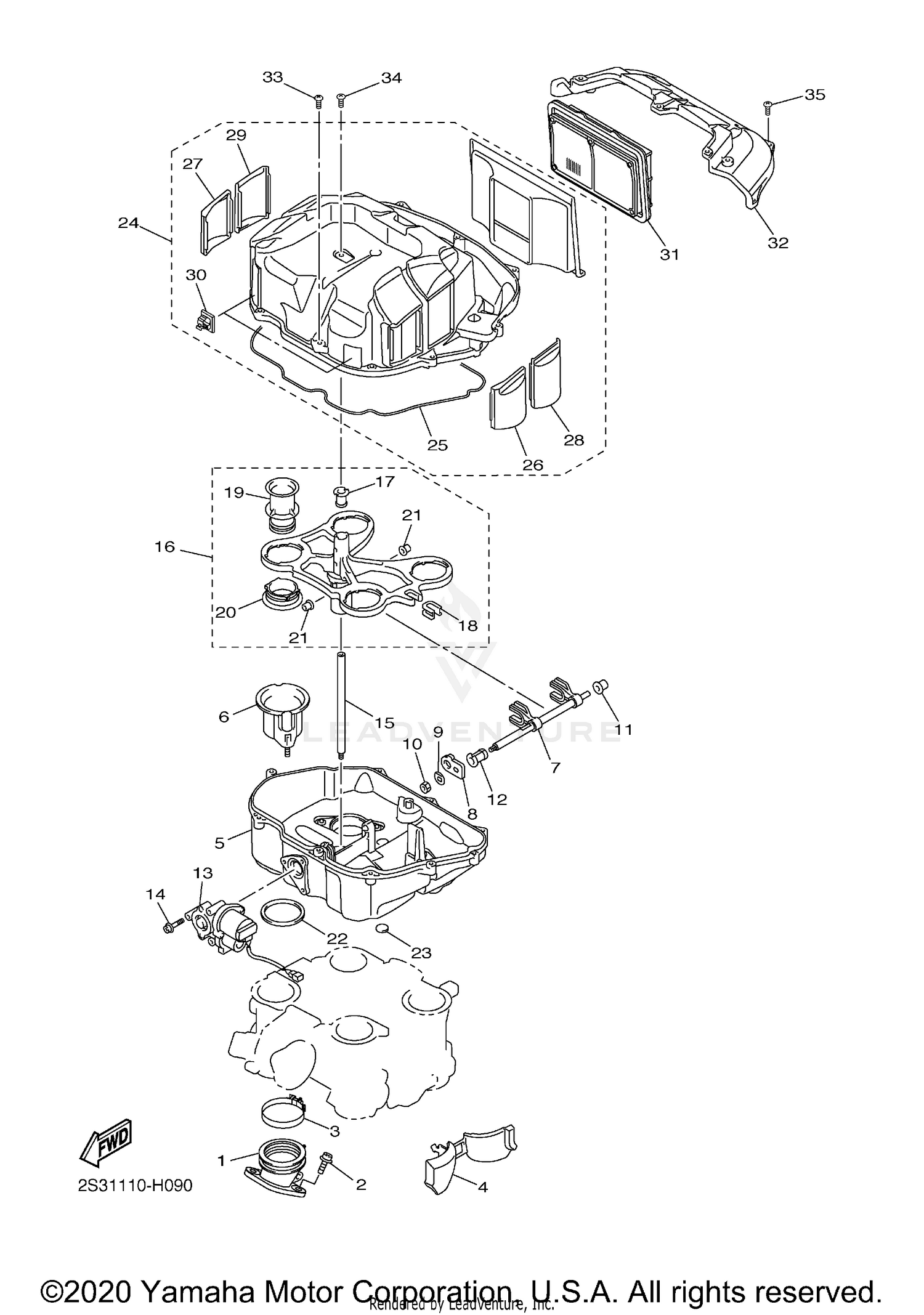

| Ref | Part Number | Description |
|---|
| 1 |
2S3-13586-00-00 |
JOINT, CARBURETOR 1 Price: $88.99 |
| 2 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91312-06020-00. Price: $2.65 |
| 3 |
2S3-11387-01-00 |
CLAMP, HOSE 1 Price: $20.99 |
| 4 |
2S3-13564-00-00 |
COVER, MANIFOLD Price: $46.99 |
| 5 |
2S3-14411-00-00 |
CASE, AIR CLEANER 1 Price: $144.99 |
| 6 |
2S3-1440B-00-00 |
JOINT ASSY Price: $15.49 |
| 7 |
2S3-1445B-00-00 |
LEVER 1 Price: $72.99 |
| 8 |
2S3-14548-00-00 |
PIN, FLOAT ARM Price: $4.90 |
| 9 |
2S3-14475-00-00 |
WASHER Price: $3.60 |
| 10 |
95380-06700-00 |
NUT This part replaces 95302-06700-00. Price: $9.49 |
| 11 |
90381-06002-00 |
BUSH, SOLID Price: $3.80 |
| 12 |
2S3-1449B-00-00 |
BUSH, 3 Price: $20.99 |
| 13 |
2S3-85870-00-00 |
GEARED MOTOR COMP. 2 Price: $394.99 |
| 14 |
90110-05045-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.75 |
| 15 |
2S3-14434-00-00 |
SEPERATOR, OIL Price: $41.99 |
| 16 |
2S3-14459-00-00 |
HOLDER, GUIDE Price: $266.99 |
| 17 |
2S3-1447B-00-00 |
BUSH 1 Price: $10.49 |
| 18 |
2S3-14473-00-00 |
GUIDE Price: $18.49 |
| 19 |
2S3-14479-00-00 |
FUNNEL Price: $15.49 |
| 20 |
2S3-13631-00-00 |
SEAL, RUBBER 1 Price: $27.99 |
| 21 |
90381-08001-00 |
BUSH, SOLID Price: $6.49 |
| 22 |
2S3-14416-00-00 |
GASKET, AIR CLEANER Price: $16.49 |
| 23 |
2S3-1442F-00-00 |
PROTECTOR Price: $6.99 |
| 24 |
2S3-14408-00-00 |
AIR FILTER CASE COMP. Price: $280.99 |
| 25 |
2S3-14452-00-00 |
SEAL Price: $35.99 |
| 26 |
2S3-1441A-00-00 |
COVER, CLEANER CASE 1 Price: $17.49 |
| 27 |
2S3-1441E-00-00 |
COVER, CLEANER CASE 2 Price: $17.49 |
| 28 |
2S3-1442A-00-00 |
COVER, CLEANER CASE 3 Price: $18.49 |
| 29 |
2S3-1442E-00-00 |
COVER, CLEANER CASE 4 Price: $26.99 |
| 30 |
90464-14002-00 |
CLAMP Price: $4.70 |
| 31 |
2S3-14451-01-00 |
ELEMENT, AIR CLEANER This part replaces 2S3-14451-00-00. Price: $68.99 |
| 32 |
2S3-14437-01-00 |
DUCT This part replaces 2S3-14437-00-00. Price: $70.99 |
| 33 |
98902-05020-00 |
SCREW, BIND Price: $1.85 |
| 34 |
90154-05037-00 |
SCREW, BINDING Price: $1.55 |
