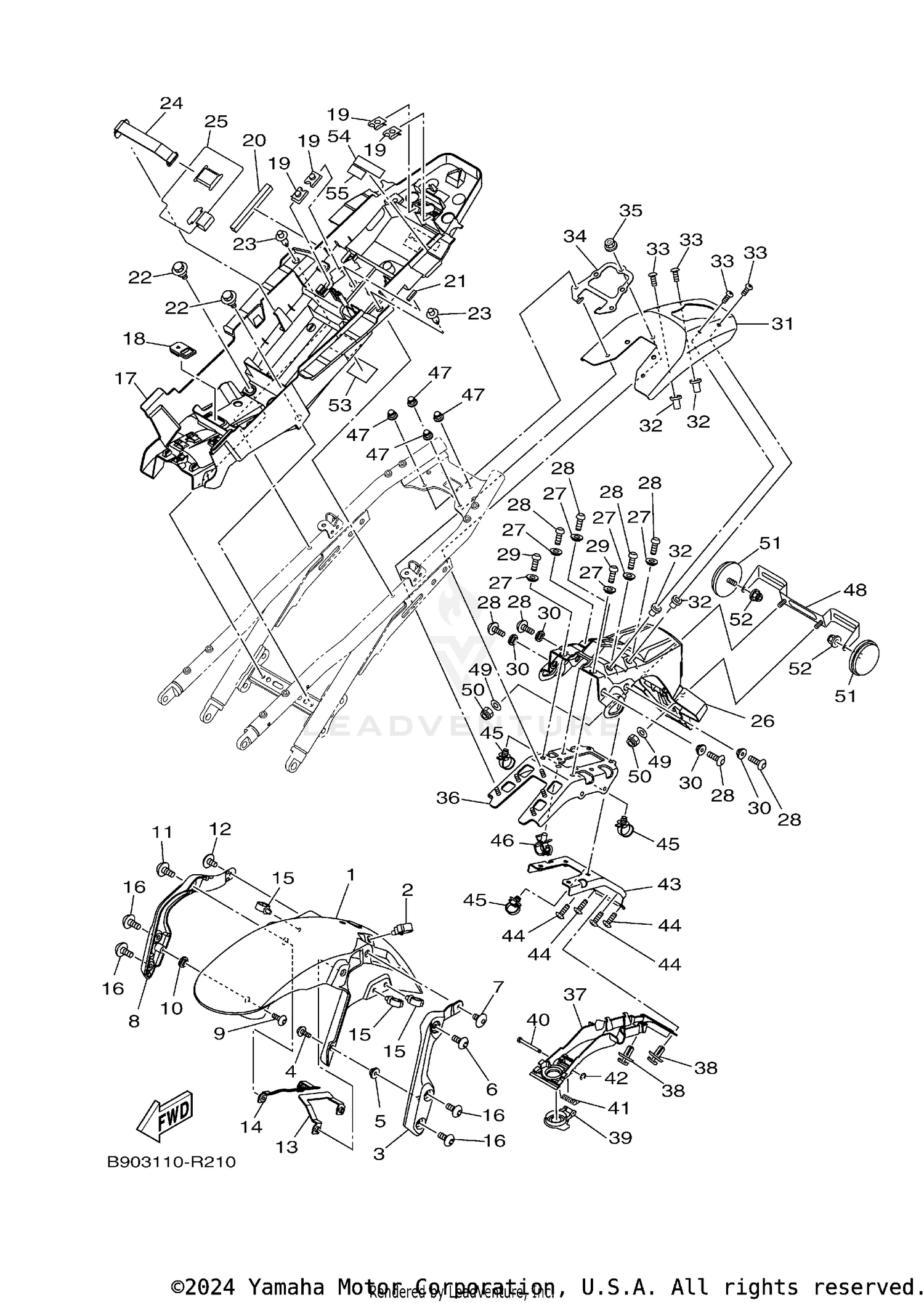

| Ref | Part Number | Description |
|---|
| 2 |
90464-16012-00 |
CLAMP Price: $8.49 |
| 3 |
B90-23361-00-00 |
ARM 1 Price: $75.99 |
| 4 |
92017-05014-00 |
BOLT, BUTTON HEAD Price: $4.60 |
| 5 |
90387-05021-00 |
COLLAR Price: $9.49 |
| 6 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 7 |
90110-06102-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.35 |
| 8 |
B90-23371-00-00 |
ARM 2 Price: $99.99 |
| 9 |
92017-05014-00 |
BOLT, BUTTON HEAD Price: $4.60 |
| 10 |
90387-05021-00 |
COLLAR Price: $9.49 |
| 11 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 12 |
90110-06102-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.35 |
| 13 |
B90-21513-00-00 |
STAY, FENDER 1 Price: $31.99 |
| 14 |
B90-21514-00-00 |
STAY, FENDER 2 Price: $35.99 |
| 15 |
90464-18002-00 |
CLAMP Price: $9.49 |
| 16 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 17 |
B90-8212B-00-00 |
BOX, BATTERY 1 Price: $66.99 |
| 18 |
2DR-26199-00-00 |
PLUG, BLIND Price: $7.99 |
| 19 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 20 |
32D-84553-00-00 |
DAMPER Price: $7.49 |
| 21 |
4B5-21717-00-00 |
DAMPER Price: $3.65 |
| 22 |
90109-06202-00 |
BOLT Price: $3.10 |
| 23 |
90269-07007-00 |
RIVET Price: $4.40 |
| 24 |
1RC-82137-00-00 |
BAND, BATTERY Price: $7.49 |
| 25 |
B90-21691-00-00 |
FLAP Price: $8.49 |
| 26 |
B90-21629-00-00 |
GUARD, MUD Price: $28.99 |
| 27 |
90387-06040-00 |
COLLAR Price: $12.49 |
| 28 |
92017-06016-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 29 |
92012-06016-00 |
BOLT, BUTTON HEAD This part replaces 90111-06104-00. Price: $9.49 |
| 30 |
90387-06242-00 |
COLLAR Price: $7.49 |
| 32 |
90179-05523-00 |
NUT Price: $7.49 |
| 33 |
2CR-28333-00-00 |
BOLT Price: $5.99 |
| 34 |
B90-21998-00-00 |
SPACER Price: $26.99 |
| 35 |
95707-06500-00 |
NUT, FLANGE Price: $1.00 |
| 36 |
B90-2164F-00-00 |
STAY 1 Price: $66.99 |
| 37 |
B90-2163E-01-00 |
COVER REAR FENDER 2 This part replaces B90-2163E-00-00. Price: $13.49 |
| 38 |
90269-07076-00 |
RIVET Price: $8.49 |
| 39 |
1RC-2465B-01-00 |
CAP, ROTOR This part replaces 1RC-2465B-00-00. Price: $4.55 |
| 40 |
90249-03002-00 |
PIN Price: $5.49 |
| 41 |
90508-09007-00 |
SPRING, TORSION Price: $2.75 |
| 42 |
93430-02001-00 |
CIRCLIP, E-TYPE Price: $9.49 |
| 43 |
B90-21682-00-00 |
STAY, PLATE Price: $31.99 |
| 44 |
90160-05012-00 |
SCREW, ROUND TAPPING Price: $8.49 |
| 45 |
90464-30011-00 |
CLAMP Price: $2.70 |
| 46 |
90464-14013-00 |
CLAMP Price: $3.85 |
| 47 |
90176-06016-00 |
NUT, CAP Price: $4.20 |
| 48 |
1RC-84751-10-00 |
BRACKET, LICENSE Price: $45.99 |
| 49 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 50 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 51 |
449-85131-02-00 |
REFLECTOR, REAR 1 Price: $33.99 |
| 52 |
95707-05500-00 |
NUT, FLANGE Price: $9.49 |
| 53 |
14B-21668-01-00 |
LABEL, TIRE This part replaces 14B-21668-00-00. Price: $3.65 |
| 54 |
3JJ-28446-A2-00 |
LABEL, CAUTION This part replaces 3JJ-28446-A1-00. Price: $4.95 |
