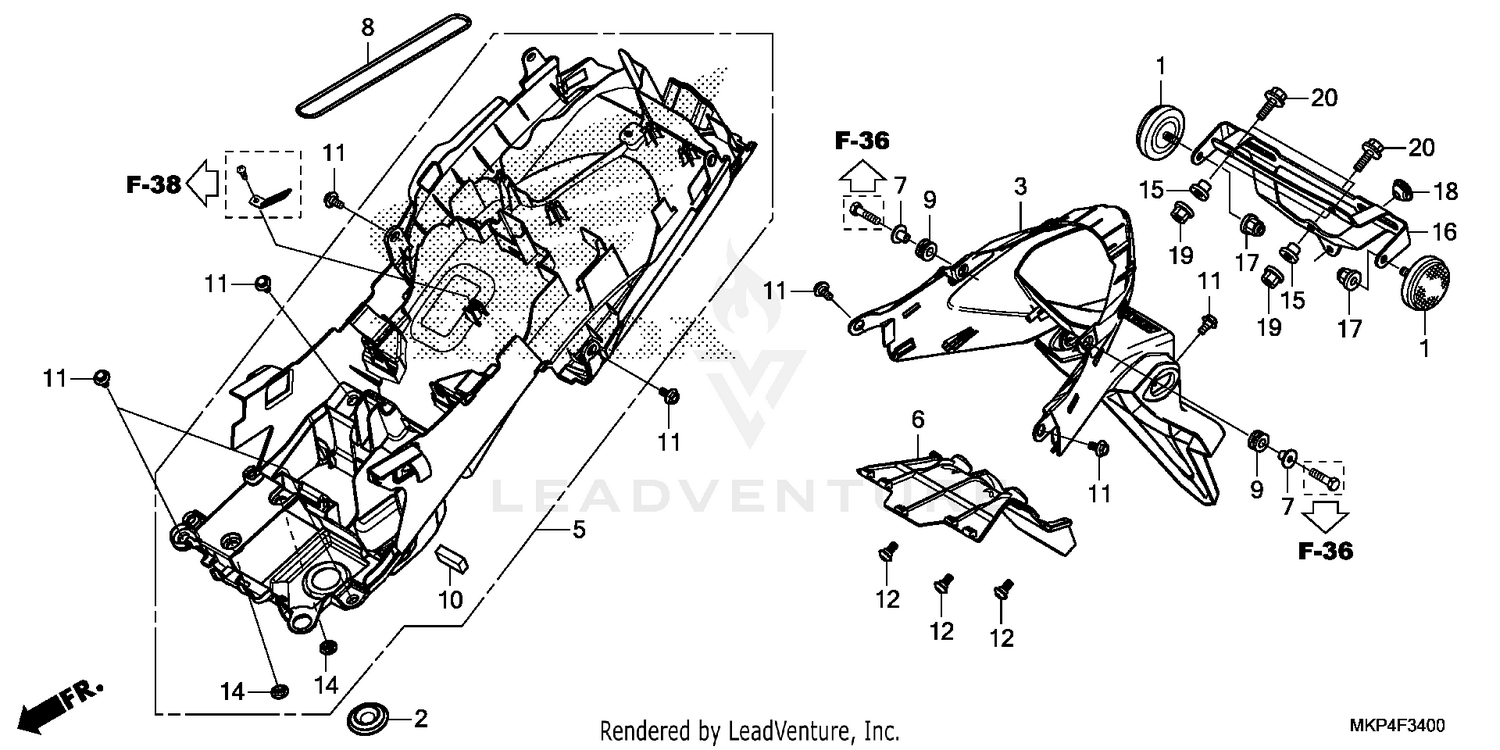

| Ref | Part Number | Description |
|---|
| 1 |
33741-HB9-641 |
REFLECTOR, RR. REFLEX (RED) Price: $16.07 |
| 2 |
64285-MKP-J00 |
GROMMET, PANEL (INNER) Price: $1.47 |
| 3 |
80100-MGZ-J01ZA |
FENDER SET A, RR. (TYPE1) (WL) Price: $16.29 |
| 5 |
80104-MKP-J80 |
FENDER ASSY. B, RR. Price: $44.27 |
| 6 |
80106-MGZ-J00 |
COVER, RR. FENDER Price: $8.27 |
| 7 |
80113-MGZ-J00 |
COLLAR, TAILLIGHT Price: $2.20 |
| 8 |
80123-KPP-900 |
BAND, TOOL Price: $1.02 |
| 9 |
83545-KCJ-690 |
RUBBER, SIDE COVER Price: $1.60 |
| 10 |
83705-MT3-300 |
RUBBER, SIDE COVER SPONGE Price: $4.25 |
| 11 |
90111-MKP-DN0 |
BOLT, FLANGE (6MM) Price: $1.22 |
| 12 |
90127-MKN-D50 |
SCREW, SPECIAL (6X14) Price: $1.53 |
| 14 |
90503-MJE-D40 |
COLLAR, MOUNTING Price: $3.45 |
| 15 |
44125-MN5-000 |
COLLAR, FR. WHEEL COVER (FOR RR.) Price: $6.42 |
| 16 |
84700-KYJ-920 |
BRACKET, NUMBER PLATE Price: $19.11 |
| 17 |
90301-KGH-901 |
NUT, U (6MM) (FUJI SEIMITSU) Price: $1.58 |
| 18 |
90852-446-630 |
PLUG, HOLE Price: $2.93 |
| 19 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
